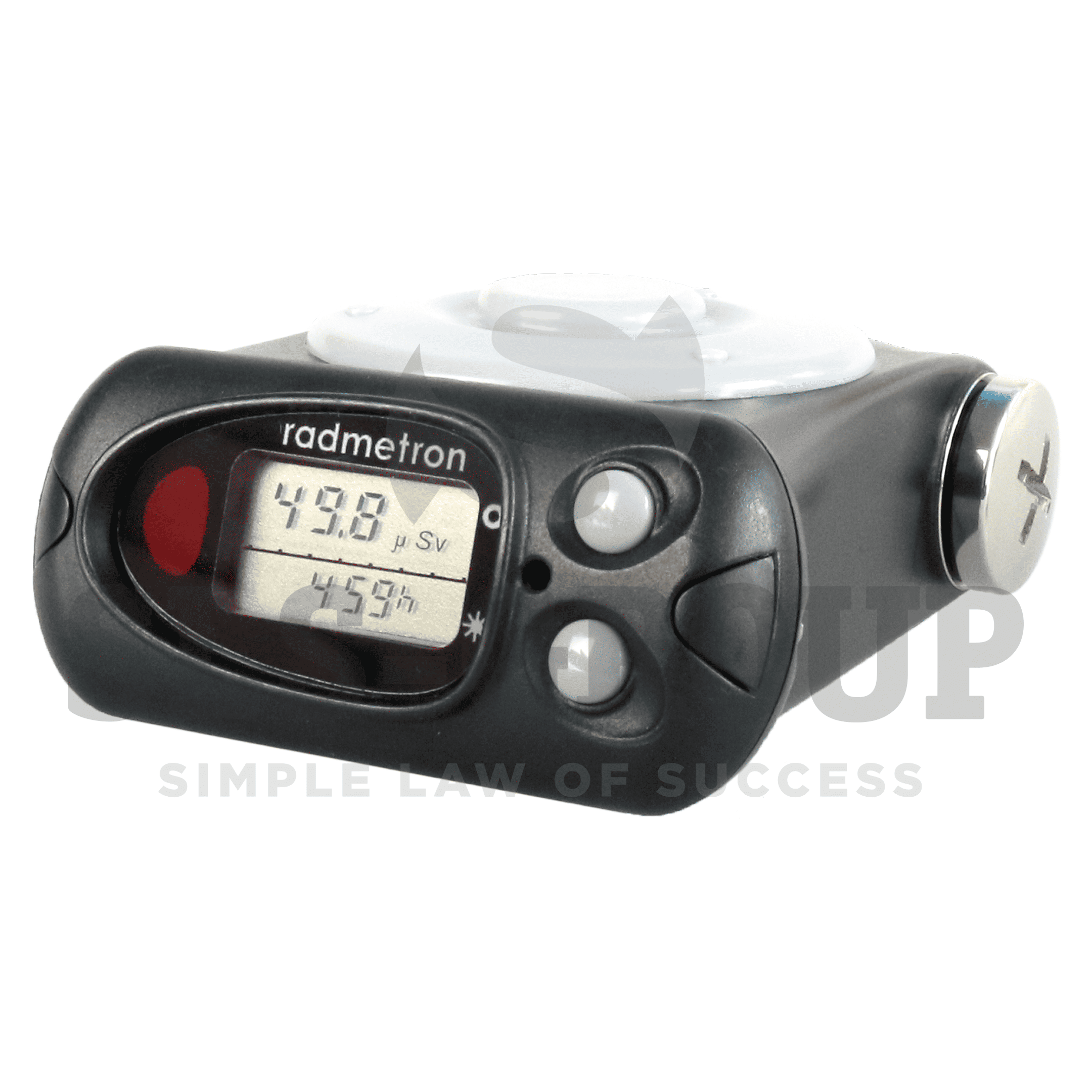

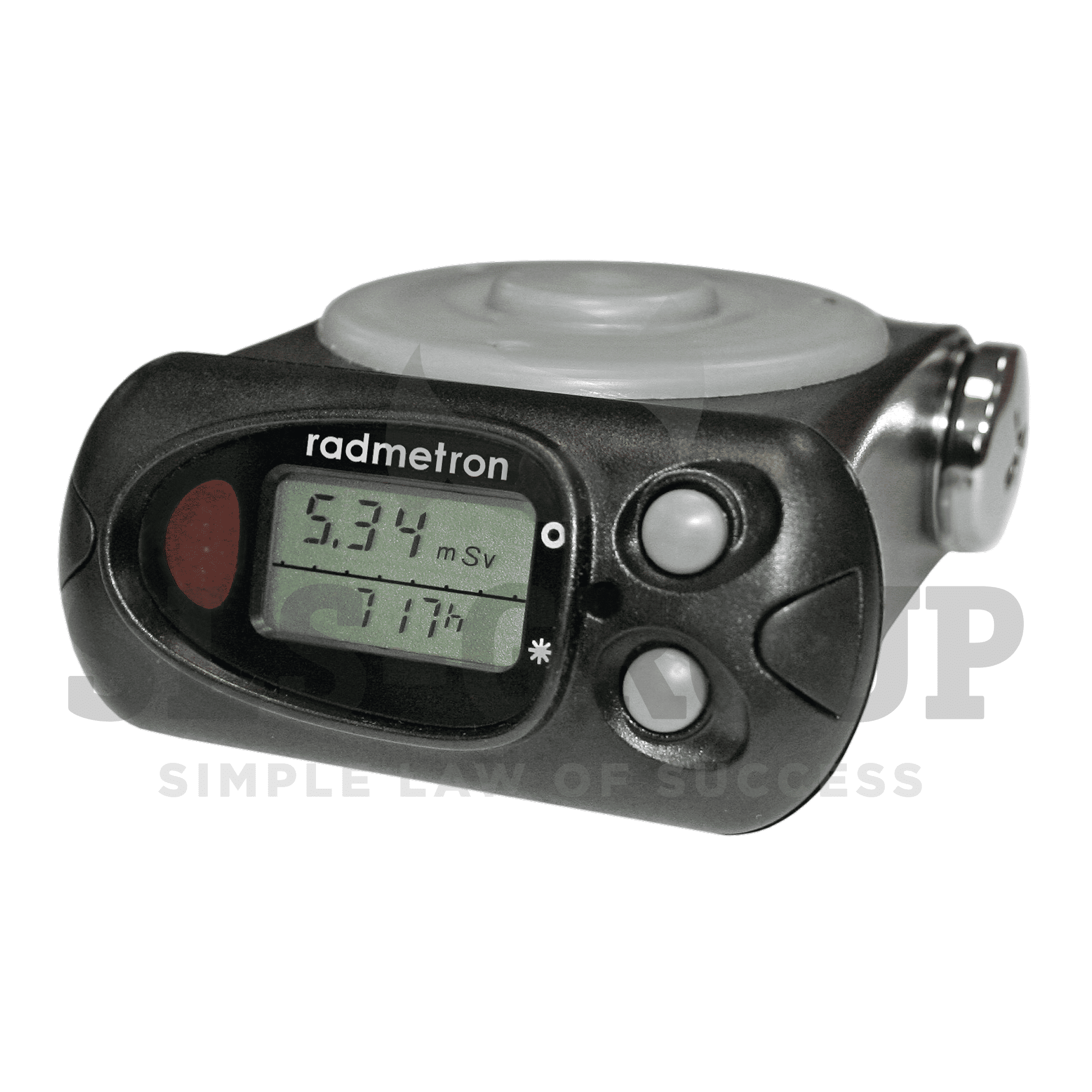

Individual dosimeter of X-ray and gamma radiation DKG-RM 1621
A dosimeter with a radiation source search function provides continuous round-the-clock monitoring of the radiation situation.
The DKG-RM 1621 dosimeter is used stand-alone or as part of the client’s operating system for emergency and routine dosimetry monitoring.
Purpose of the dosimeter DKG-RM 1621:
- measurement of equivalent radiation dose;
- measurement of individual equivalent dose rate of X-ray and gamma radiation;
- search for radioactive and nuclear materials;
- measurement of accumulation time.
Features of "DKG-RM 1621"
- combines the functions of a dosimeter and a search device;
- two independent alarm thresholds for dose and dose rate;
- sound, light and vibration alarm;
- non-volatile memory – storing up to 1000 measurement history events;
- sealed shockproof housing (IP67);
- simplicity and ease of use - two button control;
- wide energy range and dose rate measurement range;
- connection with a personal computer using an IR interface for further processing and analysis.
- light weight and dimensions.
Scope of application of the DKG-RM 1621 dosimeter:
- Medicine.
- Customs and border services.
- Emergency services.
- Environmental monitoring.
- Nuclear energy.
- Industry.
- Science and education.
- Police.
Available modifications of the DKG-RM1621 dosimeter:
- DKG-RM1621A – extended range of dose equivalent rate measurements up to 1 Sv/h in the energy range from 10 keV to 20 MeV (DKG-RM1621 – up to 100 mSv/h);
- DKG-RM1621M – search mode available;
- DKG-RM1621MA – combines all the functions of previous models.
Performance and technical characteristics (TTX): Individual dosimeter for x-ray and gamma radiation DKG-RM 1621
| Detector | Geiger-Muller counter |
| Equivalent dose rate (EDR) measurement range | from 0.1 μSv/h to 100 mSv/h |
| DER threshold setting range | Two threshold levels throughout the entire DER measurement range |
| Limit of permissible main relative error of DER measurement | ± (15+0.0015/Ḣ)% – where Ḣ – dose rate in mSv/h |
| Equivalent dose (ED) indication range | from 0.01 µSv to 9.99 Sv |
| Limit of permissible basic relative error of DE measurement | ± 15% |
| Range of recorded energies | 10 keV to 20 MeV |
| The energy dependence of the dosimeter indicators relative to the energy of 0.662 MeV (Cs-137) does not exceed: | ±30% |
| Maintaining performance after short-term exposure for 5 minutes to gamma radiation of the maximum permissible dose rate: | 100 Sv/h |
| Response time for abrupt changes in DER | 5s – with increase |
| Housing protection degree | IP67 |
| The device is resistant to falling onto a concrete floor from a height | 1.5 m |
| Alarm type | visual, sound, vibration |
| Exchange of information with PC | IR |
| Battery | One AA battery |
| Low battery indicator | LCD display |
| Time of continuous operation of the device from one battery under normal conditions | 12 months |
| Dimensions | 87x72x39 mm |
| Weight no more | 185 |
| Operating temperature range | – 40 to + 60 °C |
| Relative humidity | up to 98% at 35°C |
| Atmospheric pressure | from 84 to 106.7 kPa |
Designed to meet ANSI N42.20 – 2006 and IEC 61526: 2010, IP 67 (IEC 60529) standards
