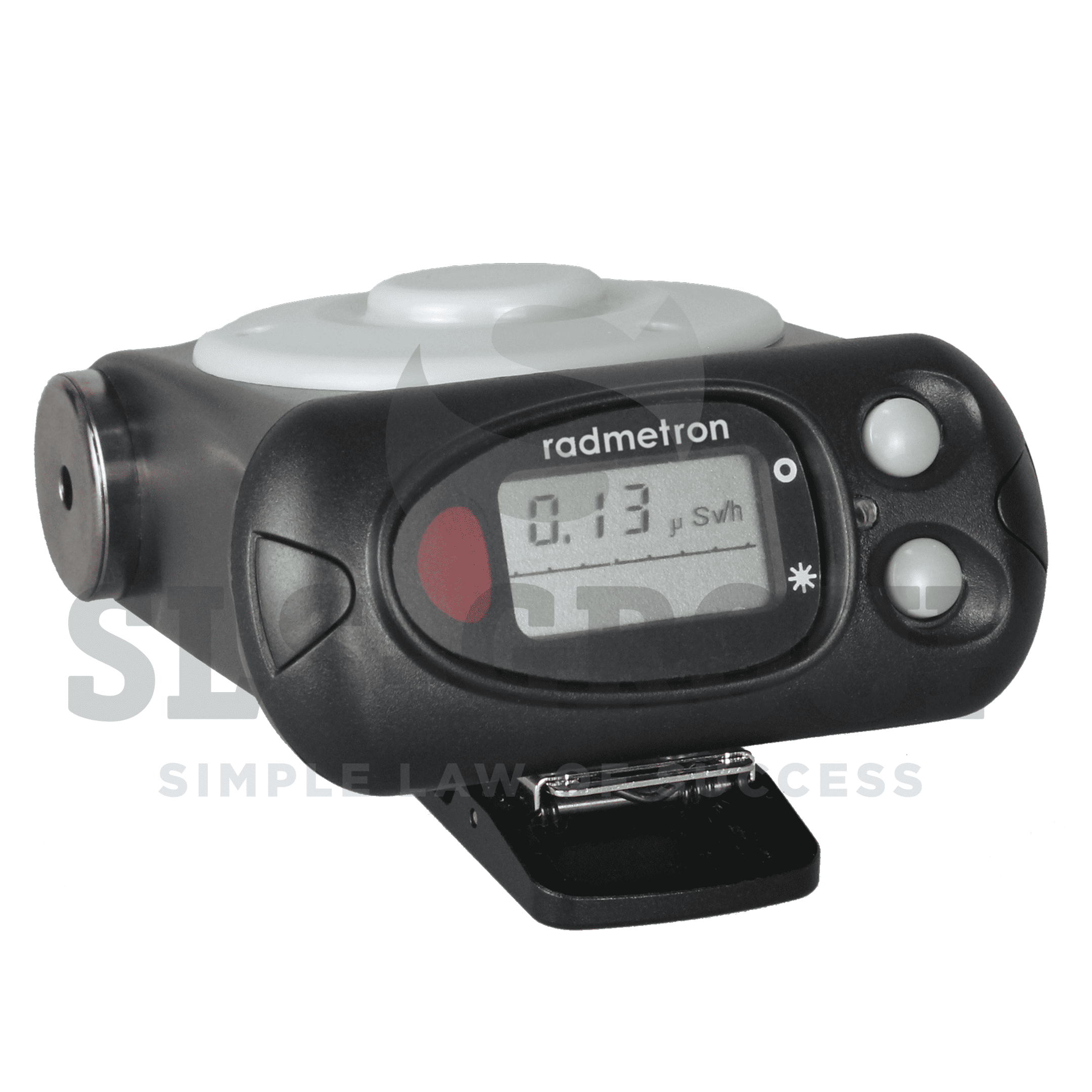

Individual dosimeter of X-ray and gamma radiation DKG-RM1621MA
Dosimeter DKG-RM1621MA is a professional device that measures the equivalent dose and power of X-ray or gamma radiation. The main difference between the DKG-RM1621MA dosimeter and other models is the combination of functions of an individual and search device. From the search device, the Geiger counter took on the functions of searching, detecting, and localizing radioactive and nuclear materials.
The DKG-RM1621MA model is used to monitor the radiation situation and prevent personnel from radiation contamination.
The differences between the PM1621MA and PM1621M devices lie in the extended range for measuring the biological effect of irradiation.
Peculiarities:
– two independent alarm thresholds for equivalent and dosage power;
– vibration, sound, light alarms;
– wide range of recorded energies;
– extended ranges for measuring equivalent dose and dosage rate;
Applications:
- Medicine.
- Customs and border control.
- Individual radiation safety.
- Nuclear industry enterprises.
- Enterprises for processing and transportation of products containing radioactive materials.
- Environmental monitoring.
Performance and technical characteristics (TTX): Individual dosimeter for x-ray and gamma radiation DKG-RM1621MA
| Name: | Meaning: |
| Detector | Geiger-Muller counter |
| Measuring range: | |
| Equivalent dose | 0.01 µSv ÷ 10 Sv |
| Equivalent dose rates | 0.1 µSv/h ÷ 1 Sv/h |
| Display range: | |
| Equivalent dose | 0.01 µSv ÷ 10 Sv |
| Equivalent dose rates | 0.01 μSv/h ÷ 2 Sv/h |
| Limit of permissible basic relative measurement error: | |
| Equivalent dose | No more than ± 15% |
| Continuous equivalent dose rates and average equivalent dose rates of pulsed photon radiation | No more than ± (15+K1/H+K2⋅H) %, where H is the equivalent dose rate |
| Energy range of photon radiation | 10 keV ÷ 20 MeV |
| Energy dependence relative to energy 0.662 MeV: | no more than ± 30% |
| Threshold setting range | Throughout the entire range of ED and DER |
| Alarm type | Visual, sound, vibration |
| Housing protection degree | IP67 |
| Operating temperature range | – 40 ÷ +60 °C |
| Nutrition | 1 AA, voltage 1.5 V |
| Average continuous operation time with one set of batteries | At least 12 months |
| PC connection | IR |
| Dimensions, weight | 87x72x39 mm, 165 g |
| Relative humidity | Up to 98% at 35°C |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
