Portable X-ray fluorescence analyzer "MetExpert"

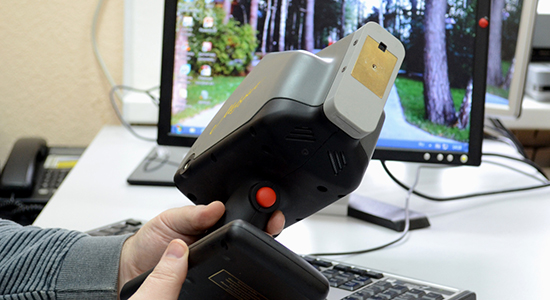

Metexpert device
The portable analyzer "MetExpert" is needed to determine the chemical composition of various materials. The device can detect a wide range of elements - from sodium to americium, covering the range of atomic numbers from 11 to 95. The X-ray fluorescence device can analyze substances regardless of their state of aggregation - be it solids, powders or liquids.
"MetExpert" is of particular value when working with metal alloys, including aluminum, magnesium, and stainless steel compositions, as well as when studying structural materials. All measurements of mass fractions of elements are carried out according to approved methods.
Design
The MetExpert device includes several key components:
- detector unit;
- X-ray source;
- battery;
- spectrometric module;
- communication control unit;
- display panel.
Based on expert opinion No. 140-13 (dated July 10, 2013), as well as according to provisions 1.7-1.8 OSPORB-99/10, the device does not require special licensing and can be operated without additional radiation monitoring and control.
It is a complete measurement system in which all elements work as a single unit for XRF analysis of materials.
The innovative MetExpert analyzer was created taking into account the requirements for ergonomics and functionality. Its equipment includes a photo relay, a Bluetooth port and a special measuring camera. Particular attention is paid to the materials of the case - it is made of modern polymer alloys.
Comfort of use is ensured by a well-thought-out design: anti-slip rubber elements on the handle guarantee a secure grip when working. The device is equipped with a multifunctional stand, which ensures the stability of the device, and at the same time serves as a battery compartment.
The hot-swap power supply system allows you to replace the battery without stopping the current study, which significantly improves work efficiency.
Operating principle
Determination of the chemical composition of a substance occurs thanks to a unique calculation method based on non-standard fundamental parameters. This method allows you to calculate the percentage of each element through analysis of the intensity of the characteristic radiation.

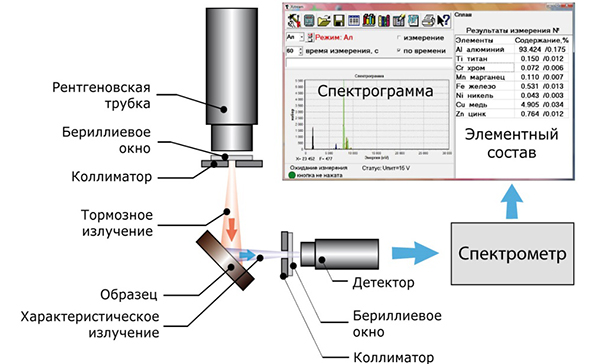

The analysis process begins with the generation of primary X-ray radiation by a special tube of the device. When this radiation hits the material under study, secondary fluorescence occurs. The specificity of this secondary radiation directly depends on the elemental composition of the sample - each chemical element gives its own characteristic spectral response.
The portability of the device, combined with the accuracy of measurements, makes this analyzer an indispensable tool for quickly determining the composition of materials.

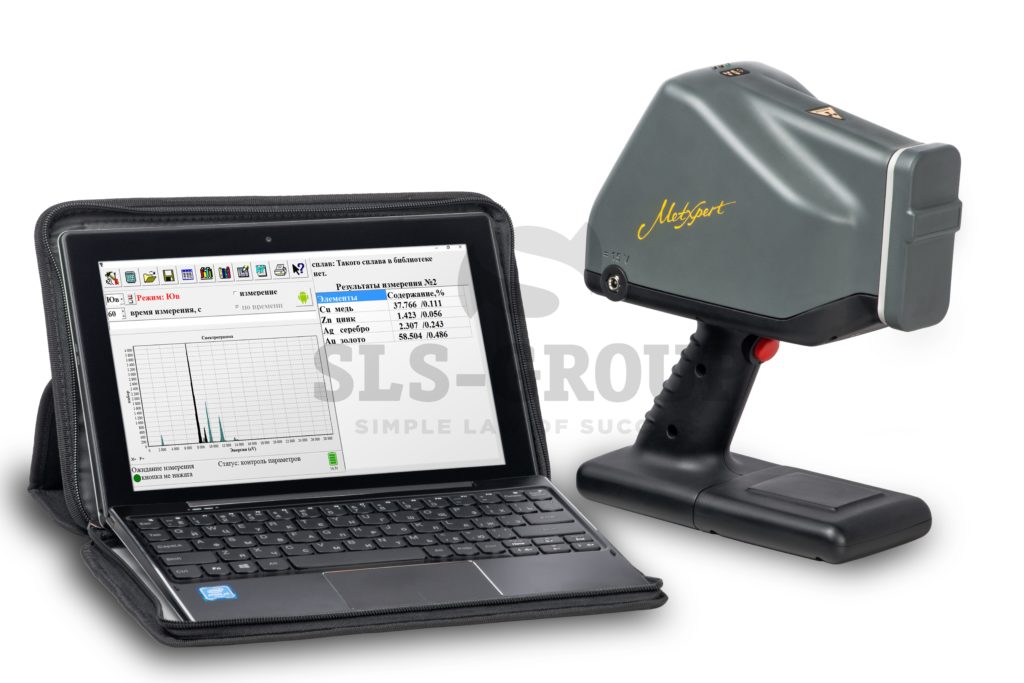

Thanks to its compact design in the form of a single module, MetExpert is a mobile X-ray fluorescence analyzer that can be easily moved between locations. Highly accurate measurements are available in factory premises and mobile laboratories or on site.
The integrated software solution controls the parameters of the spectrometer and the radiation source and provides comprehensive data processing. The system includes functions for electronic calibration, creation of reference databases and visualization of results on the screen. The software package allows you to accumulate data sets, analyze them, and form analytical conclusions based on comparison of measurements.
Application
MetExpert is a portable XRF analyzer that provides users with many practical advantages. The device is successfully used to monitor industrial waste and its movement across the borders of the Russian Federation. Its functionality fully complies with the norms and laws, including Resolution No. 442 of July 17, 2003 “On the transboundary movement of waste,” as well as regulations governing the transportation of hazardous and non-hazardous waste across the customs border.
The MetExpert analyzer impresses with its technical characteristics. The device is capable of operating in extreme temperature conditions from minus 35 to plus 45 degrees Celsius, and its powerful battery provides continuous operation for up to 8 hours. The device is equipped with a Windows tablet with a large screen and supports wireless connection to various devices.
Particularly valuable is the analyzer’s ability to determine a wide range of chemical elements - from light sodium to heavy americium. The manufacturer provides detailed documentation on quantitative analysis methods and guarantees technical support.
The analyzing equipment of the MetExpert line are portable X-ray fluorescent devices with advanced technical capabilities. The device operates from an electrical network with parameters of 220V/50Hz, consuming only 35 VA of power. When used autonomously, the built-in 12V battery provides continuous operation for up to 8 hours.
A special feature of the device is quick preparation for work, taking no more than 5 minutes. The duration of the analysis is flexibly adjusted by a specialist depending on the specifics of the material being studied and the size of the analyzed surface.

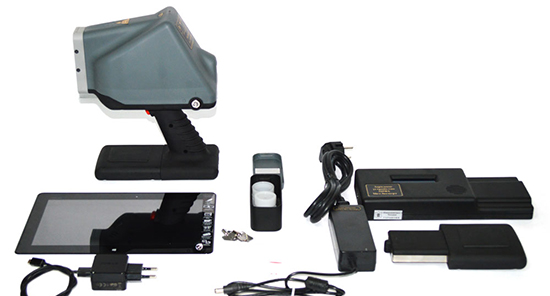

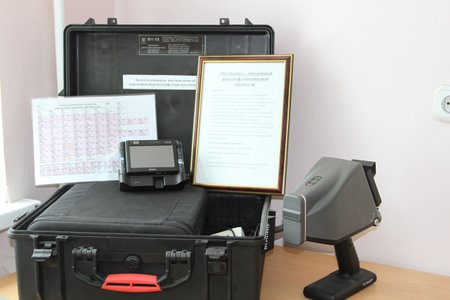

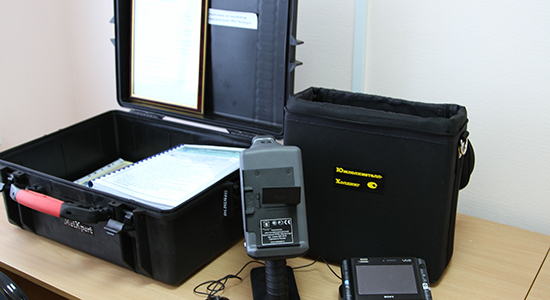

The basic delivery of the MetExpert analyzer includes:
- main unit with built-in X-ray source;
- advanced spectrometric module;
- communication unit with a pre-installed control system.
The package also includes a Windows tablet, proprietary software from the manufacturer "MetExpert", rechargeable batteries and a USB port for connecting additional equipment.
The delivery package of the MetExpert analyzer includes an extensive set of accompanying materials. Among them are presented guidelines for the quantitative and qualitative determination of chemical elements.
The basic package includes computer peripherals (mouse), a protective case, replacement components for the analyzer, and a set of tools with additional accessories. The kit also includes a complete package of technical documentation.
The device is accompanied by a full set of permits: user manual, test reports, results of dosimetric checks, as well as SES certificates. All measurement methods are described in detail in the instructions, and the list of documentation is presented in a special statement. The instructions can be downloaded from the Khimexpert portal - the official website of the manufacturer.
The complete set of the MetExpert X-ray fluorescence device includes a set of standards in accordance with GOST and an expanded set of necessary components. Additional equipment includes power supply systems: a backup built-in source, a spare battery, a charger for the PRFA and a power supply for the tablet.
Technical features
The portable X-ray fluorescence analyzer (XRF) “MetExpert” has useful technological properties.
| Coverage of charge numbers of the atomic nucleus | from 11(Na) to 95(Am) Total 80 |
| The degree of identification of elements, as a percentage of the mass fraction, no more than: | |
| sodium, magnesium, aluminum, silicon | 0.20 |
| from phosphorus to molybdenum | 0.020 |
| from silver to americium | 0.050 |
Metrology
The following table presents the characteristics of the measuring instruments used in the MetExpert analyzer.
| Measurement limits, as a percentage of the mass fraction of the element | Absolute measurement error, %. |
| “All elements” function | |
| 0.2-1.0 inclusive | 0.10 |
| more than 1.0 up to 10.0 inclusive | 0.50 |
| more than 10.0 to 100.0 | 0.70 |
| Measuring function for nickel-containing alloys and stainless steels For Ti, V, Cr, Mn, Co, Ni, Mo and W | |
| 1.0 – 40.0 inclusive | 0.50 |
| more than 40.0 up to 80.0 inclusive | 0.70 |
General characteristics
These analyzers of the MetExpert series have the following parameters:
- You can enter the measurement mode in 5 minutes;
- the period of each measuring session is determined by the operator, based on the specific sample and analysis area;
- power – 35 Volt-Amp;
- mains voltage 0 220 volts;
- network frequency 50 Hz;
- battery voltage – 12 volts;
- MetExpert operating session lasts 8 hours on one battery charge;
- the maximum dose, subject to operating conditions and safety precautions, is up to 1.0 μSv/h;
- compact dimensions – 200x95x260 mm;
- weight – 2 kg.
All parameters are made in accordance with GOST 22261-84.
Special devices are provided for working with different types of samples:
- calibration tool;
- container for analyzing liquids and powders;
- polyester film.
Safety is ensured by a metal protective device. The set also includes a set of special keys for maintenance of the device.
In addition to the main functionality, the MetExpert system can be equipped with a number of auxiliary software tools. Among them is an electronic reference book that automates the process of recognizing metals and their alloys.
An important component is the encoding program, which allows you to verify the compliance of the characteristics of the samples with their declared composition. To generate documentation, it is possible to install special software that ensures prompt transfer of information to office formats.
Operational safety is ensured by the Zaslon complex, which monitors and regulates the level of hazardous waste during equipment operation.
The device complies with GOST 22261-84 standards and has the following characteristics:
- safe radiation level does not exceed 1.0 μSv/h with proper operation;
- The dimensions of the device are 200x95x260 mm with a weight of only 2 kilograms.
The basic delivery of the MetExpert analyzer includes:
- main unit with built-in X-ray source;
- advanced spectrometric module;
- communication unit with a pre-installed control system.
The package also includes a Windows tablet, proprietary software from the manufacturer "MetExpert", rechargeable batteries and a USB port for connecting additional equipment.
The delivery package of the MetExpert analyzer includes an extensive set of accompanying materials. Among them are presented guidelines for the quantitative and qualitative determination of chemical elements.
The basic package includes computer peripherals (mouse), a protective case, replacement components for the analyzer, and a set of tools with additional accessories. The kit also includes a complete package of technical documentation.
The device is accompanied by a full set of permits: user manual, test reports, results of dosimetric checks, as well as SES certificates. All measurement methods are described in detail in the instructions, and the list of documentation is presented in a special statement. The instructions can be downloaded from the Khimexpert portal - the official website of the manufacturer.
The complete set of the MetExpert X-ray fluorescence device includes a set of standards in accordance with GOST and an expanded set of necessary components. Additional equipment includes power supply systems: a backup built-in source, a spare battery, a charger for the PRFA and a power supply for the tablet.
Technical features
The portable X-ray fluorescence analyzer (XRF) “MetExpert” has useful technological properties.
| Coverage of charge numbers of the atomic nucleus | from 11(Na) to 95(Am) Total 80 |
| The degree of identification of elements, as a percentage of the mass fraction, no more than: | |
| sodium, magnesium, aluminum, silicon | 0.20 |
| from phosphorus to molybdenum | 0.020 |
| from silver to americium | 0.050 |
Metrology
The following table presents the characteristics of the measuring instruments used in the MetExpert analyzer.
| Measurement limits, as a percentage of the mass fraction of the element | Absolute measurement error, %. |
| “All elements” function | |
| 0.2-1.0 inclusive | 0.10 |
| more than 1.0 up to 10.0 inclusive | 0.50 |
| more than 10.0 to 100.0 | 0.70 |
| Measuring function for nickel-containing alloys and stainless steels For Ti, V, Cr, Mn, Co, Ni, Mo and W | |
| 1.0 – 40.0 inclusive | 0.50 |
| more than 40.0 up to 80.0 inclusive | 0.70 |
General characteristics
These analyzers of the MetExpert series have the following parameters:
- You can enter the measurement mode in 5 minutes;
- the period of each measuring session is determined by the operator, based on the specific sample and analysis area;
- power – 35 Volt-Amp;
- mains voltage 0 220 volts;
- network frequency 50 Hz;
- battery voltage – 12 volts;
- MetExpert operating session lasts 8 hours on one battery charge;
- the maximum dose, subject to operating conditions and safety precautions, is up to 1.0 μSv/h;
- compact dimensions – 200x95x260 mm;
- weight – 2 kg.
All parameters are made in accordance with GOST 22261-84.
Special devices are provided for working with different types of samples:
- calibration tool;
- container for analyzing liquids and powders;
- polyester film.
Safety is ensured by a metal protective device. The set also includes a set of special keys for maintenance of the device.
In addition to the main functionality, the MetExpert system can be equipped with a number of auxiliary software tools. Among them is an electronic reference book that automates the process of recognizing metals and their alloys.
An important component is the encoding program, which allows you to verify the compliance of the characteristics of the samples with their declared composition. To generate documentation, it is possible to install special software that ensures prompt transfer of information to office formats.
Operational safety is ensured by the Zaslon complex, which monitors and regulates the level of hazardous waste during equipment operation.
Tactical and technical characteristics of the MetExpert analyzer (TTX):
| Range of atomic numbers of determined chemical elements | Z=11(Na)…95(Am) |
| Number of chemical elements determined (search and identification), including simultaneously | 80 (Na, Mg, Al, Si, P, S, Cl, K, Ca, Sc, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, As, Se, Br, Rb, Sr, Y, Zr, Nb, Mo, Ru, Rh, Pd, Ag, Cd, In, Sn, Sb, Te, I, Cs, Ba, La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu, Hf, Ta, W, Re, Os, Ir, Pt, Au, Hg, Tl, Pb, Bi, Po, At, Ac, Fr, Ra, Ac, Th, Pa, U, Np, Pu, Am) |
| Element detection threshold, mass fraction, %, no more | |
| Na, Mg, Al, Si | 0.2 |
| from P to Mo | 0.02 |
| from Ag to Am | 0.05 |
| Absolute measurement error in the “All elements” mode, mass fraction, %, in measurement ranges | |
| From 0.2 to 1.0% inclusive | ±0.10 |
| Over 1.0 to 10.0% inclusive | ±0.50 |
| Over 10.0 to 100.0% | ±0.70 |
| Absolute measurement error in the “Nickel-containing and stainless steels” mode (Ti, V, Cr, Mn, Co, Ni, Mo, W), mass fraction, %, in measurement ranges | |
| From 1.0 to 40.0 incl. | ±0.50 |
| Over 40.0 to 80.0 on | ±0.70 |
| Time to establish operating mode, min., no more | 5 |
| Measurement time (selected by the operator depending on the type of sample or area being analyzed), sec. | from 5 to 300 |
| Power consumption, no more, VA | 35 |
| Time of continuous autonomous operation with a standard set of batteries, hour, not less | 8 |
| Equivalent dose rate under normal operation conditions of the analyzer, at any accessible point at a distance of 0.1 meters from the surface of the analyzer, μSv/h, no more | 1.0 |
| Operating temperature range, °C | -35…45 |
| Overall dimensions (L×W×H), mm | 200×95×260 |
| Weight, kg, no more | 2.0 |
Documentation
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
