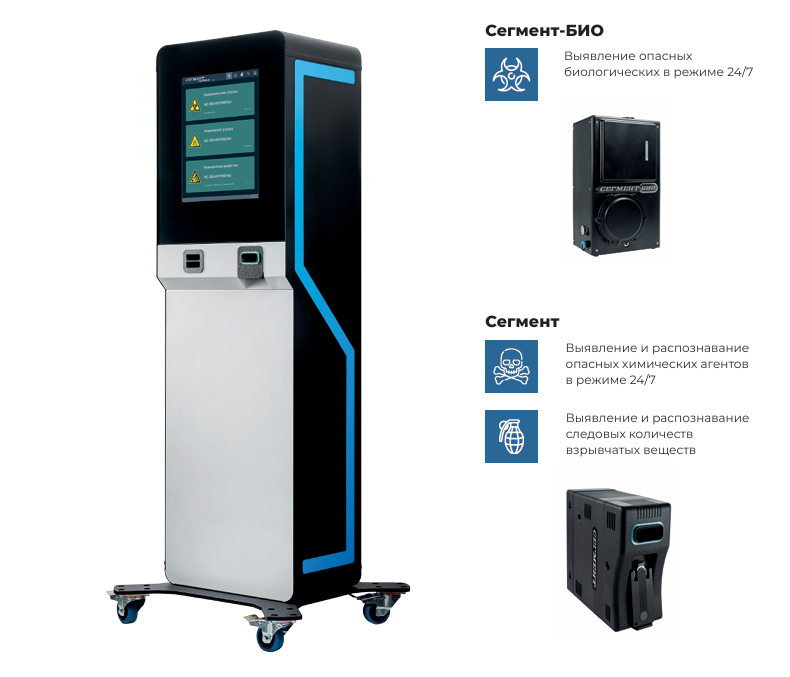

COMPLEX FOR DETECTION AND RECOGNITION OF EXPLOSIVES, HAZARDOUS CHEMICAL AND BIOLOGICAL AGENTS
Continuous monitoring of air in any premises for the detection (detection and identification) of explosives, hazardous chemical and biological agents.
General characteristics of the complex
| Order name | Complex for detection and recognition of explosives, hazardous chemical and biological agents "Segment Gamma" |
| Detection principle | bipolar ion mobility spectrometry |
| Probability of detecting biological aerosols in concentrations corresponding to the specified limits detection |
at least 95% |
| Probability of false detections of biological aerosols | no more than 5% |
| Operating temperature | from 0 to +30°C |
| Power supply | 220 V, 50 Hz or from batteries |
| Communication Interfaces | USB, Ethernet, Wi-Fi (optional) |
| Data format for logging and transmission | XML (optional) |
| Overall dimensions (DxWxH) | 700x600x1800 mm |
| Weight | no more than 140 kg |
| Power consumption | up to 500 W |
AUTOMATIC STATIONARY GAS DETECTOR “SEGMENT”
| Detection principle | bipolar ion mobility spectrometry |
| Detectable explosives | blasting and initiating, industrial and including: TNT, hexogen, PETN, homemade, DNT, nitroglycerin, EGDN, octogen, tetryl, trinitrophenol, ammonium nitrate, ASDT, dinitronaphthalene, acetone triperoxide, HMTD, as well as mixed explosives based on them (plastics, dynamites, gunpowder, etc.) |
| Detectable hazardous chemical agents | – emergency chemically hazardous substances: hydrogen sulfide, hydrogen chloride (hydrochloric acid), hydrogen fluoride (hydrofluoric acid), sulfur dioxide (sulfur dioxide), chlorine, ammonia, nitric acid. – chemical warfare agents: sarin, soman, VX (VX), mustard gas (mustard gas), lewisite, phosgene, diphosgene, hydrocyanic acid/cyanides. |
| Performance | no more than 5 s |
AUTOMATIC DETECTOR OF AEROSOLS OF BIOLOGICAL AGENTS “SEGMENT-BIO”
| Characteristic | Meaning |
| Detection principle | flow cytometry |
| Detectable biological hazards | any bioaerosols (airborne particles of toxins, bacteria and viruses) with a characteristic particle size of 1-10 microns |
| Detection limit of biological aerosols | 5-10-6 mg/l without interfering impurities |
| Performance | no more than 15 s |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
