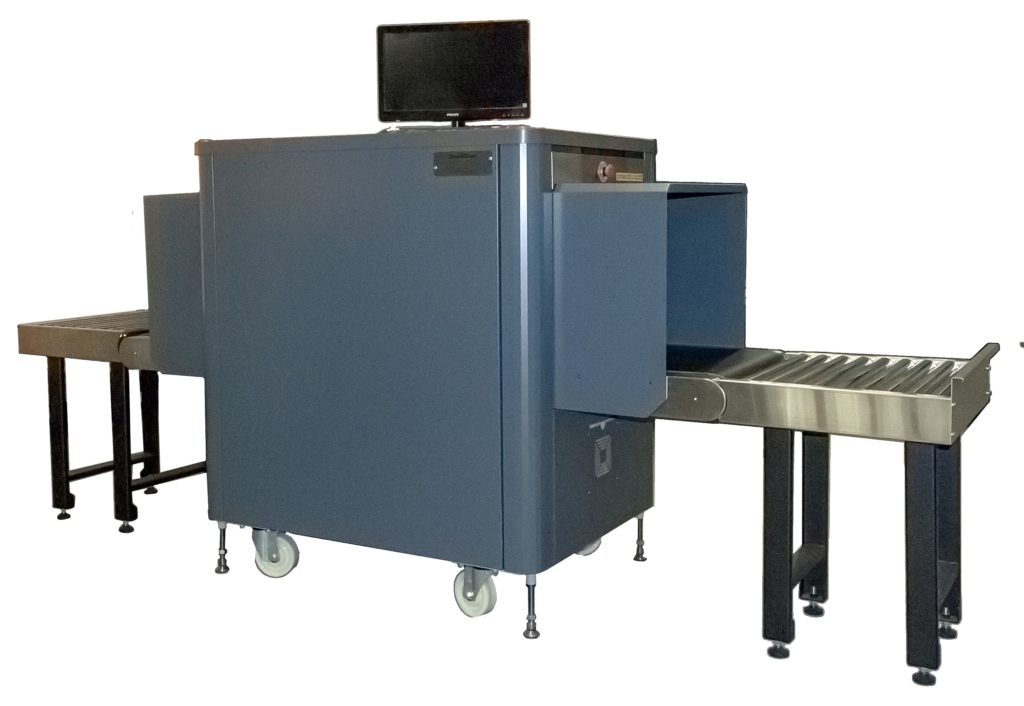

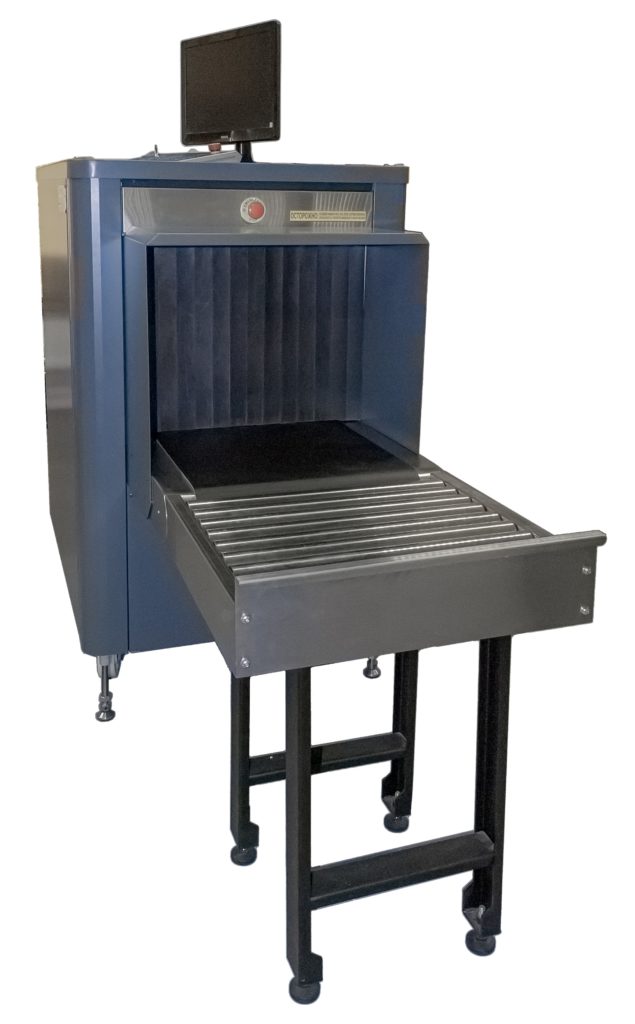

X-ray television installation (introscope) SmartScan XR 6045
The new brand of X-ray television equipment “SmartScan” is developed based on proven technology and adapted to the transport security requirements of the Russian Federation. Combines quality from leading manufacturers, proven by testing, and new solutions that ensure compliance with strict legal regulations.
A mobile installation for stationary use, designed for visual, non-contact control of various objects (parcels, luggage, goods and other items).
Dual-energy technology provides automatic color separation of materials with different atomic numbers and optical densities, allowing the operator to identify hazardous, undeclared or prohibited objects.
The installation identifies weapons, explosives, drugs, and other dangerous items that pose a threat to safety.
Performance characteristics (TTX):SmartScan XR 6045
| Specifications | |
| Dimensions of inspection tunnel (W×H), mm | 610×450 |
| Overall dimensions (L×W×H), mm | 2140 × 845 × 1325 |
| Weight, kg | 410 |
| Maximum distributed load on the conveyor, kg | 180 |
| Conveyor height, mm | 700 |
| Conveyor belt speed, m/s | 0.22 |
| Number of X-ray generators | 1 |
| Radiation direction | diagonally up |
| Anode voltage, kV | 160 |
| Detectivity on copper wire | 0.08 mm (40 AWG) |
| Penetration ability on steel | 34 mm guaranteed, 36 mm typical |
| Visible contrast levels, not less | 24 |
| Monitor and control | LCD monitor 21.5” (1920x1080) with a specialized keyboard or multi-touch LCD monitor 21.5” |
| Image archive | 50,000 images |
| Power supply | 230V±10%, 50Hz |
| Power consumption, no more, kVA | 0.9 |
| Ambient air temperature during operation, °C | from 0 to + 40 |
| Ambient air temperature during storage, °C | -10 to +50 |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
