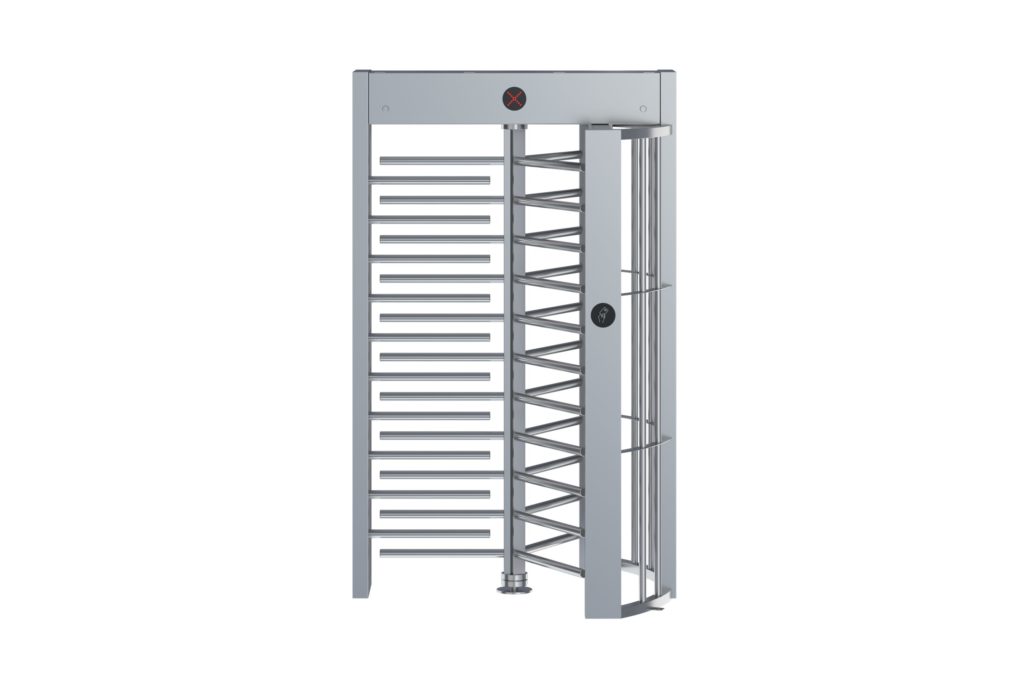

Turnstile FULL HEIGHT BLOCKPOST ST 1 series SPECTRUM Z
The single-aisle full-height turnstile BLOKPOST is designed to control and restrict people's access to a protected facility. Provides two-way traffic for entry and exit (alternately). Completely excludes unauthorized entry by jumping or climbing over the blades (bars), as well as the passage of two people at the same time. Can be used independently or as part of a modular design.
The turnstile is controlled by connecting to an access control system, built-in readers, or a remote control. The model of a full-height turnstile with a gate has a high throughput capacity (20-35 people/min), reverse blocking (reverse rotation of the leaves when the rotor is turned is prohibited), an automatic function for unlocking the rotor in emergency situations or power failure, and reduced energy consumption. And the technical capabilities of the device ensure correct integration into access control systems of any manufacturer.
Dimensions and operation of the turnstile
The full-height single-pass turnstile SPECTRUM is made of AISI 304 stainless steel, has anti-vandal protection and corrosion resistance. The turnstile can be used indoors or outdoors (under a canopy).
When arranging the entrance area, it is recommended to place full-height turnstiles parallel to each other in one line, both at a distance from each other and close to each other. A specially developed system for fastening turnstiles and modules together makes installation and installation much faster.
Advantages of the turnstile
The full-height single-pass turnstile SPECTRUM has dust and moisture protection properties (IP 54) and is resistant to external climatic factors. Thanks to the high degree of protection, the model can be used indoors or outdoors (under a canopy) in any weather.
Uncompromising protection - the carousel bars cover the entire opening (2100 x 600 mm). Lamellas and reinforcements provide rigidity and stability.
All-weather design - SUS 304 stainless steel construction is splash and dust resistant (IP 54), can be installed under a canopy (optional) in an open space.
Convenient control of a wired and wireless remote control; mechanical unlocking with keys is provided (separately for entry and exit).
Anti-panic mode (free passage) for evacuation. Forced blocking by a security guard. When the power supply is turned off, the rotor remains locked.
Light indication of direction and prohibition of passage.
Continuous installation of several turnstiles in a row without additional fencing through universal hatches.
Two EM-Marin, HID, Mifare card readers as standard. Possibility of adding fingerprint scanners, a metal detector, video recording and voice communication devices, and a battery for autonomous operation of the solenoid.
Motherboard with customization of the algorithm for the passage of incoming and outgoing visitors. A “dry contact” is provided, integration into the access control and management system via RS-282/485 protocols.
Three-piece collapsible rotor - compact dimensions of the wooden protective packaging reduce shipping costs.
System for connecting turnstiles and modules
To connect turnstiles and modules of the SPECTRUM series you must:
Remove the protective covers from the outside
Remove the protective hatches from the inside
Move the turnstiles close to each other
Fix the turnstiles together using bolts through the frame frame
Close the protective hatches on the inside
This fastening system reliably connects any turnstile or module of the SPECTRUM series, reduces installation time and gives a uniform look.
Complete solution with full-height turnstile
To ensure the greatest security at the checkpoint, we recommend using a complex of several full-height single-aisle SPECTRUM turnstiles, metal detectors, and X-ray television installations under a canopy. The metal detector provides control over the passage of metal objects by people passing through it. The stationary X-ray installation is designed to inspect personal belongings and examine individual items (parcels, parcels, hand luggage, etc.) in order to detect illegal attachments in them, such as explosive devices, bladed weapons and firearms and other items prohibited for transportation.
Layout of turnstiles and modules
Devices from the new series of turnstiles SPECTRUM from BLOKPOST are connected into a single network. They are equipped with universal hatches for quick, continuous installation, which eliminates the need to install additional fences when installing several turnstiles at once.
Operating the turnstile outdoors
When using the full-height single-aisle turnstile SPECTRUM outdoors, it is necessary to use a protective canopy. Such precautions protect the turnstile from direct exposure to moisture and various atmospheric precipitations, ensuring long-term stable operation of the device. Roof operation is allowed at ambient temperatures from -40°C to +55°C and air humidity up to 90%.
Integration into an access control system
The operation of the full-height single-pass turnstile SPECTRUM can be systematized using “dry contacts”, which allow you to connect the turnstile to a PC, as well as to metal detectors, introscopes, and thermal imagers. If the detector has recorded the fact that a person has a prohibited item, the access system device will block the passage. The full-height single-aisle turnstile SPECTRUM can be equipped with user recognition devices: barcode reader, card reader, palm/fingerprint scanner or face ID.
Storage and transportation
Transportation of a full-height turnstile is carried out in containers, railway cars, pressurized cabins of aircraft or by road. The device must be protected from moisture, dust and various precipitation, observing the rules for transporting goods. After transit of the turnstile, it must be kept indoors for at least 12 hours at an air temperature of -40 to +55 C and relative humidity up to 90%.
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
