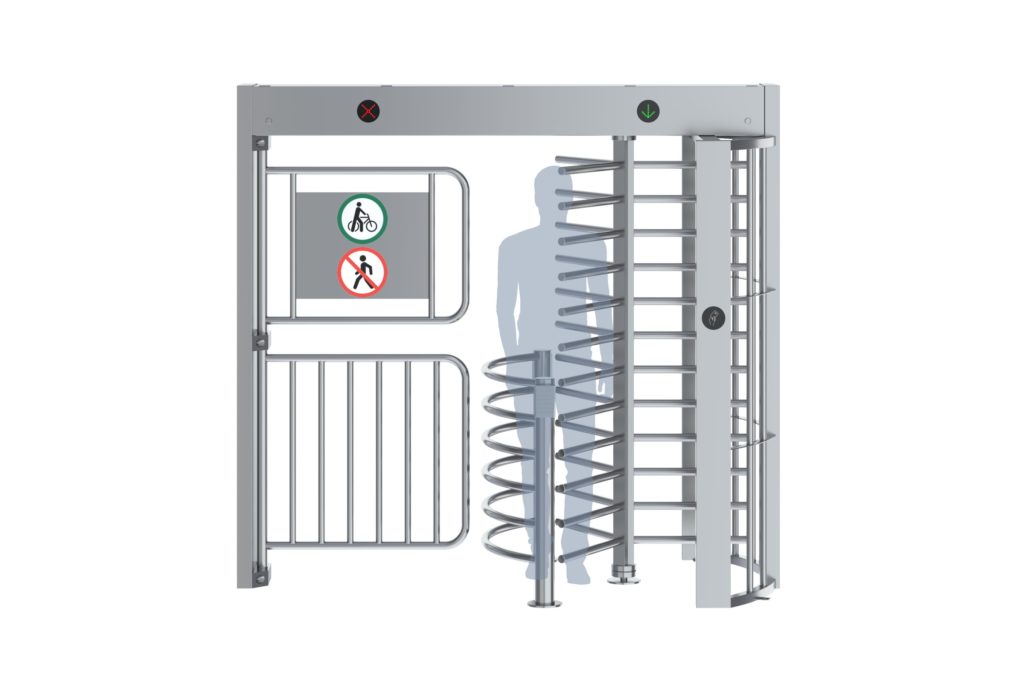

Turnstile FULL HEIGHT BLOCKPOST ST 3 series SPECTRUM Z
A single-pass full-height rotor turnstile with a side double gate is designed to control access of people with bicycles, empty strollers and hand luggage to the site. Provides alternate movement of entering and exiting visitors. Eliminates penetration under the blades, side passage and jumping over the “carousel”. The rotor drive and the lower part of the additional section are automatic, the upper flap has a manual lock.
The turnstile is controlled by connecting to an access control system, built-in readers, or a remote control. The model of a full-height turnstile with a gate has a high throughput capacity (20-35 people/min), reverse blocking (reverse rotation of the leaves when the rotor is turned is prohibited), an automatic function for unlocking the rotor in emergency situations or power failure, and reduced energy consumption. And the technical capabilities of the device ensure correct integration into access control systems of any manufacturer.
Dimensions and operation of the turnstile
The full-height turnstile with double gate SPECTRUM is made of AISI 304 stainless steel, has anti-vandal protection and corrosion resistance. The turnstile can be used indoors or outdoors (under a canopy).
Transportation of a full-height turnstile is carried out in containers, railway cars, pressurized cabins of aircraft or by road. The device must be protected from moisture, dust and various precipitation, observing the rules for transporting goods. After transit of the turnstile, it must be kept indoors for at least 12 hours at an air temperature of -40 to +55 C and relative humidity up to 90%.
When arranging the entrance area, full-height turnstiles are recommended to be placed parallel to each other in one line, either at a distance from each other or close to each other.
Advantages of the turnstile
A full-height single-rotor double-wicket turnstile provides reliable protection of passage rooms and entrance areas of street areas from unauthorized passage. Thanks to the high degree of protection, the model can be used indoors or outdoors (under a canopy) in any weather.
- An additional double section of gates with a width of 1 meter allows you to transport two-wheeled equipment, suitcases and boxes on trolleys on the side. The lower barrier is equipped with an electric drive, the upper one is opened with a key for carrying large cargo.
- Durable construction - rigid stainless frame with continuous welds, vandal-proof design, modern brushed metal appearance.
- IP 54 protection against dust and splashes - the turnstile can be installed both in buildings and outdoors under a canopy (purchased separately). The hinged cover for quick access to electronic components is equipped with a sealing contour.
- Security - evacuation mode and manual opening with keys (6 locks) in case of power failure (normal position - closed), light indication of the direction of passage. If there are frequent power outages, it is recommended to equip the system with additional battery.
- A ready-made solution for a checkpoint - the basic configuration includes two card readers and 2 remote controls (wireless and with a 10-meter cable).
- The ability to connect several modules into a single chain depending on the flow of visitors - technological (hatches) and software integration into the access control system is provided.
- Add. equipment is available - if necessary, we will equip it with fingerprint scanners, video recording and two-way communication equipment, metal and temperature detectors.
System for connecting turnstiles and modules
To connect turnstiles and modules of the SPECTRUM series you must:
- Remove the protective covers from the outside
- Remove the protective hatches from the inside
- Move the turnstiles close to each other
- Fix the turnstiles together using bolts through the frame frame
- Close the protective hatches on the inside
This fastening system reliably connects any turnstile or module of the SPECTRUM series, reduces installation time and gives a uniform look.
External dimensions (mm) LxWxH 1304x2520x2334
Passage dimensions (mm) LxWxH 2100x600
Passage width (mm) Lower part 1200x1000, With two open gates 2100x1000
Anti-panic mode automatic/manual
Housing material stainless steel AISI 304
Door material: stainless steel 304, thickness 1.2/1.5 mm
Control interface Dry contact
Throughput (person/min) 25-35
Opening time (sec) 0.2
Operating voltage (V) 24
Power supply (V) 220
Protection degree (IP) 54
