Industrial video endoscopes, endoscopes and inspection systems

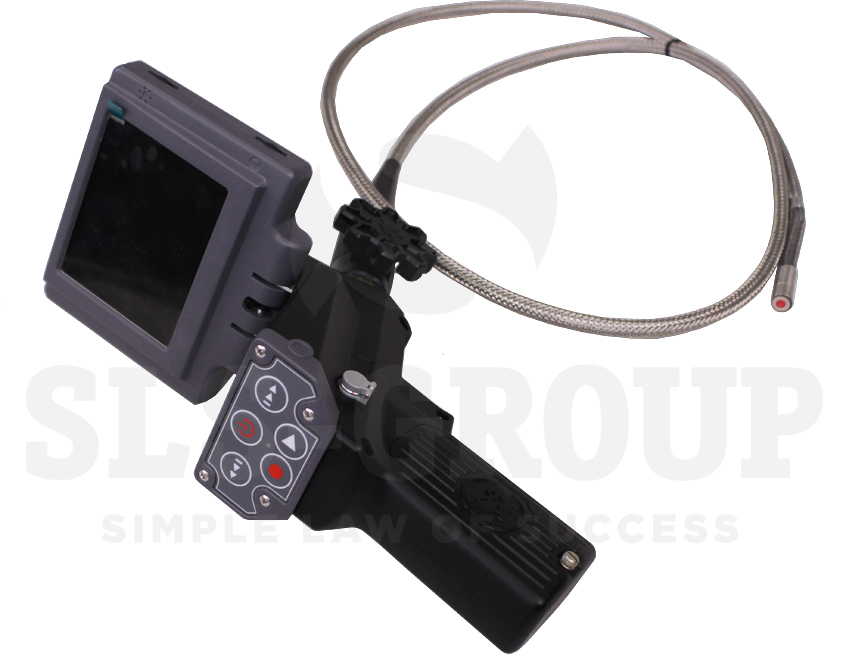

Television endoscope ETVTS-T
TV endoscope ETVCT 0 RUB

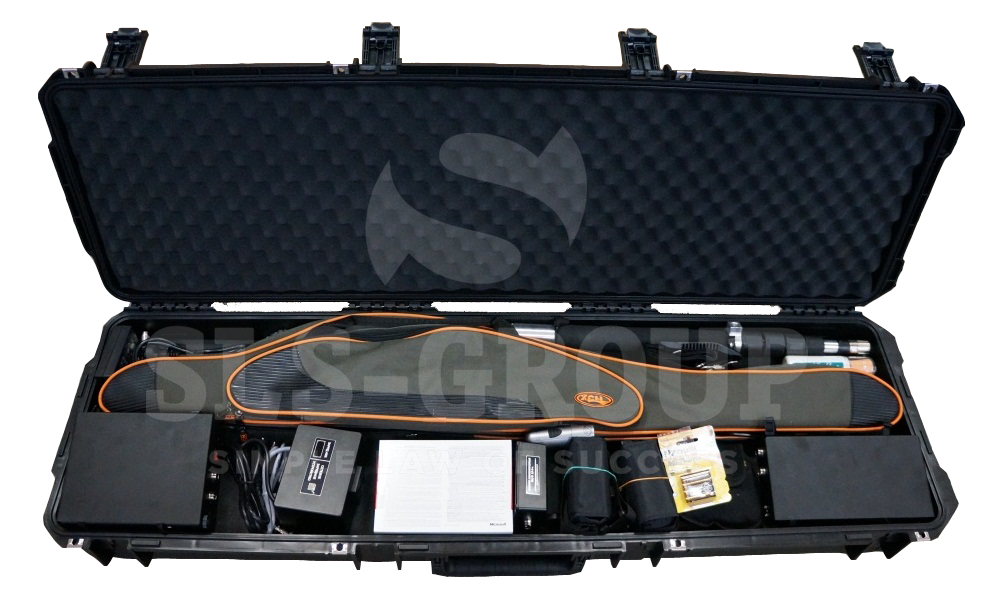

Portable inspection television system Kalmar-230
Portable inspection television system Kalmar230 0 RUB
Videoscope TVP KROT-HD10
Videoscope TVP KROTHHD10 0 RUB
Television inspection device KTS "SPRUT" MODEL 739
Television inspection device KTS SPRUT MODEL 739 0 RUBVideo endoscope
To check objects with difficult access to the internal space, an inspection video system is used. These are technical video endoscopes with a screen that help to gain access to hard-to-reach parts of vehicles, for example, to check the gas tank. Digital video endoscopes are widely used in various fields; they are used by customs, military structures, border checkpoints, and entry control zones to closed facilities.
Types of videoscopes
Manufacturers produce a large selection of industrial video endoscopes. Industrial devices have wide applicability and many additional functions and capabilities. Manufacturers equip devices with powerful rechargeable batteries, a high-resolution video camera, and built-in LED backlight. All these devices make it possible to quickly carry out inspections in any conditions. Some models are equipped with elements for protection when used in extreme or aggressive conditions.
In industry, one of three types of video endoscopes is used:
- flexible fiber optic models with a monitor – equipped with a CCD matrix that transmits images in color, so the operator receives a ready-made image in high resolution;
- rigid videoscopes - used if there is direct access to the object without nodes or convolutions; not suitable for studying objects of complex shape;
- flexible endoscopes - also made of optical fiber, used to examine objects with complex geometry, the image is transmitted in lower quality, but the price is lower.
Features of a professional video endoscope
The controlled video endoscope is the perfect equipment for comprehensive inspection. They serve for visual inspection of hard-to-reach areas when other inspection methods are not possible. Inspection cameras are used in various fields: industry, aviation, metallurgy, transport security.
With the help of inspection endoscopes, they check transport and aircraft engines, turbines, heat exchangers, motors, and pipelines. An endoscope with a camera helps to carry out the inspection quickly and without opening the item being inspected.
The advent of flexible video endoscopes has greatly simplified the inspection of difficult-to-reach areas. A video endoscope with a flexible probe consists of:
- flexible probe;
- control unit;
- light guide cable;
- ergonomic handle.
The flexible video scope can be operated with one hand. Additional lighting eliminates the need to use other lighting.
Another type of fiber optics devices is inspection X-ray television equipment. Their operating principle is simple. This is a set of equipment for inspection in hard-to-reach places. The set of inspection endoscopes includes mirrors that reflect radiation. The advantage of devices with video recording is high durability and reliability.
Inspection devices
A television inspection system consists of a small camera and a monitor on which the image is displayed. The device is placed on an inspection rod. The kit also includes:
- battery;
- charger 220V;
- network adapter;
- cables
The video endoscope camera can be rotated in different directions, which significantly expands the functionality and capabilities of the device. The video endoscope with a PTZ camera is controlled using a keyboard that operates remotely and is located on the handle.
Advantages
The industrial video endoscope is equipped with a high-resolution camera, so the analysis produces a clear picture that allows you to see the smallest details. Videoscopes are designed for use in challenging environments where visibility or accessibility is limited.
Advantages of a video endoscope:
- compact dimensions;
- mobility;
- use of high technologies;
- versatility;
- a large selection of nozzles of different lengths and sizes;
- high resolution video recording;
- instant data transfer from the video camera to the built-in monitor;
- high-tech optics;
- noise reduction, improved picture quality due to the built-in processor;
- ability to shoot in low light conditions;
- adjustment of brightness and color saturation, which improves the visibility of thermally affected areas;
- LED backlight with the ability to switch the spectrum from white to ultraviolet;
- improved software;
- simple interface.
Image transmission is carried out in real time. The picture is transmitted to the monitor via a digital cable. The operator can save the recording and transfer it to any medium - flash drive or hard drive. Built-in memory is limited.
TV endoscopes can be connected to a TV focusing head. This makes it possible to display the image on the screen of a separate monitor, as well as immediately log all data.
Purpose
A portable television inspection system is used to check items for contraband. The customs inspection endoscope is used by border services who need to conduct a detailed inspection in a limited time.
The device is used for visual analysis of parts, especially if you need to check an object of complex or irregular shape. Professional video endoscopes can be lightweight, portable or stationary. They are equipped with a flexible endoscope that can penetrate hard-to-reach areas. There is a small video camera at the end of the endoscope, and the device itself is equipped with a built-in monitor, which simplifies and speeds up the analysis process. The length of the probe can vary; each manufacturer has several models in its line, which are selected for their intended purpose.
Multifunctional equipment is widely used in various industrial fields. Video endoscopes are used in construction, metallurgy, mechanical engineering, aircraft manufacturing, the oil industry, and the chemical industry.
Thanks to the use of video endoscopes, you can quickly examine an object in detail, examine cavities and understand what is inside if another method of checking is not possible.
To use an endoscope, you do not need to open objects, dismantle components or communications. This is very important when it comes to large objects, as well as dangerous objects.
How to choose industrial videoscopes
When choosing a video endoscope, you must know exactly the purpose and conditions of use. Please pay attention to the following recommendations:
- Before purchasing, carefully study the technical specifications, since operating conditions depend on the parameters of the device;
- decide on the length of the probe, what it should be - flexible or rigid;
- do not skimp on LED backlighting - the more LEDs, the better the quality of the examination, especially if the object is very dark.
The internal diameter can be up to 4 mm wide and up to 30 meters long, which makes videoscopes universal and also improves the quality of research in hard-to-reach areas.
Other characteristics are selected according to circumstances. If you need help selecting a professional-type videoscope for specific conditions, write to us on the website or leave your request by phone.
Where to buy an industrial video endoscope
The price of videoscopes depends on the characteristics, size and type of probe, diameter of the working area, configuration, and set of options. From us you can buy high-quality flexible videocopes of Russian and foreign production with a probe length from 1 to 30 meters, with an internal diameter of 4 mm.
You can buy a video endoscope in Moscow from the SLS-GROUP company. Prices for inspection endoscopes are available upon request. Managers will help you choose a Russian-made video endoscope model depending on the purpose. Leave a request on the website and receive a commercial offer by email. Sending is carried out to all cities of Russia. To protect the equipment during transportation, durable cardboard packaging with protective blocks is used. Factory packaging protects the device from accidental damage during delivery to the regions
You can order equipment from Russian or foreign manufacturers, certified and permitted in the Russian Federation. We guarantee high-quality and uninterrupted operation of any inspection and security equipment from the catalog. For more information and to place an order, call the numbers in the “Contacts” section or leave a request to the sales department on the websitesls-security.ru.
