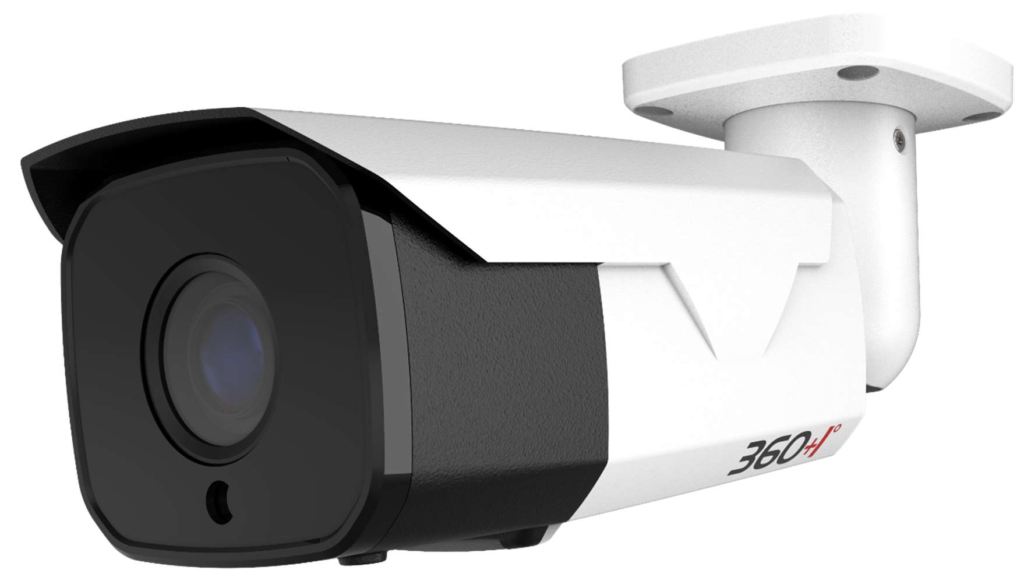

Outdoor bullet IP camera with motorized lens “2MP-BUL-2.7-13.5M v.1”
Outdoor vandal-proof cylindrical IP66 digital IP video camera.
Night vision: IR illumination up to 60m.
Power: 12V (DC), PoE IEEE 802.3af high voltage range ±25% with lightning protection.
Interfaces: Power In/Out, Ethernet RJ45, Audio In.
Operating temperature range: -45°C ~ +50°C.
Acceptable humidity level: 0% -100%. Climate membrane "Ftorlone"
High-performance professional software that allows you to build scalable video surveillance systems with an unlimited number of servers, IP cameras and workstations (client) places, combining them into a single system. Supports not only 360+1° cameras, but also third-party equipment vendors. The software comes with the camera free of charge.
Additional options
- Replacing the lens. Motorized: 2.7-13.5 mm, 6-22 mm, 5-50 mm;
- Built-in microphone;
- Replacing the backlight with a more powerful one;
- Painting the camera body;
- Built-in UPS (uninterruptible power supply);
- Anti-corrosion coating of the camera body;
- Vibration protection;
- Система отопления и холодного старта до -65°;
- Built-in 3/4G module;
- Additional connectors: Audio Out.
Performance characteristics (TTX): Outdoor cylindrical IP camera with motorized lens “2MP-BUL-2.7-13.5M v.1”
| Camera | |
| Sensor | 1/2.8″ MSTAR SSC335+CMOS SONY IMX307 |
| Lens | Motorized 2.7-13.5mm / 6.0-22mm / 5.0-50mm |
| Horizontal viewing angle | 106° – 35° / 60° – 23° / 70° – 12° |
| Coding | |
| Compression codecs | H.264 Main Profile/High Profile H.265/HEVC Main Profile/High Profile |
| Maximum resolution and frame rate | Main stream 2MP – 1920×1080 – 20 fps Main stream 1MP – 1280×720 – 30 fps |
| Additional stream 1 – D1, VGA, 640×480, CIF – 30 fps | |
| Video bitrate | 512 Kbps – 5120 Kbps |
| CBR/VBR support | |
| Image | |
| Minimum illumination | 0.01 Lux at F1.2 |
| Image Options | Brightness, Contrast, Saturation, Sharpness, BLC mode, HLC, 2D DNR, 3D DNR, White balance, Flicker 50/60Hz Anti-flicker, Anti-fog, WDR/HDR, Day/Night shutter mode |
| Sound | |
| Compression codec | G.711A/U |
| Functions | |
| Functions | Intelligent motion detection, motion detection, stream snapshot, OSD |
| Network protocols | HTTP / RTSP / DHCP / NTP / ONVIF / P2P |
| Standards | ONVIF2.6/CGI/GB28181 |
| Night vision | |
| Adaptive IR illumination | Hardware control |
| Wavelength | 850 nm |
| Number of diodes | 8 pcs |
| Range | up to 60 m |
| Interfaces | |
| Network interface | 10/100Base-Tx, 1 x RJ 45 |
| Connectors | Power Out, RJ45, DC12V, Audio In |
| Audio input | Yes (RCA female) |
| Audio output | Optional (RCA female) |
| External characteristics | |
| Degree of protection | IP66 |
| Operating temperature | Recommended -45°С ~ +50°С |
| Operating humidity | 0% – 100% (no condensation) |
| Housing material | Metal |
| Additionally | Climate membrane “Ftorlone” to control the humidity level of the product |
| Dimensions | Ø86.5 x 289.7 94 x 85.7 mm |
| Weight | 800 g |
| Nutrition | |
| Nutrition | 12V (DC), PoE IEEE 802.3af high voltage range ±25% |
| Energy consumption | ≤ 9 W |
| Lightning protection | Pole-to-pole overvoltage 2000 V. Pole-to-body overvoltage up to 6000 V |
| General | |
| System Requirements | Microsoft Internet Explorer 9.x or higher on Microsoft Windows 10 / 8.1 / 8 / 7 |
| Control | Web interface, professional free software (included) |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
