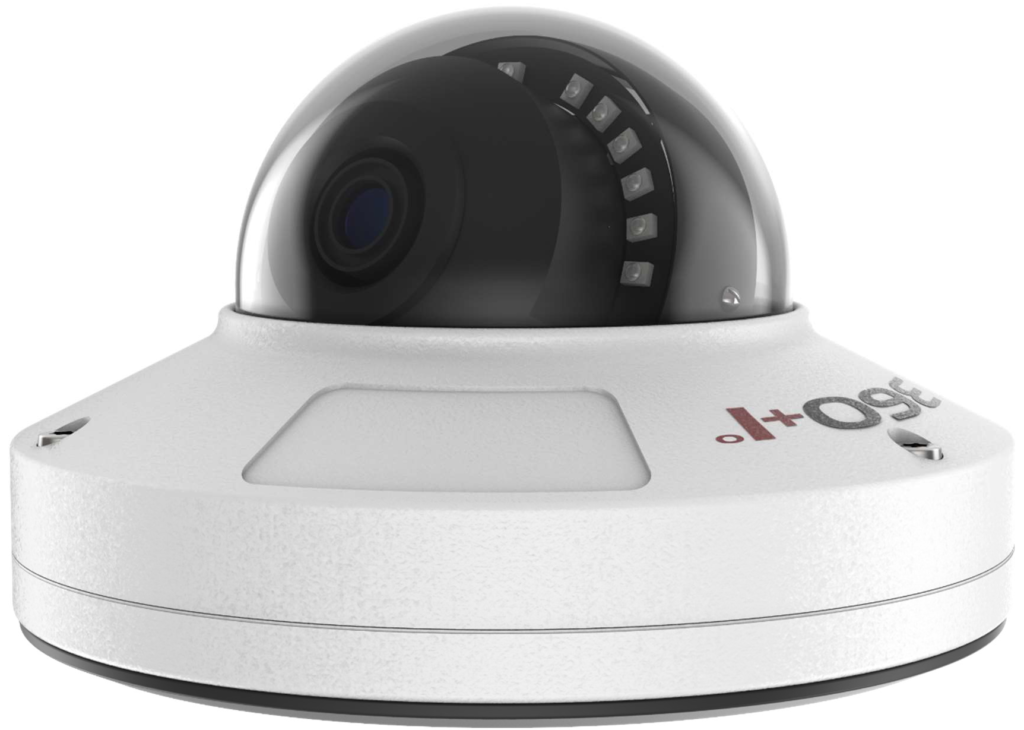

IP dome camera with fixed lens “4MP-DOM-2.8 v.1”
Dome vandal-proof IP66 digital IP video camera.
Night vision: IR illumination up to 30m.
Power: 12V (DC), PoE IEEE 802.3af high voltage range ±25% with lightning protection.
Interfaces: Power In/Out, Ethernet RJ45, Audio In.
Operating temperature range: -45°C ~ +50°C.
Acceptable humidity level: 0% -100%. Climate membrane "Ftorlone"
High-performance professional software that allows you to build scalable video surveillance systems with an unlimited number of servers, IP cameras and workstations (client) places, combining them into a single system. Supports not only 360+1° cameras, but also third-party equipment vendors. The software comes with the camera free of charge.
Additional options
- Replacing the lens. Fixed: 2.8 mm, 3.6 mm, 4 mm, 6 mm;
- Built-in microphone;
- Replacing the backlight with a more powerful one;
- Painting the camera body;
- Anti-corrosion coating of the camera body;
- Vibration protection.
Performance characteristics (TTX): Dome IP camera with fixed lens “4MP-DOM-2.8 v.1”
| Camera | |
| Sensor | 1/2.9″ MSTAR SSC337DE+CMOS 4320 |
| Lens | Fixed 2.8mm / 3.6mm / 4mm / 6mm |
| Horizontal viewing angle | 106° / 85° / 80° / 57° |
| Coding | |
| Compression codecs | H.264 Main Profile/High Profile H.265/HEVC Main Profile/High Profile |
| Maximum resolution and frame rate | 5MP-25fps, 4MP-25fps, 3MP-25fps, 1080P/720P/D1-30fps |
| Additional stream D1/VGA/640×360/CIF-30fps | |
| Video bitrate | 512 Kbps – 6.144 Mbps |
| CBR/VBR support | |
| Image | |
| Minimum illumination | 0.01 Lux at F1.2 |
| Image Options | Brightness, Contrast, Saturation, Sharpness, BLC mode, HLC, 2D DNR, 3D DNR, White balance, Flicker 50/60Hz Anti-flicker, Anti-fog, WDR/HDR, Day/Night shutter mode |
| Sound | |
| Compression codec | G.711A/U |
| Functions | |
| Functions | Intelligent motion detection, motion detection, stream snapshot, OSD |
| Network protocols | HTTP / RTSP / DHCP / NTP / ONVIF / P2P |
| Standards | ONVIF2.6/CGI/GB28181 |
| Night vision | |
| Adaptive IR illumination | Hardware control |
| Wavelength | 850 nm |
| Number of diodes | 12 pcs |
| Range | up to 30 m |
| Interfaces | |
| Network interface | 10/100Base-Tx, 1 x RJ 45 |
| Connectors | Power Out, RJ45, DC12V, Audio In |
| Audio input | Yes (RCA female) |
| Audio output | Optional (RCA female) |
| External characteristics | |
| Degree of protection | IP66 |
| Operating temperature | Recommended -45°С ~ +50°С |
| Operating humidity | 0% – 90% (no condensation) |
| Housing material | Metal |
| Dimensions | Ø120x75 mm |
| Weight | 450 g |
| Nutrition | |
| Nutrition | 12V (DC), PoE IEEE 802.3af high voltage range ±25% |
| Energy consumption | ≤ 6 W |
| Lightning protection | Pole-to-pole overvoltage 2000 V. Pole-to-body overvoltage up to 6000 V |
| General | |
| System Requirements | Microsoft Internet Explorer 9.x or higher on Microsoft Windows 10 / 8.1 / 8 / 7 |
| Control | Web interface, professional free software (included) |
