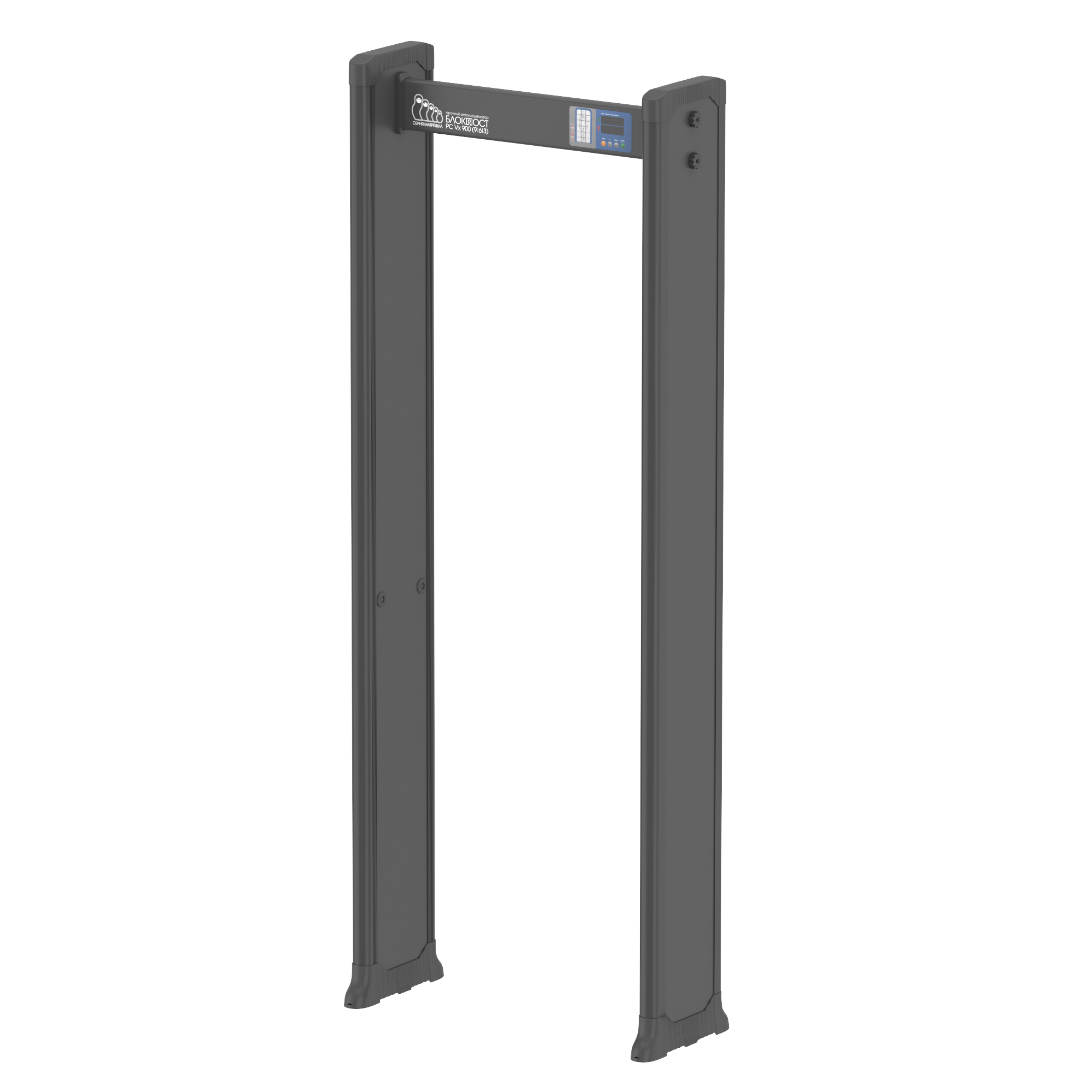

Arched metal detector BLOCKPOST Matryoshka PC Vx 1800 (18126)
BLOCKPOST specialists constantly monitor and study the latest trends in security at checkpoints. The new serial line of Matryoshka products is based on a thorough analysis and consideration of the necessary operational capabilities, on the use of current technologies and operating algorithms. The products of the Matryoshka series use the most modern electronic components and materials with a long service life.
The model range of BLOKPOST metal detectors of the Matryoshka series is superior in a number of key parameters to previously produced products from the RS Z and RS X series, which makes these products the most in demand on the Russian market. Modernization of BLOKPOST products made it possible to adapt the products to modern requirements, and also made it possible to use them in various climatic latitudes of our country, both indoors and outdoors.
BLOKPOST metal detectors from the Matryoshka series have an increased range of models. All products in this series use modern adaptive technologies based on the reception and transmission of a harmonic signal through an upgraded digital signal processing unit, as well as microprocessors, microcontrollers and other electronic components.
Operating principle
Electromagnetic transmitting and receiving coils located in the left and right antenna panels create a scanning continuous and uniform electromagnetic field in the control zone by radiation. When carrying metal or metal-containing objects through the control zone, the physical parameters of the scanning electromagnetic field change in the locations of the said objects. All physical changes that affect the specified parameters of the scanning electromagnetic field in the control zones (dimensions, weight, physical properties of magnetic and non-magnetic metals and alloys), as well as possible third-party electromagnetic interference are analyzed by the signal processing unit. The operation of this unit is based on special algorithms using modern microprocessors and electronic components.
At checkpoints, the adjustable alarm signal is duplicated by a light indication on the end of the left and right antenna panels, and is also additionally displayed on the screen of the control unit. This allows the operator to accurately locate one or more metal objects on a person's body, clothing or luggage. For convenience, the products are equipped with a two-color light indication STOP/GO, which will allow you to regulate the passage of people through the control zone of the products.

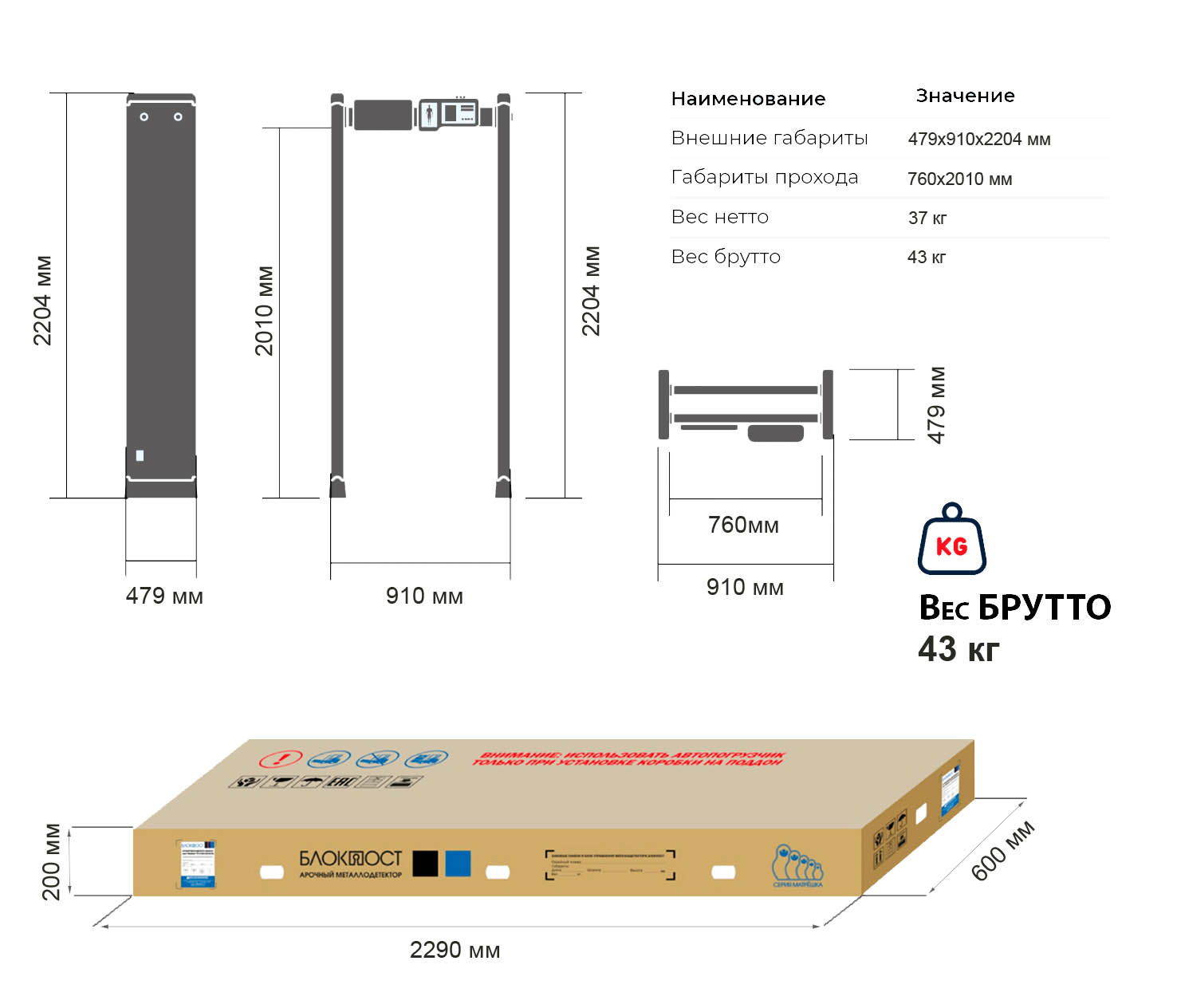

Dimensions of the metal detector
The safety of transporting the metal detector is ensured thanks to reliable transport packaging, which protects the device and all its components from chips, scratches, dents, high humidity and dust.
The housing of the signal processing unit has undergone positive changes. The new case has become twice as compact and aesthetically pleasing with a modular design. The control unit is now equipped with convenient latches for attaching to a horizontal crossbar, which simplifies assembly. All elements for connecting external devices are located inside the aluminum body of the crossbar, where there is a special technological hole with a decorative plug.
The designs retain all the integral elements - an information screen of detection zones, signal indication, two five-digit displays displaying statistics on the number of passes and alarms, as well as an interface display, a settings menu, individual color, linear indication of the level of signals from the scanning field.

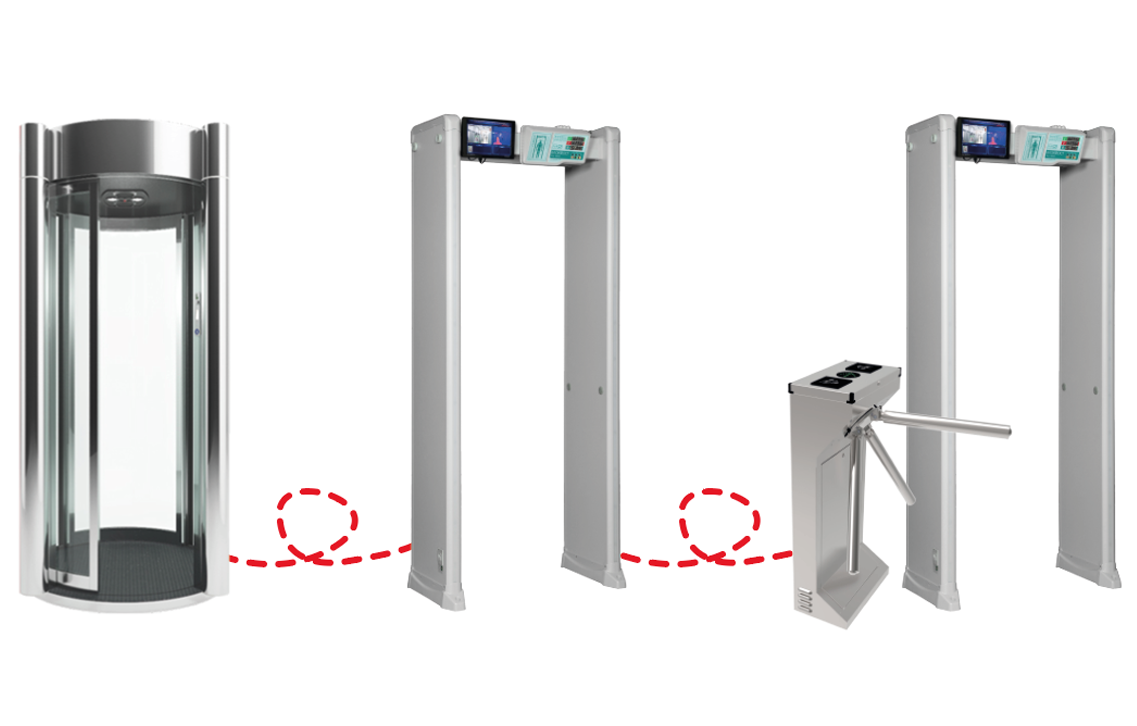

Integration into an access control system
External connection points for BLOKPOST metal detectors of the “Matryoshka” series. All products are equipped with two relay connectors for connecting additional devices (dry contacts). These connectors allow you to integrate devices into an access control system, including, for example, airlock booths, turnstiles, and automatic doors. When a metal object is detected (according to the specified sensitivity parameters and alarm duration), the metal detector will simultaneously close the first relay output, after which the actuator will be blocked. If objects on a person’s body or in his clothing are acceptable according to the specified parameters, the product will close the second relay output, after which the actuator will be unlocked.
The product has three connection points to the 220 V network in the upper part: below, on the left and right antenna panels. All connection points to the 220 V network are protected by a fast-acting fuse. There is also a special connector for lithium-ion batteries. The battery life of the product ranges from 4 hours or longer. The interface menu displays the battery charge level in real time.
To connect to a personal computer and control via the Internet, use an RG-45 type socket.

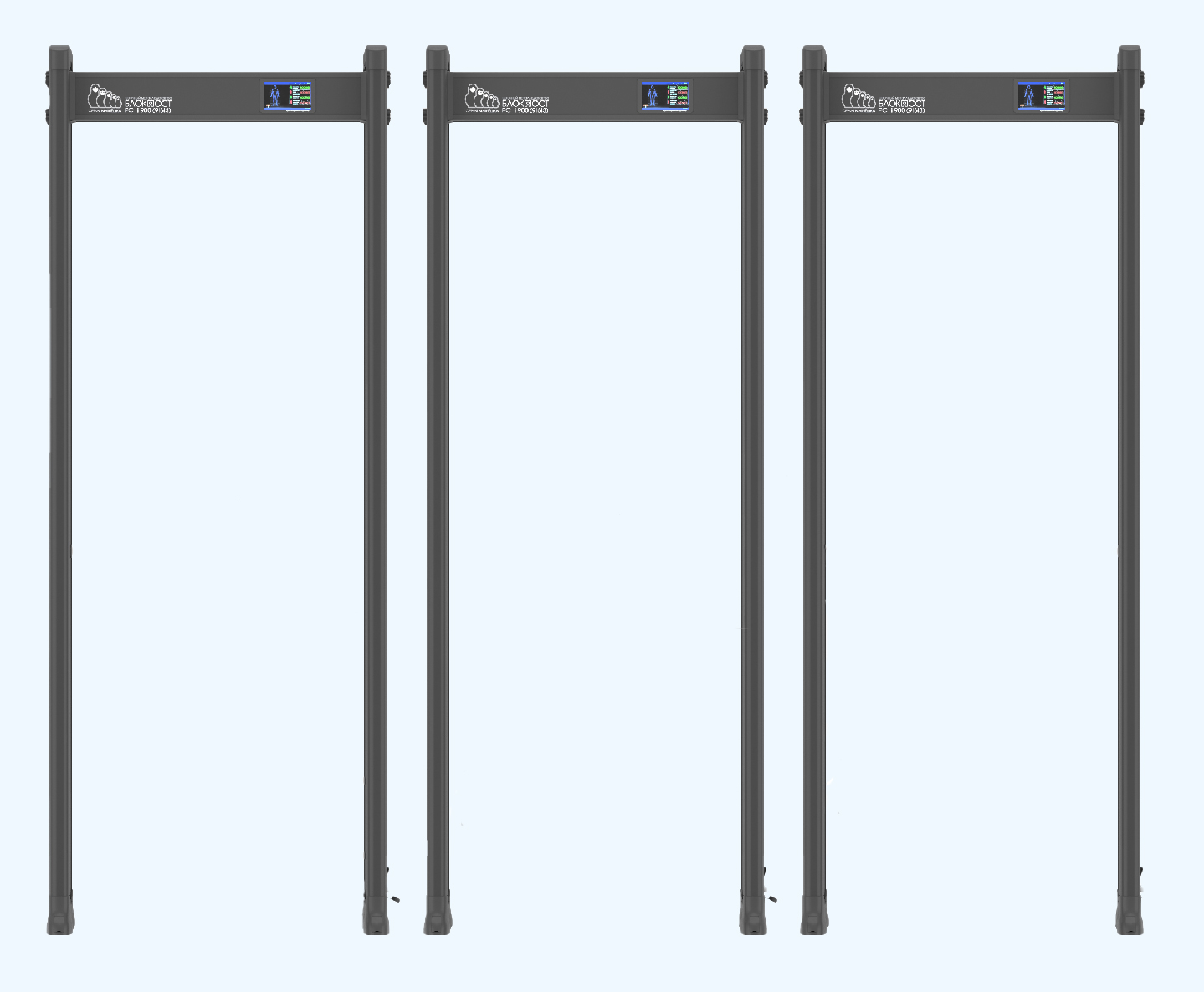

Parallel operation
The modernized adaptation technology of BLOKPOST metal detectors of the Matryoshka series additionally makes it possible to increase adaptive noise immunity and synchronize several devices according to operating frequencies. More than 12 products arranged in a row can be operated simultaneously around the clock; the distance between them should be 500 mm.

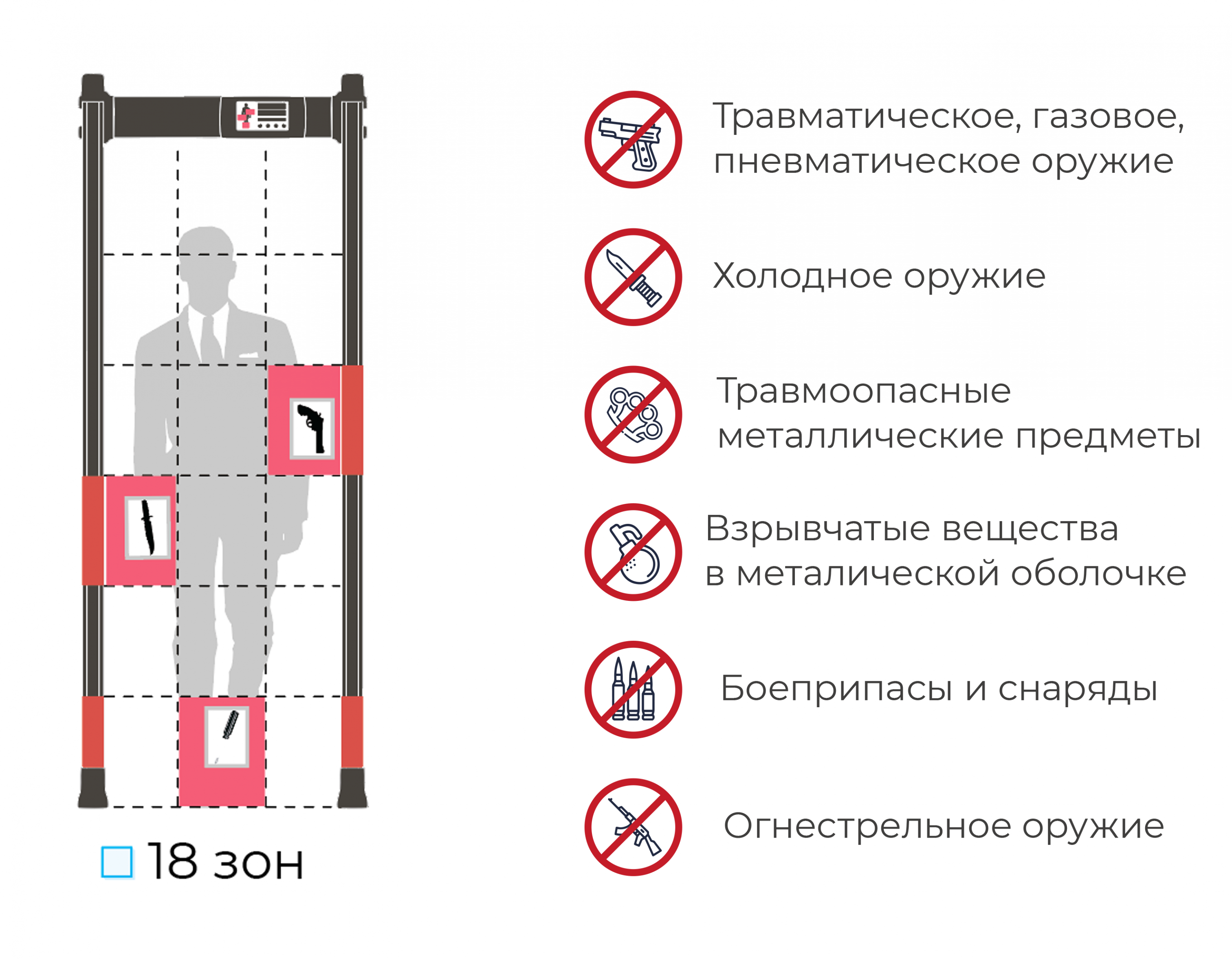

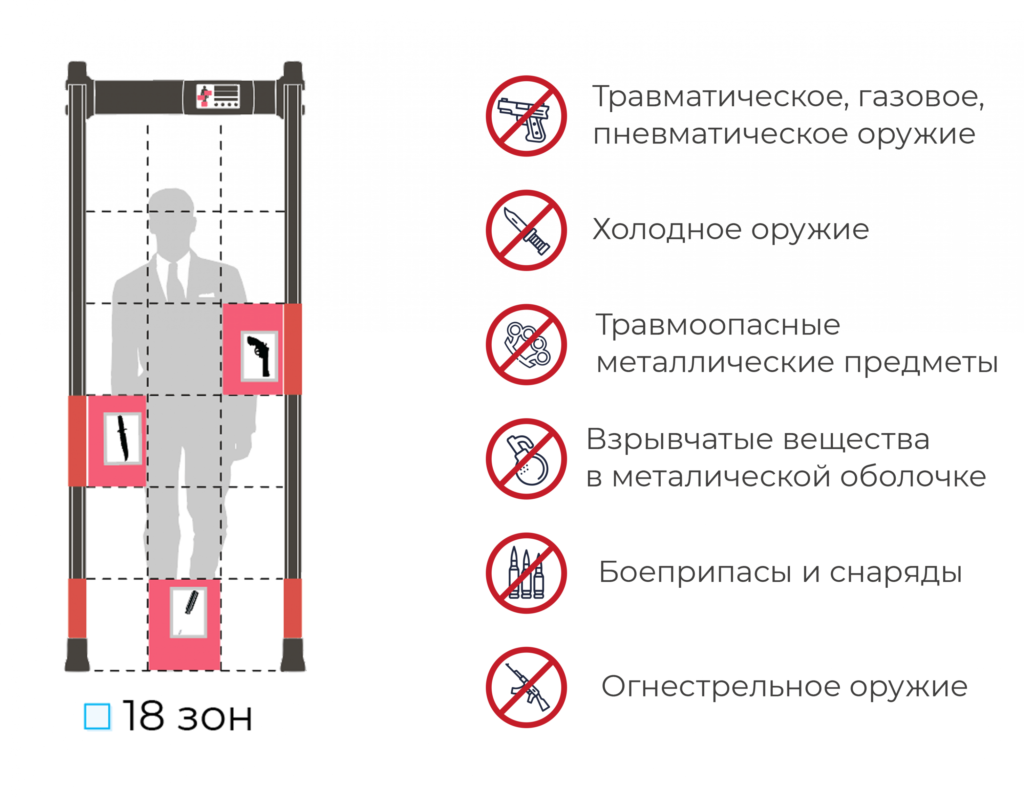

Thanks to the introduction of new design solutions for placing from 14 to 34 electromagnetic coils, it became possible to take into account the overlap of adjacent zones. Accordingly, each metal detector forms a uniform, multi-zone scanning field. The number of detection zones can vary from 3 to 93, which significantly increases the accuracy of determining the location of one or more metal objects on a person’s body, in his clothing or in luggage.

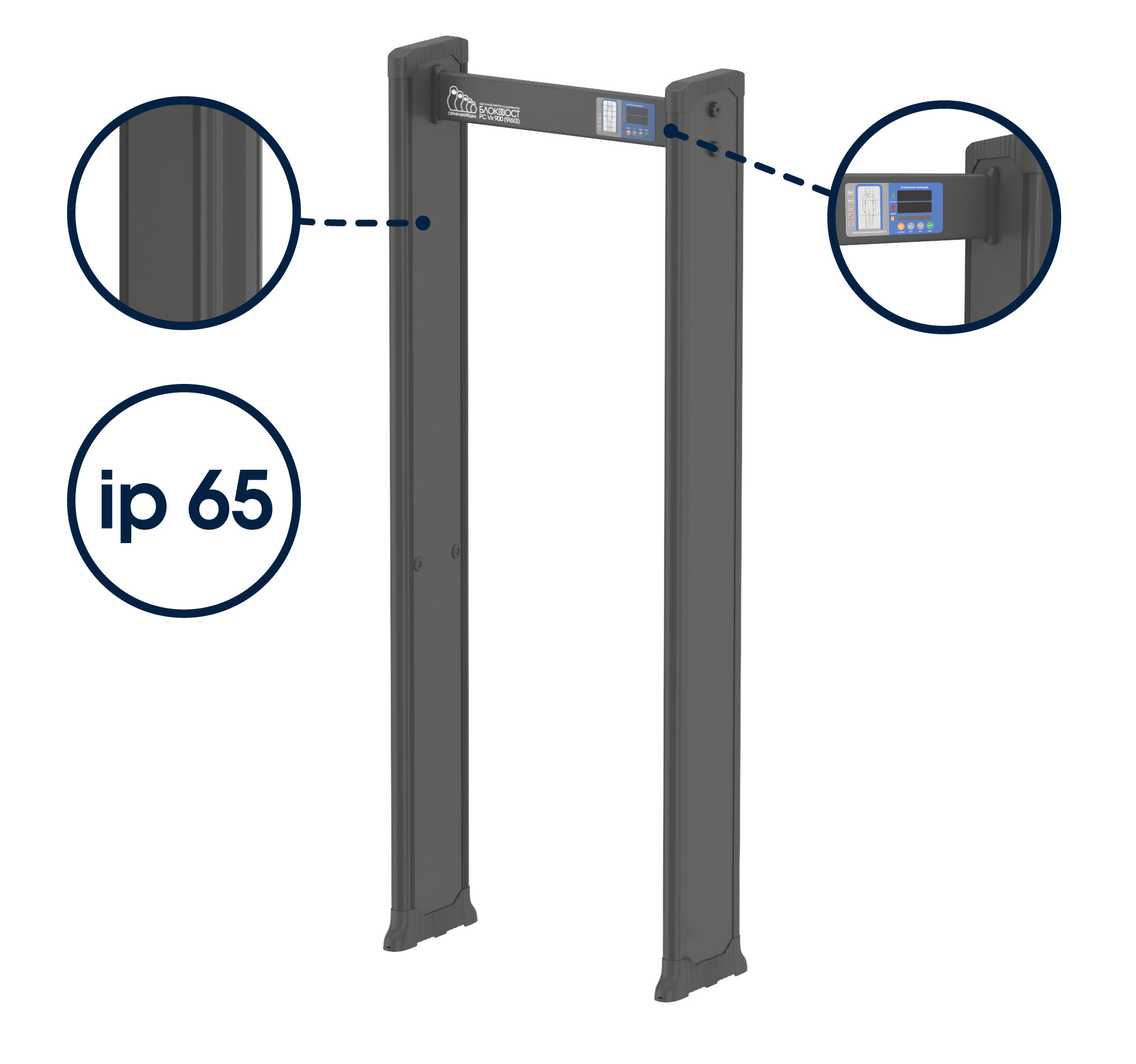

Housing design of BLOKPOST metal detectors of the “Matryoshka” series
Housing design of BLOKPOST metal detectors of the “Matryoshka” Vx series. The shell has a degree of protection IP65. Made of durable plastic; The panel thickness is 12 mm. The case is completely moisture resistant, all structural elements are made of aluminum and durable plastic. The information display, control keys and connection points also comply with the IP65 degree of protection. These products are almost completely adapted for use outdoors. The degree of protection can be further increased by using special cases with transparent inserts.
The model range of metal detectors of the “Matryoshka” series has a standard set of fastenings to the floor. Mortgage holes for fastening to the floor are covered with a specially modeled decorative strip. This allows the product to look aesthetically pleasing.
Installation of BLOKPOST metal detector products from the Matryoshka series is quite simple. Even an untrained specialist can carry it out in 10-15 minutes. The settings interface menu has been adapted, and the operator will not spend much time on setup. Each product has technical documentation with a detailed description of the commissioning process.
The standard equipment of BLOKPOST metal detectors of the “Matryoshka” series allows the product to be put into operation in a short time without additional costs.

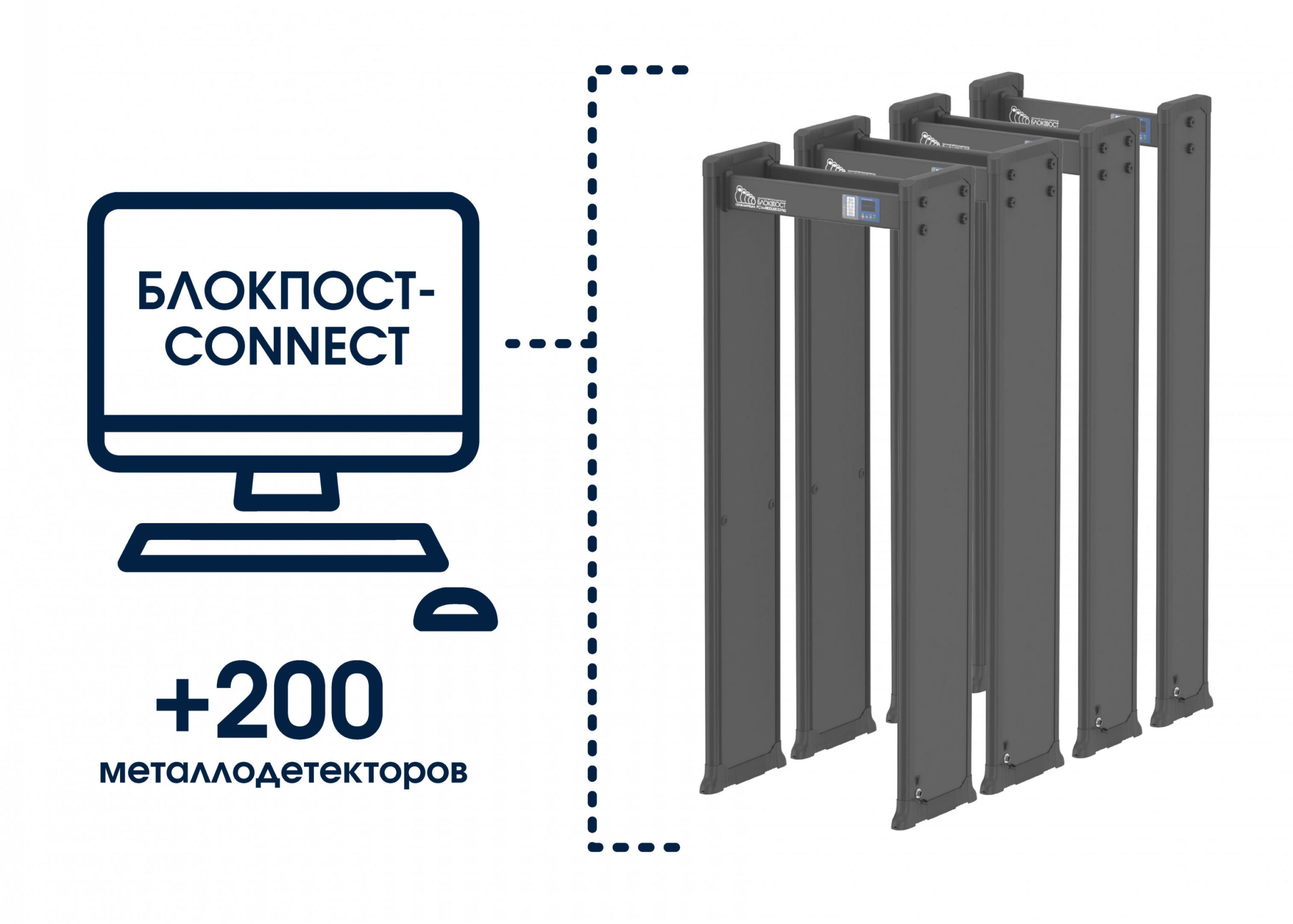

Software “BLOCKPOST-CONNECT”
“BLOKPOST-CONNECT” software, thanks to the function of connecting to a personal computer via a local network, makes it possible to remotely control, monitor and control up to 200 metal detectors in real time.
Areas of application
The BLOCKPOST PC Vx 3300 MK metal detector is intended for use in government institutions, kindergartens, educational institutions, shopping centers and cinemas, train stations and airports, stadiums, concert halls, shops and other places that require ensuring the safety of people.

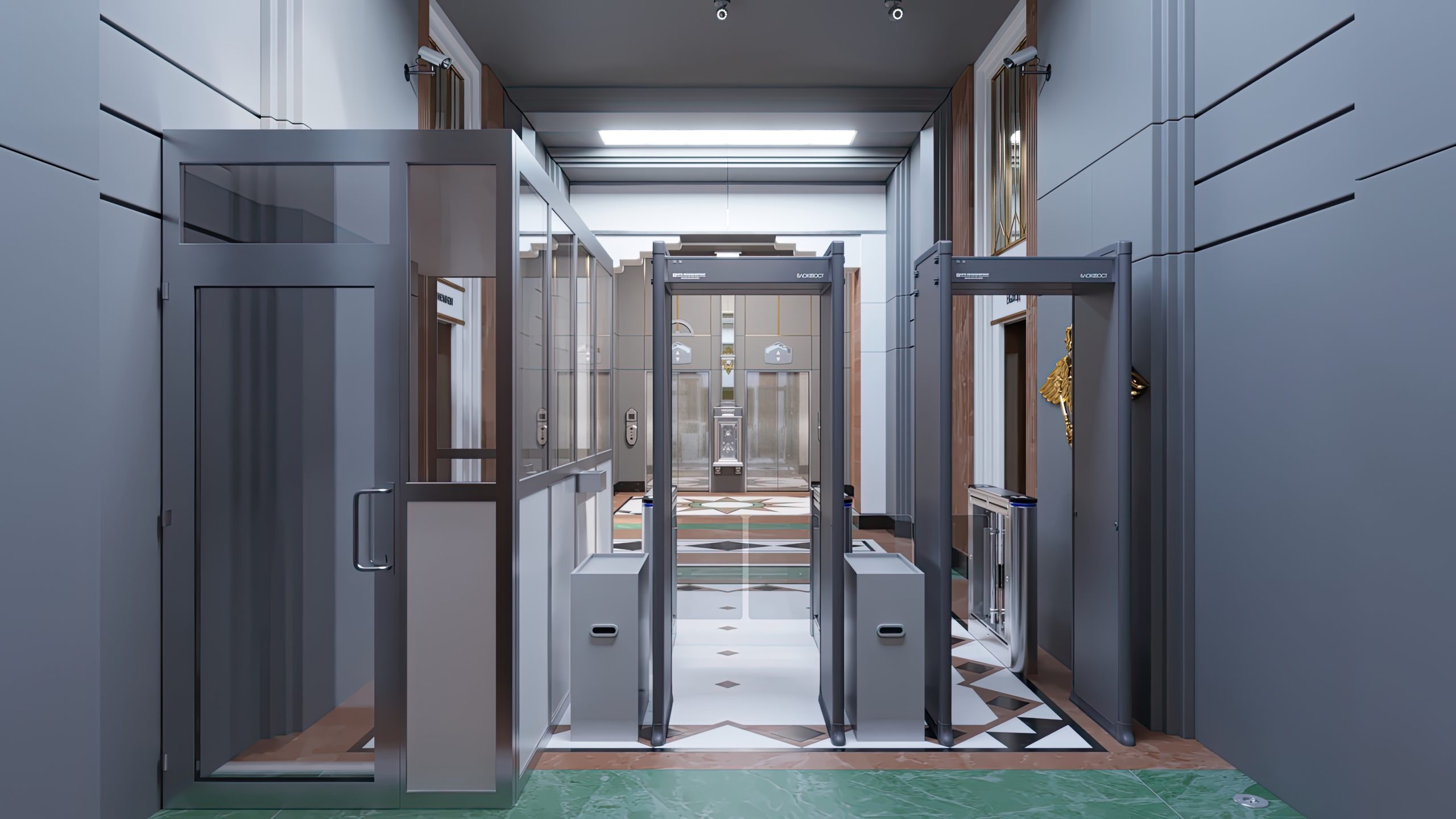

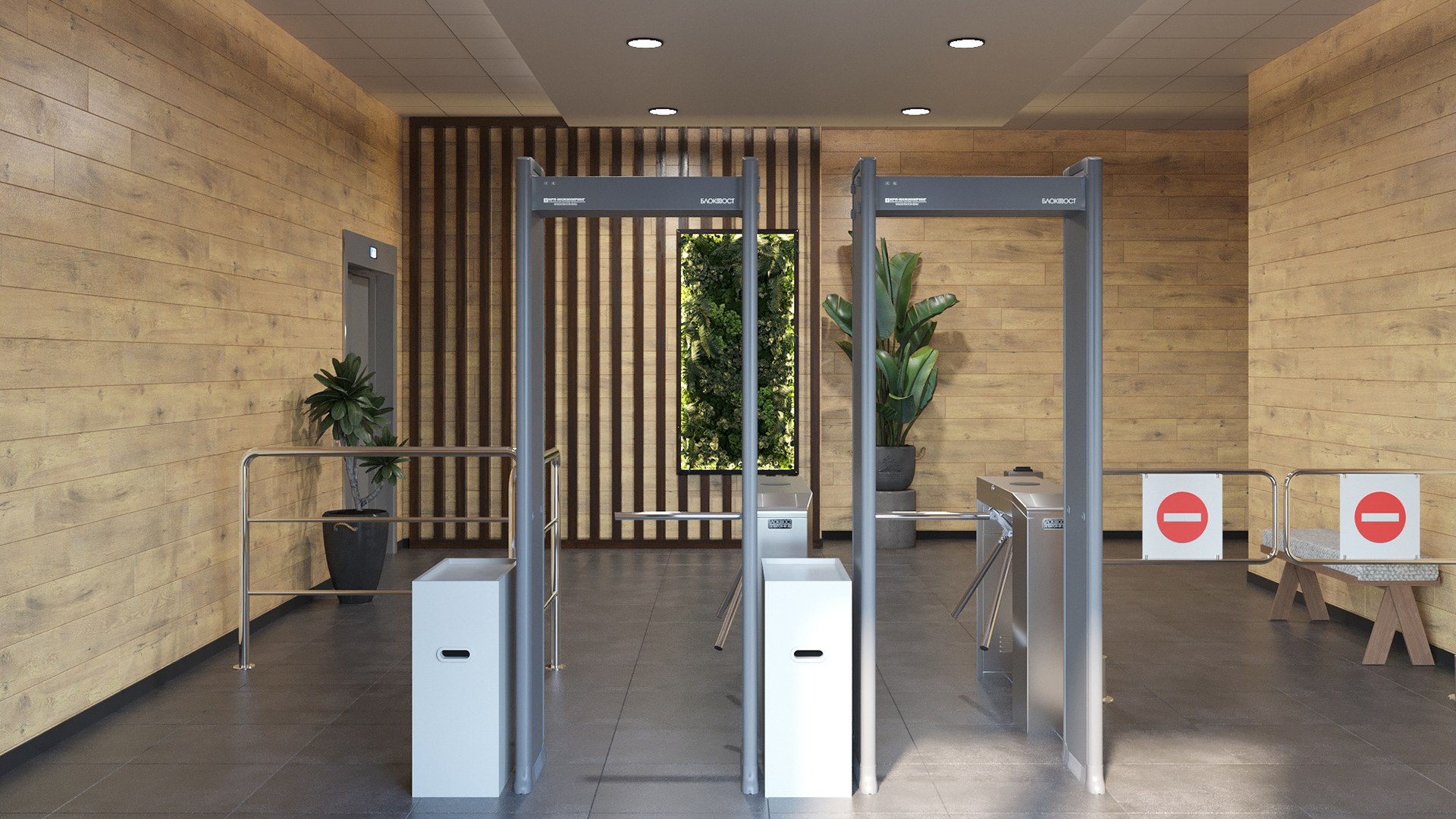

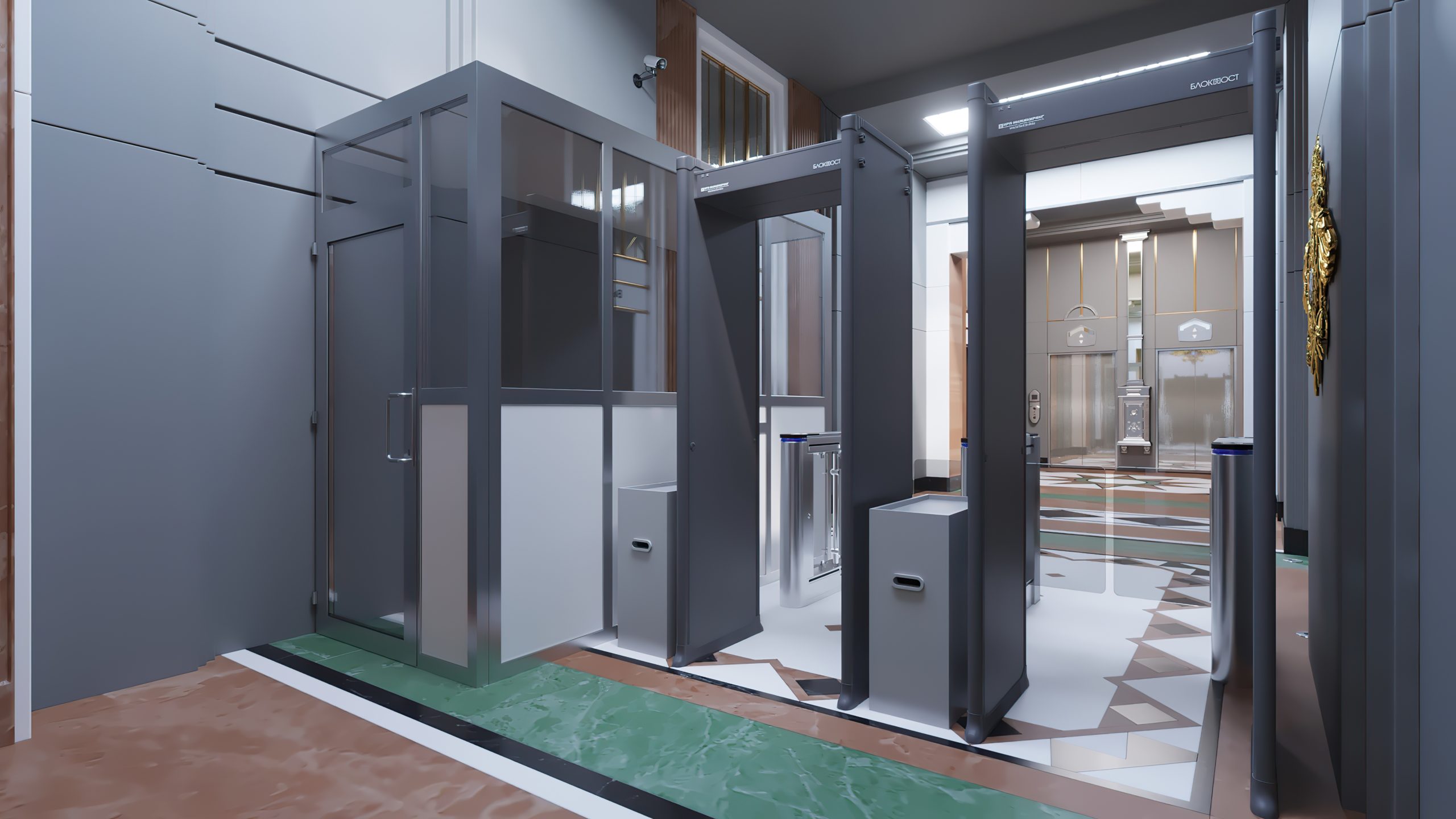

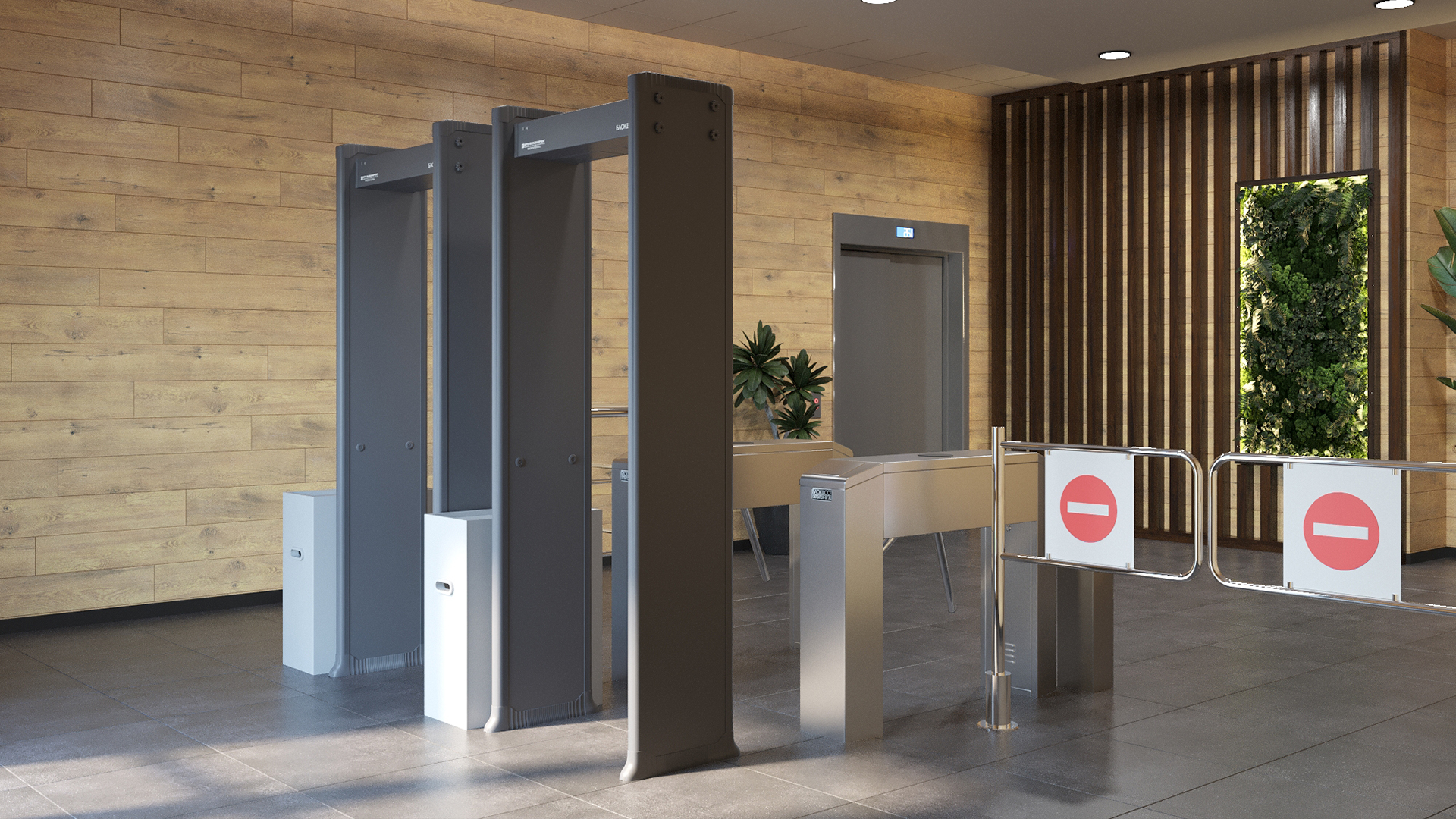

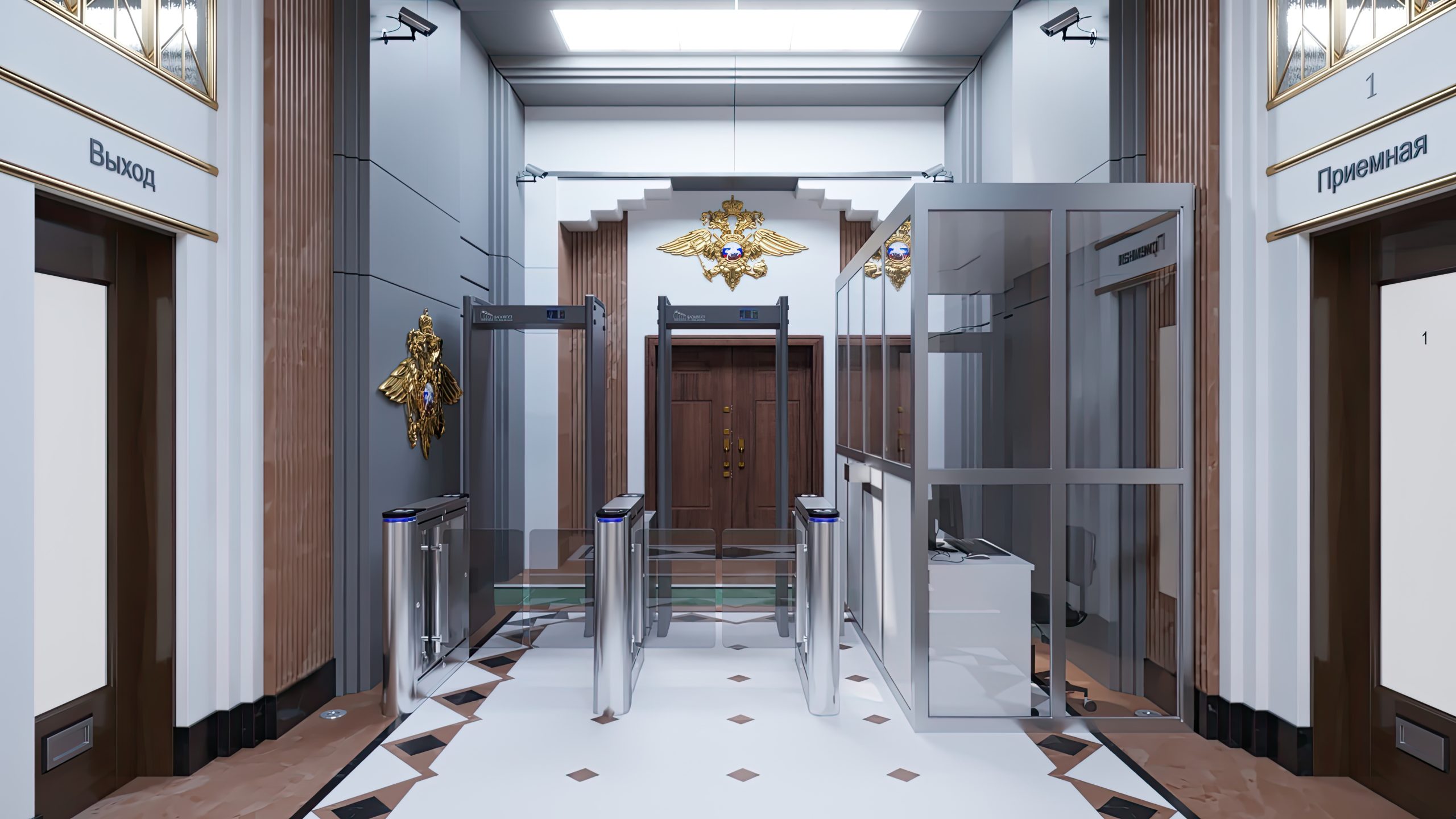

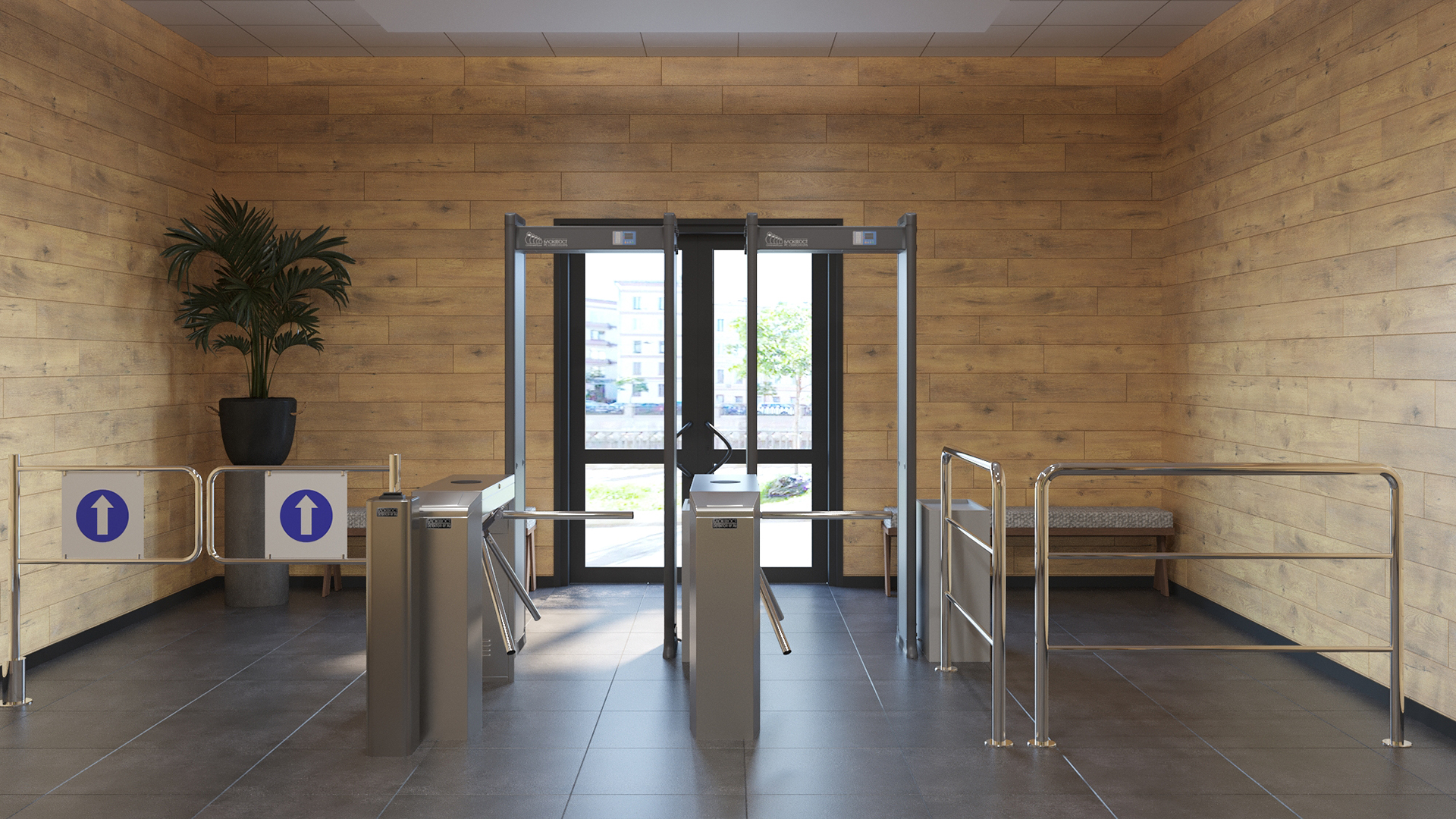

Arched metal detector of the Matryoshka series in the interior
The range of BLOKPOST arched metal detectors includes a wide variety of models. This makes it possible to install structures on objects that beneficially complement the interior of any room. The device can make the design of a room or hall more modern and emphasize its technical equipment. Streamlined shapes and more modest dimensions allow the devices to be installed even in small rooms. Selecting a model of the desired shade will allow you to “dissolve” the structure in the interior as much as possible.
