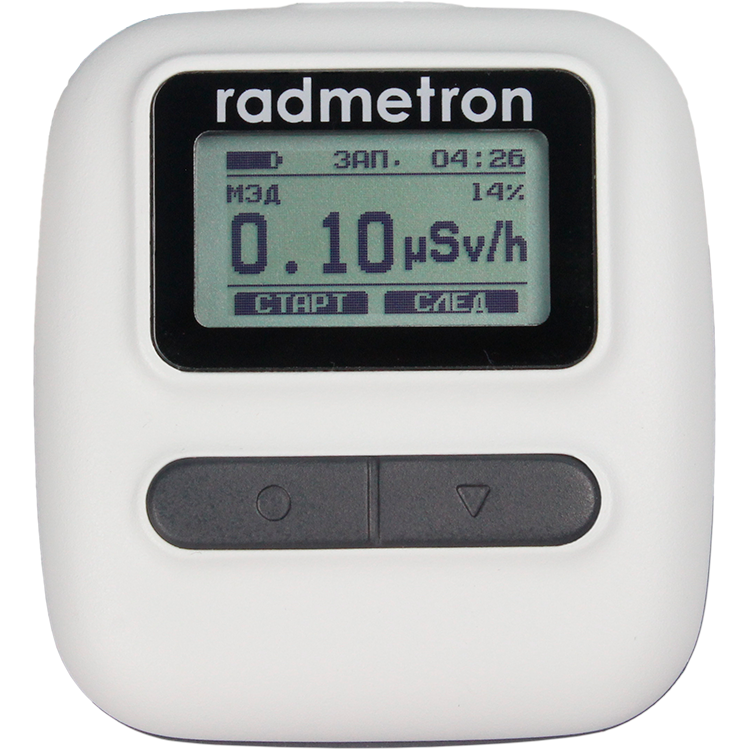

Individual dosimeter of X-ray and gamma radiation DKG-PM1611
Price on request:
Request a price
Purpose
The dosimeter is designed to measure the individual dose equivalent Hp(10) (ED) and the individual dose equivalent rate Ĥp(10) (EDR) of continuous and pulsed X-ray and gamma radiation.
Functions
- Measurement of individual dose equivalent rate Ĥp(10) (EDR) of continuous and pulsed X-ray and gamma radiation
- Measurement of individual dose equivalent Hp(10) (ED) of continuous and pulsed X-ray and gamma radiation
- Registration of ED dialing time
- Issuance of sound, light and vibration alarms when threshold values of DE or DER are exceeded
- Time display in hours, minutes;
- Transfer of information accumulated and stored in the dosimeter’s non-volatile memory to a personal computer via USB channel (Type-C)
- Storage of up to 7500 history events
Peculiarities
- Measurement of pulsed X-ray and gamma radiation with pulse duration from 1 ms
- Two button control
- Measurement of DER and DE in a wide range from background to 10 Sv/h and 20 Sv, respectively
- Wide energy range from 20 keV to 10 MeV
- Two independent alarm thresholds for DER and DE
- Sound, light and vibration alarm
- Communication with a computer via USB channel (Type-C)
- Small dimensions and weight
- Impact-resistant sealed housing with IP67 protection rating
Users
- Customs and border services
- Medical institutions
- Transport organizations
- Nuclear power plants
- Radiological and isotope laboratories
- Emergency services
| Detector | Geiger-Muller counter |
| Dose rate measurement range (DER) | 0.1 µSv/h – 10 Sv/h |
| Limit of permissible basic relative error of DER, no more | ±15% |
| Dose rate threshold setting range | throughout the entire DER measurement range |
| Dose measurement range (ED) | 0.05 µSv – 20 Sv |
| Limit of permissible basic relative error of ED, no more | ±15% |
| Dose threshold setting range | throughout the entire DE measurement range |
| Range of recorded energies | 20.0 keV – 10.0 MeV |
| Energy dependence of readings relative to 0.662 MeV (137Cs) no more | -60% from 20 keV to 33 keV -40% in the range 33 keV - 48 keV ±30% in the range 48 keV - 3 MeV ±50% in the range 3 MeV - 10 MeV |
| Response time for stepwise DER measurement (according to IEC 61526), no more | 5 s (when zoomed in) |
| Coefficient of variation | < 10% |
| Remains operational after short-term exposure to maximum permissible gamma radiation | 100 Sv/h |
| Signaling | sound, light, vibration |
| Communication channel with PC | USB (Type-C) |
| Resistant to being dropped onto a wooden floor from a height | 1.5 m |
| Device power | built-in battery with USB charging |
| Continuous operation time between charges under normal conditions |
2 months |
| Low battery indication (partial and critical) |
displayed on LCD |
| terms of Use • temperature • humidity • atmospheric pressure |
-20°C to 50°C up to 98% at 35 °C from 84 to 106.7 kPa |
| Degree of protection | IP67 |
| Dimensions | 58 × 63 × 22 mm |
| Weight | ≤ 70 g |
