Arched metal detector "Metor 6M"
To detect metal objects that are prohibited from being brought in or transported, stationary arch-type detectors are used. Metal detector “Metor-6M” is a universal multi-zone walk-through metal detector.
Characteristics

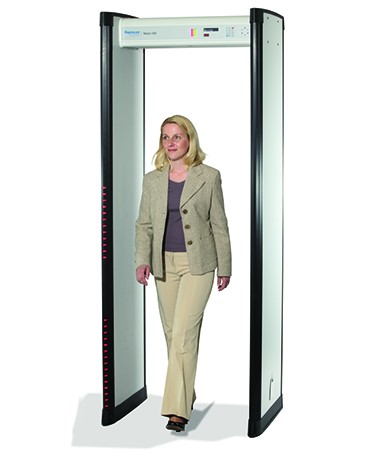

The Metor-6M metal detector is an arch consisting of two panels connected by a transverse beam.
The steel housing protects the control unit in the side panel from mechanical damage and moisture. Hidden inside the metal detector panels is not only the control unit, but also the receiver, transmitter, indicators, and power supply. An LED scale at the end notifies the operator when prohibited metal objects are carried through the arch. The arch detector comes with a remote control so the operator can change settings remotely.
Specifications:
- temperature range – from -20 to 70 degrees;
- humidity level – up to 95%;
- weight – 59 kg.
The Metor-6M device is equipped with an additional power supply system, which guarantees autonomous operation of the detector for eight hours. Using the remote control unit, the operator can change programming settings and transfer data from one detector to another.
Application
An arch-type detector is installed at enterprises, in crowded places, and at the border to quickly find intruders who bring weapons and other dangerous metal objects.
Areas of application of the Metor-6M metal detector:
- airports;
- train stations;
- ports;
- prisons;
- stadiums;
- enterprises.
Operating principle
The operator can change the settings independently if he has access to the control unit. He can change the sensitivity level and program.
Features of the metal detector:
- easy installation;
- clear instructions;
- built-in display;
- remote control;
- ability to change sensitivity and program;
- the ability to install several detectors in one place;
- protection of the control unit with code and password;
- auto-tuning function for sensitivity level and frequency;
- self-diagnosis;
- protection against accidental alarm activation;
- indication by light, sound;
- 9 volume levels;
- 6 types of alarm;
- throughput – up to 60 people per minute.
The device has several programs for different operating conditions, as well as over 100 sensitivity levels. The Metor 6m arch metal detector is equipped with a smart counter that accurately counts the number of people passing through the arch.
You can buy a metal detector from the SLS-GROUP company. You can place an order by phone or on the website.
Tactical and Technical Characteristics (TTX): Arched metal detector “Metor 6M”
| COMPLIANCE WITH REQUIREMENTS | |
| Safety Standards | Metor 6M complies with international safety standards person. Safe for people with pacemakers, pregnant women and magnetic storage media. |
| CE compliant | Compliant current international electrical safety and electromagnetic standards compatibility. |
| TECHNICAL SPECIFICATIONS | |
| Operating ambient temperature | -20 to 60 °C |
| Humidity | 0-95%, without condensation formation. |
| Protection class | IP 55 (EN 60529) |
| Power supply | Network voltage: 90-264 Vac current/50-60 Hz. Battery: 12 V DC Current (option). Consumption: 50W (AC), 40W (DC) fuse: TIA 5x20mm Cord length power: 2.5 m |
| Alert | Visual/audio signal. Alphanumeric display and zone display. Contact remote alarm relay group (SPDT). |
| Sensitivity | 100 levels sensitivity for each program. Separate horizontal zones; level The sensitivity of each zone is independently adjustable in the range of 0-200%. |
| Calibration | Automatic or manual. |
| Interference suppression | Digital filtering by the signal processor. Multiple operating frequencies for suppression of local electrical noise. |
| Network connection | Compatible with MetorNet remote security management system (Ethernet). |
| Dimensions | Internal: 760 (width) x 2050 (height) mm. External: 900 (width) x 2240 (height) x 700 (depth) mm |
| Gross weight and volume with packaging | General: mass gross: 75.5 kg, volume with packaging: 0.47 m3. Net weight: 58.8 kg. Reels: gross weight: 55.5 kg, volume with packaging: 0.35 m3. Cross member + electronics: gross weight: 20 kg, volume with packaging: 0.12 m3. |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
