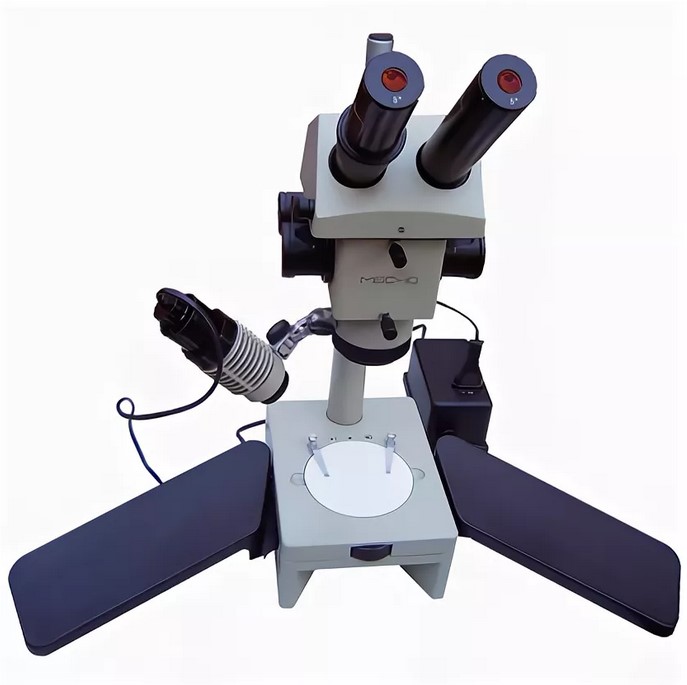

Microscope "MBS-10"
One of the most important instruments is the microscope model "MBS-10". This device allows for a thorough analysis of objects that cannot be distinguished without special equipment - be it the smallest particles of powders or liquids that are similar in appearance.
Thanks to its technical characteristics, "MBS-10" has won wide recognition among professionals, including employees of the Border Guard and Customs Services. The device is suitable for analyzing large objects, as well as small particles, including the thinnest films; it can be used to conduct research under any lighting conditions - artificial or natural, using reflected or transmitted light.
Operating principle
The operation of stereoscopic microscopes is based on the use of two lighting modes - reflected and transmitted light. Therefore, the device, including the MBS-10 model, is classified as a stereoscopic device. A special feature is the presence of two object stages, which provide the possibility of research under different types of sample illumination.
The basic layout of these optical instruments includes a metal body with a lens system located inside, located above the object stage. For binocular observation of the object under study, an attachment with a pair of eyepieces is installed in the upper part of the body, allowing observation with two eyes simultaneously.
MBS-10 is a universal research microscope, whose technical parameters allow for various scientific research. The design is thought out for maximum user convenience. Engineers have provided armrests that provide a comfortable position for your arms during long periods of work.
Safety is ensured by a clamp - it does not allow the lens to get too close to the working surface, protecting the material being examined and the table itself from damage. An important element is the rotating bracket, which allows you to adjust the angle of incidence of the light.
When working with reflected light, you need to pay attention to the correct fastening of the work table - it must be fixed on the main table of direct lighting. This installation feature ensures stability during research.

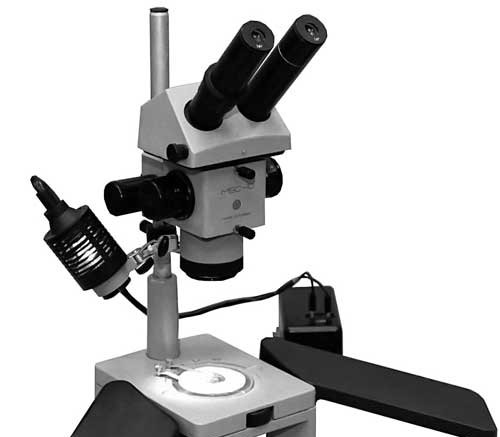

Application
The MBS-10 series microscope has a wide range of applications - from scientific laboratories to jewelry workshops. It is actively used by archaeologists in field research, biologists when studying flora and fauna, as well as forensic experts when working with prohibited substances.
The technical characteristics are impressive: the distance between the sample under study and the lens is at least 95 millimeters, and the visual field covers from 2.4 to 39 millimeters. At the same time, the device provides magnification from 4 to 100 times and weighs only 8 kilograms, which makes it quite mobile.
The MBS-10 microscope is sensitive to temperature fluctuations. After transportation or storage at low temperatures, the device requires adaptation to a warm room for correct operation of all optical elements. Air temperatures above 40 degrees may cause image distortion and damage. High-precision optical equipment requires careful handling - it is contraindicated for any kind of contamination and excess moisture in the room.
Documentation
Declaration of conformity of the EAEU for the MBS-10M microscope (binocular, stereoscopic)
Tactical and technical characteristics (TTX) of the MBS-10 microscope:
| Magnification, times | 4.6-100.8 |
| Linear field of view, mm, within | 39-2.4 |
| Working distance, mm, not less | 95 |
| Light source | Halogen lamp 12V/20W |
| Product weight, no more than kg. | 8kg (11kg per package) |
| Overall dimensions in working condition (excluding armrests, light sources, etc...), mm | 265x160x475 |
| Opening hours | Around the clock |
| Magnification range within | 2.2x - 50.0x |
| Linear field of view, within | 78.0 – 4.8 mm |
| Working distance, not less | 170 mm |
| Illumination at a distance of 150 mm from the end of the LEDs | 10000 lux |
| Supply voltage | 220V |
| Power consumption, no more | 10 W |
| Film frame size | 24 x 36 mm |
| Mounting thread for film camera | M42 x 1 mm |
| Hole diameter in the optical module for installing a digital camera | 37 mm |
| Recommended size of the receiving area (CCD matrix) of a TV camera | 1/3" |
| Connecting thread for TV camera | Sp M25.4 x 0.8 (C-mount, CS-mount) |
Equipment
Microscope
Housing with drum
Binocular attachment
Table for working in reflected light
Table for working in transmitted light
power unit
Lens f’ = 90 mm
Illuminator
Armrest – 2 pcs.
Bracket for mounting the illuminator when working in reflected light
Eyepiece 8 – 2 pcs.
Eyepiece 14 - 2 pcs.
8-piece eyepiece with scale
Eyecup – 2 pcs.
Halogen lamp 12V, 20 W
Light filter
Clamp – 2 pcs.
Slide glass
Plate
Passik
Flannel napkin
Case
Case for spare parts
Fuse link VP-1V 1.0 A/250V – 2 pcs.
Fuse link VP-1V 3.15 A/250V – 2 pcs.
Instructions for use
Warranty card
Package
Instructions for use
