Metal detector "SPHINX" VM-611RD-2.0

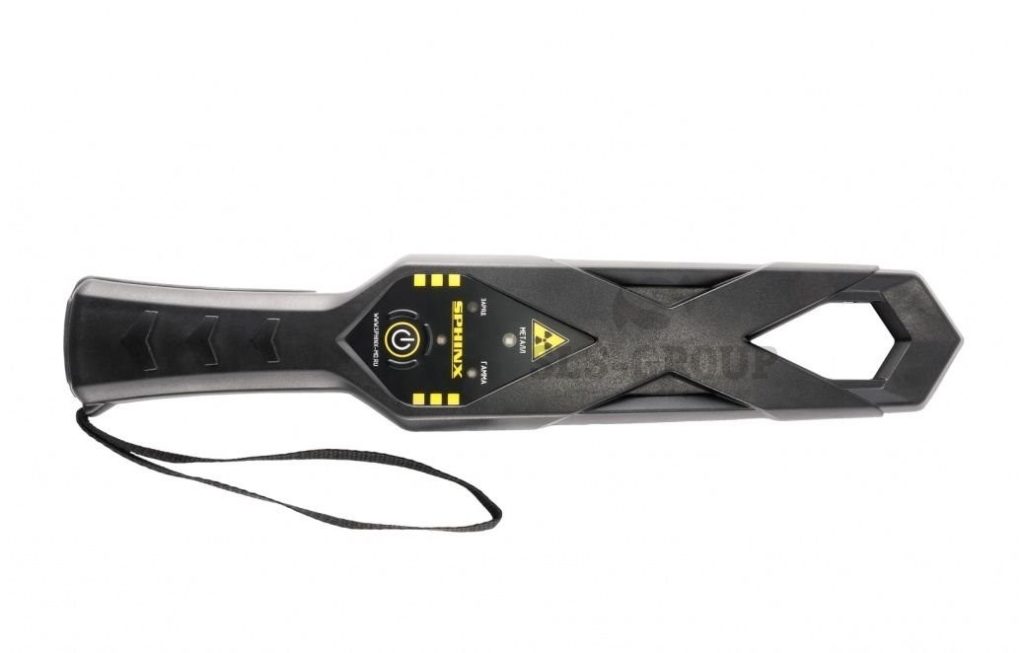

The SPHINX inspection detector of radioactive and metal objects VM-611RD-2.0 is designed for the simultaneous detection of radioactive and nuclear materials by their gamma radiation, objects made of non-ferrous and ferrous metals during personal inspection of luggage, correspondence at checkpoints of any civil or military points.
The SPHINX VM-611RD-2.0 device detects sources of radio emission and metal objects carried by people: weapons, radioactive containers.
The model solves current problems related to countering the unauthorized movement of radioactive and nuclear materials.
The “SPHINX” VM-611RD-2.0 device is used by enterprises of the nuclear industrial complex, customs control and inspection services, departments of the Ministry of Internal Affairs and the FSB, security companies, and other services as a portable means of detecting materials from ferrous and non-ferrous metals.
Peculiarities:
- high sensitivity;
- simultaneous availability control radioactive and metal objects;
- automatic setting sensitivity;
- low power consumption;
- identification of all types of metals;
- bright light and sound detection indication;
- ease of use;
- no false positives;
- recharging the battery without it dismantling;
- shockproof housing;
- low battery indication;
- ergonomic design.
Tactical-Technical characteristics (TTX):
| TECHNICAL CHARACTERISTICS | |
| Operating frequency, kHz | 50 |
| Probability of detection, % | 98 |
| PM detection, mm | 160 |
| Gamma radiation detector (scintillator) | |
| Energy range of recorded gamma radiation, MeV | from 0.03 to 3 |
| Pulse sensitivity of the detector (according to Cs137), pulse/s / µSv/h | 200 |
| Limits of permissible basic relative measurement error (via Cs137 line), no more, % | ±30 |
| DER response threshold, µSv/h* | 0.3 |
| Frequency of false alarms in the Y-radiation search mode | not more than one trigger at level U-background 0.1 – 0.2 µSv/h in 10 minutes |
| Power, V | 9 |
| Continuous operation time (using U9VL-J 9V), h | 120 |
| Current consumption, mA | 10 |
| Low battery indication threshold, V | 6.5 |
| Operating temperature range, C° | from -15 up to +50 |
| Dimensional dimensions (L×W×T), mm | 420×80×30 (±5) |
| Weight, g | 380 |
*can be changed at customer's request.
Equipment VM-611RD-2.0
- Device;
- Instructions;
- Battery 9 V;
- Charger 220V;
- Belt fastening.
