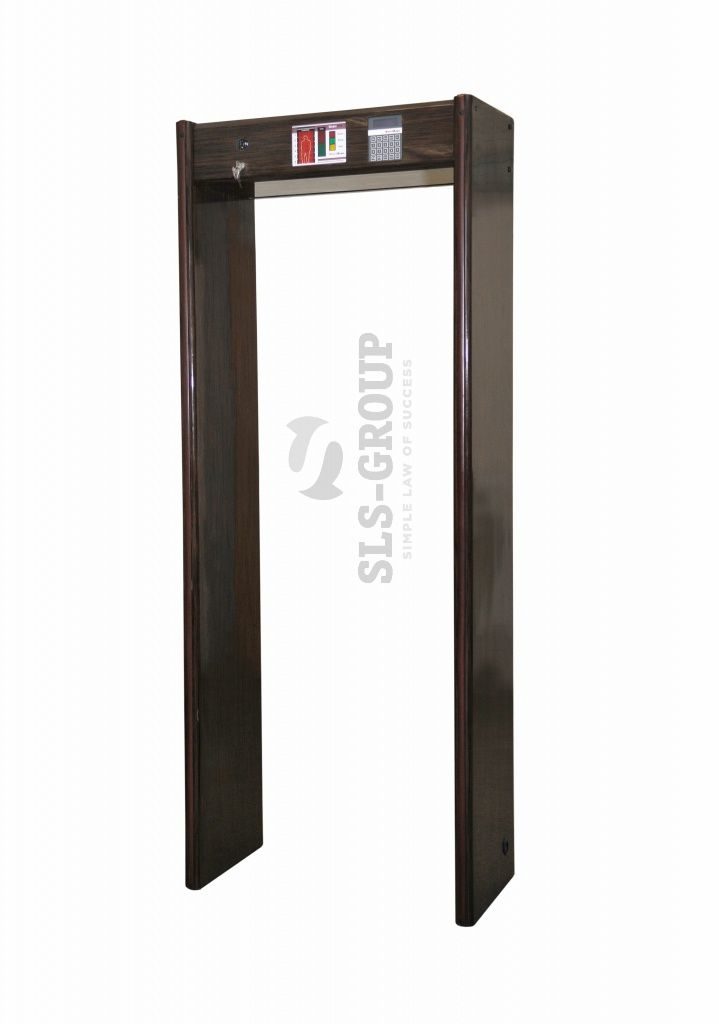

Stationary metal detector “SmartScan B18EX”
Arched metal detector SmartScan B18EX is an eighteen-zone detector with the ability to select any cladding according to customer requirements. The cladding materials can be the following: CPL plastic (continuous pressing laminate), mirror HPL (laminated paper laminate) plastic, natural veneer.
In Russia, stationary SmartScan detectors are famous for their high quality and advanced functionality. Important quality: the B18EX stationary metal detector model has all the advantages of the other metal detectors in the series. The equipment has a precision selection function, that is, the device reacts separately to non-ferrous, ferrous or mixed metals. Selection is carried out separately in each zone of the metal detector, so you can accurately determine the location of a dangerous object and quickly detect it.
In addition to the 22 built-in selection programs, the device has 4 additional programs, which allows you to conduct examinations under specific operating conditions.
Performance characteristics (TTX): Stationary metal detector “SmartScan B18EX”
| Number of detection zones | 18 |
| Selection | separately non-ferrous and ferrous metals |
| Productivity, person/hour | 3600 |
| Number of sensitivity levels | 100 |
| Number of installed programs | 22 |
| Creation of own programs by the operator | 4 programs |
| Degree of object localization | accurate |
| Design | 115 colors + additional options at customer's choice |
| Sensitivity Setting | 1…99%, in 1% increments |
| Automatically adjust metal detector sensitivity | Available |
| Independent sensitivity adjustment | Separate, ±99% relative to base |
| Offline option | at least 8 hours |
| Ability to synchronize multiple detectors for simultaneous operation | The minimum distance between models is 70 cm. |
| Operating temperature, ° C | -35°…+55° |
| Dimensions | 2210 x 850 x 410 mm. |
| Tunnel internal dimensions | Passage width -762 mm (standard); 820 mm (optional) |
| Guarantee | 3 years |
| Average service life | 10 years |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
