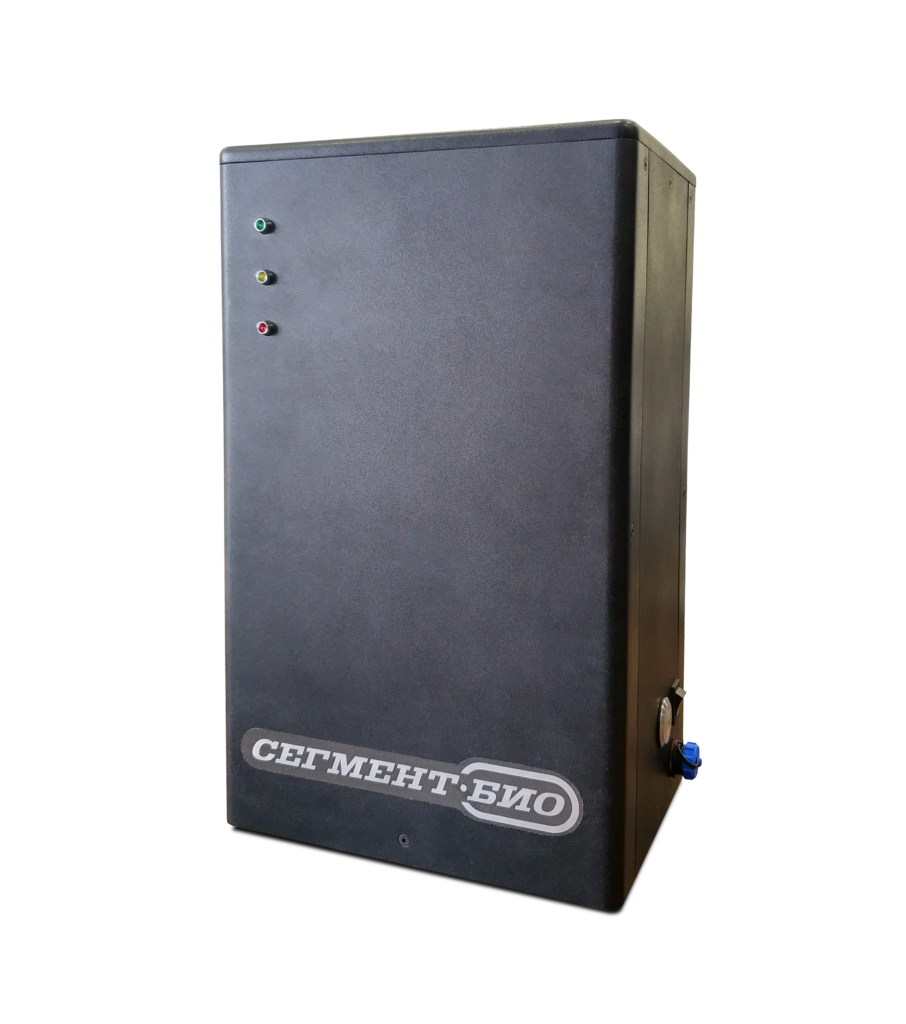

BIO segment
Price on request:
Request a price
Operational control and monitoring of bioaerosols and microbial air pollution in any place where protection of human health and life is required. Developed jointly with the Ministry of Health of the Russian Federation.
ADVANTAGES:
- Continuous rapid air analysis to indicate pathogenic biological agents.
- Speed: 15 seconds.
- Detectable biological agents: any bioaerosols with a characteristic particle size of 1-10 microns.
- Does not require expensive consumables.
- Bioaerosol detection threshold: 5×10-5mg/l.
- Continuous operation time: 45 days.
Performance characteristics: BIO segment
| Parameter | Meaning |
| LED source wavelength | 280 nm, 365 nm |
| Size range of analyzed aerosol particles | 1-10 µm |
| Volumetric air flow rate | up to 20 l/min when working with a concentrator, 1 l/min without a concentrator |
| Number of light scattering registration channels and their spectral characteristics | one (280 ± 10nm) |
| Number of fluorescence registration channels and their spectral characteristics | four (300-355, 375-400 nm) (400-500 nm) (500-600 nm) |
| Type and number of photodetectors and their operating mode | 4 four photomultiplier tubes, photon counting mode with thermal stabilization |
| Performance | no worse than 15 s |
| The detection threshold for biological aerosols in the absence of aerosol and gaseous interfering impurities in the air is at least 200 particles per liter, corresponding to the mass concentration of particles containing viruses, vegetative and spore forms of bacteria, bacterial toxins (botulinum toxin) | at least 1×10-6mg/l, rickettsia not less than 5×10-5mg/l |
| The threshold for detecting biological aerosols in the presence of aerosol and gaseous interfering impurities in the air with a concentration of up to 1×10-2mg/l | at least 5×10-5mg/l |
| Probability of detecting biological aerosols in concentrations corresponding to the sensitivity threshold | not less than 0.95 |
| Probability of false alarms in the absence of biological aerosols in the air | no more than 0.05 |
| Operating conditions temperature,оC relative humidity, % | from -20 to +30 from 30 to 98 (at +25оWITH) |
| Power supply | 220 V, 50 Hz or from battery |
| Time to enter mode at temperature from 0 to + 30оС | no more than 20 minutes |
| Time to enter mode at temperature from 0 to – 20оС | no more than 50 minutes |
| Continuous operation time | up to 45 days |
| Availability of geopositioning | GPS/GLONASS |
| Availability of communication ports | two USB ports, Ethernet port |
| Availability of built-in non-volatile memory | 4 GB |
| Power consumption | up to 80 W |
| Weight | 4.9 kg |
