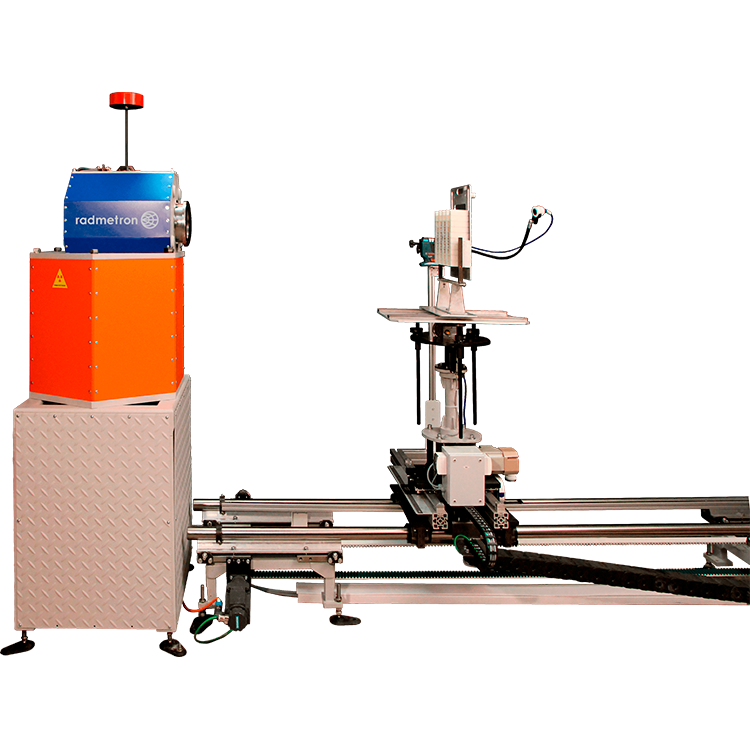

Automated gamma radiation dosimetric installation UDGA-RM9100
Description
The installation is designed for verification, calibration, calibration and testing in a collimated beam of gamma radiation (created by reference sources 241Am, 137Cs, 60Co and others) of instruments for measuring exposure dose and exposure dose rate, kerma and kerma rate in air, ambient dose equivalent and ambient dose equivalent rate, individual dose equivalent and individual dose equivalent rate.
The installation is safe for personnel and the public. Radiation exposure during operation, malfunction or accident is limited to the working chamber.
The installation is intended for laboratories of metrological services and enterprises involved in the development and production of dosimetric equipment.
Operating principle
The installation implements an irradiation scheme with one fixed multi-position irradiator and a system of linear movement of the work table (SLM). Changing the values of dosimetric quantities reproduced in the installation is achieved by using gamma radiation sources of various activities and changing the distance between the source and the detector within the range of operating distances of the installation. Control of the selection of a source in the irradiator drum, the output of the selected source to the working position and the positioning of the device under test in the radiation beam of the installation is carried out by the operator remotely from the installation control panel or using special metrological software installed on a PC.
Advantages
- The operation of multi-position irradiators MO12 and MO14 with radiation sources is carried out remotely
- The design of the unit ensures its safe operation in any emergency situations
- All parts and assemblies of the irradiator that are in contact with sources do not require maintenance during the entire service life of the installation
- The use of cylindrical guides, bearing supports and a toothed belt ensures positioning accuracy, high speed and silent operation of the linear motion system (LMS)
- The procedure for measuring the anisotropy of sensitivity of dosimeters has been automated
- It is possible to remotely (from the operator’s room) connect various stands and devices installed on the desktop
- The installation control system, based on industrial automation, ensures reliable and trouble-free operation for the entire life of the installation
- The unit's control panel display has a simple, intuitive and clear menu. For more convenient operation, various text messages about violations and prompts for the operator in case of incorrect actions are displayed on the display
- Alarm and interlock systems, together with the installation control system and radiation monitoring system, ensure personnel protection from radiation exposure
Automatic calibration mode
Special software, in addition to the manual mode, provides an automatic calibration mode.
During automatic calibration, the operator needs to select one of the available programs (or set his own), register the device being calibrated in the system, insert it into the cassette and install it on the rotary table. The installation performs all other processes automatically.
The verification results are formalized by issuing a verification certificate in accordance with TKP 8.003-2011. The certificate contains the following information: details of the laboratory conducting the calibration and contacts of the customer company, information about the device being calibrated, conditions for calibration, information about the accreditation of the calibration installation and a table with data on the calibration results.
Available modifications
The installation is available in two modifications:
- UDGA-PM9100 (MO14 irradiator)
- UDGA-PM9101 (MO12 irradiator)
PM9101 differs from PM9100 in the use of radionuclide gamma radiation sources with lower activity.
Scope of delivery
- Multi-position irradiator MO12 (for PM9101) or MO14 (for PM9100)
- Illuminator Accessory Kit
- Work table linear motion system
- Laser adjustment system for the device on the desktop
- Installation control system
- Radiation safety system
- Radiation monitoring system
- CCTV system
- Intercom between the working chamber and the operator's room
- Automated operator workstation (AWS)
- Special software for automating instrument calibration and verification procedures
- Set of working accessories
Instructions for use
| EDR radiation, no more |
|
||||
| Dimensions and weight of the installation control station | 1500x800x500 mm, 150 kg | ||||
| Atmospheric pressure | from 84 to 106.7 kPa | ||||
| Relative humidity | from 45% to 80% | ||||
| Operating temperature range | (20±10)о С | ||||
| Relative error in determining the distance from the center of the source to the center of the dosimetric detector device, no more |
±0.15% | ||||
| Collimator channel length (from source center) |
|
||||
| Confidence limits of relative errors of units of kerma power in air (MCP), exposure power dose (DER) with a confidence probability of 0.95 when certifying the installation as |
|
||||
| Confidence limits of relative errors of units of ambient dose equivalent rate (AEDR), power individual dose equivalent (IDE) with a confidence probability of 0.9 when certifying the installation as |
|
||||
| Collimator channel outlet diameters |
|
||||
| Dimensions and weight of the installation control panel | 500x400x120 mm, 9 kg | ||||
| Dimensions and weight of the linear movement system of the desktop, no more | 8300x1150x1500 mm, 450 kg | ||||
| The height of the irradiation beam axis above the floor level | 1500 ± 30 mm | ||||
| Interval of movements of the desktop relative to the center of the moving platform, not less |
|
||||
| Dimensions and weight of the irradiator | 640x730x1800 mm, 1400 kg | ||||
| Average service life | at least 15 years | ||||
| Discreteness of setting the angle of rotation of the desktop | 1o | ||||
| Moving platform speed (X axis) | from 0.5 mm/s to 0.5 m/s | ||||
| Interval of working distances (along the X coordinate) from the center of the source to the detector of the dosimetric device | from 500 to 7000 mm | ||||
| The interval of movement of the working table (along the X coordinate) from the center of the source to the detector of the dosimetric device | from 350 to 8000 mm | ||||
| Time to establish operating mode, no more | 1 min | ||||
| Number of sources | Up to 6 pcs. | ||||
| Recommended room dimensions for installation |
|
||||
| Angle of rotation of the desktop around the vertical axis relative to the initial position | 360o | ||||
| Supply voltage | from a three-phase AC mains voltage (400±40) V or from a single-phase AC mains (230±23) Vs frequency (50±1) Hz |
||||
| Time to transfer the source to the working position, no more | no more than 15 s | ||||
| Time of continuous operation of the installation, not less | 24 hours | ||||
| Weight of equipment installed on |
|
