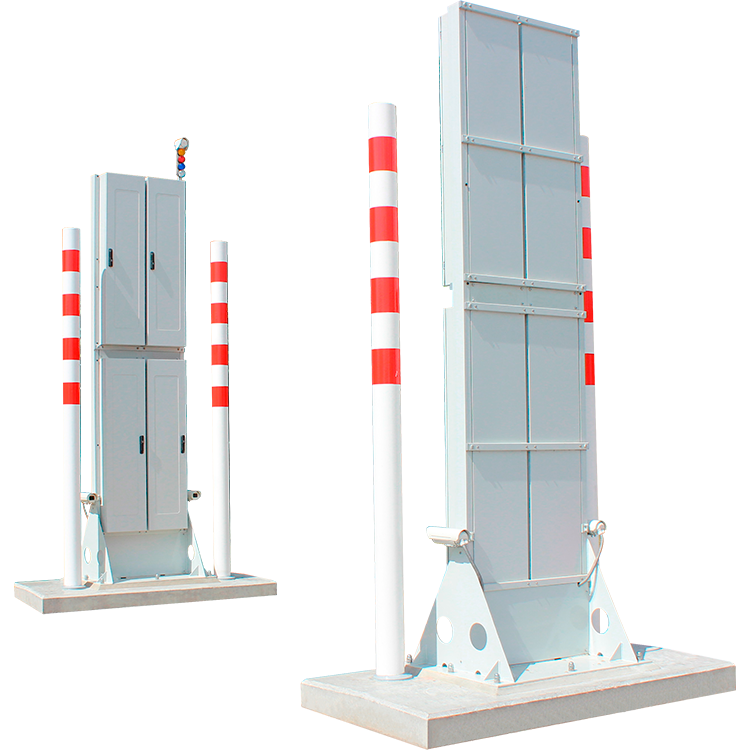

Radiation monitoring unit URK-PM5000B
Description
The PM5000B series of radiation portal monitors are highly sensitive stationary systems designed to provide control over the movement of radioactive materials. Gamma, neutron and gamma-neutron radiation monitors are recommended for monitoring passenger cars and trucks, as well as trains.
Monitors can be installed at border and customs checkpoints; at facilities using or producing nuclear materials; during incoming control at enterprises using or processing secondary raw materials, to prevent radiation sources from entering technological processes.
Operating principle
The monitors are mounted on bases on the ground and are designed for use in adverse climatic conditions. Monitors can have different heights of the control zone and monitor gamma, neutron or both types of radiation simultaneously. Car monitors can be equipped with video surveillance systems and provide data exchange with a PC.
Advantages
- Improved sensitivity with larger volume detectors
- Application of the latest technologies and data processing algorithms
- Modular construction principle
- Sound and light alarm
- 24/7 operation with measurement history recording
- Possibility of connecting a video surveillance system
- The ability to combine monitors into a single network with control from one computer and subsequent integration into a higher-level network with control from a command center of expertise
Automated workstation
An automated workstation makes it possible to remotely change the parameters and operating modes of the monitor, as well as read and display information from the monitor’s RAM
Software
The software for working with portal monitors performs the following functions:
- remote monitoring of the status of portal monitors
- identification of the object that caused the trigger
- automatic report generation
- ability to transfer data to a remote command center
Available modifications
- URK-RM5000V-01 – double-sided gamma monitor consisting of four detection units
- URK-RM5000V-05 – double-sided gamma monitor consisting of two detection units
- URK-RM5000V-09 – double-sided gamma neutron monitor, consists of two gamma radiation detectors and two neutron radiation detectors based on 10B/ZnS(Ag)
- URK-RM5000V-10 – double-sided gamma neutron monitor, consists of four gamma radiation detectors and four neutron radiation detectors based on 10B/ZnS(Ag)
- URK-RM5000V-13 – double-sided neutron monitor, consisting of two neutron radiation detectors based on 10B/ZnS(Ag)
- URK-RM5000V-14 – double-sided neutron monitor, consisting of four neutron radiation detectors based on 10B/ZnS(Ag)
- URK-RM5000V-16 – double-sided gamma monitor consisting of 8 detection units
PM5000BM series units
The PM5000BM series units are measuring instruments
- URK-RM5000VM-01 – double-sided gamma monitor consisting of four detection units
- URK-RM5000VM-05 – double-sided gamma monitor consisting of two detection units
- URK-RM5000VM-09 – double-sided gamma neutron monitor, consists of two gamma radiation detectors and two neutron radiation detectors based on 10B/ZnS(Ag)
- URK-RM5000VM-13 – double-sided neutron monitor, consisting of two neutron radiation detectors based on 10B/ZnS(Ag)
- URK-RM5000VM-14 – double-sided neutron monitor, consisting of four neutron radiation detectors based on 10B/ZnS(Ag)
| Type of detected radiation | gamma | ||||||||||||||||||||||||||
| Exchange of information with PC | Ethernet port with a cable up to 100 m long, a distance of up to 1000 m is possible using special equipment data transmission |
||||||||||||||||||||||||||
| Alarm type | sound and light | ||||||||||||||||||||||||||
| Housing protection degree | IP65 | ||||||||||||||||||||||||||
| Atmospheric pressure | from 84 to 106.7 kPa | ||||||||||||||||||||||||||
| Relative humidity | 98% at plus 40 °C | ||||||||||||||||||||||||||
| Operating temperature range | -30 to +50 °C | ||||||||||||||||||||||||||
| Weight | no more than 610 kg | ||||||||||||||||||||||||||
| Source speed, km/h, no more | 8; 20 | ||||||||||||||||||||||||||
| Average service life | at least 8 years | ||||||||||||||||||||||||||
| Number of false positives | 1/1000 | ||||||||||||||||||||||||||
| Minimum detectable quantities of radioactive materials in a control area of 6 x 4.5 m |
|
||||||||||||||||||||||||||
| Number of detection units | 4 | ||||||||||||||||||||||||||
| Supply voltage | industrial AC network 115-230 V., 47-63 Hz. or built-in 12V DC battery (backup power for at least 8 hours) |
