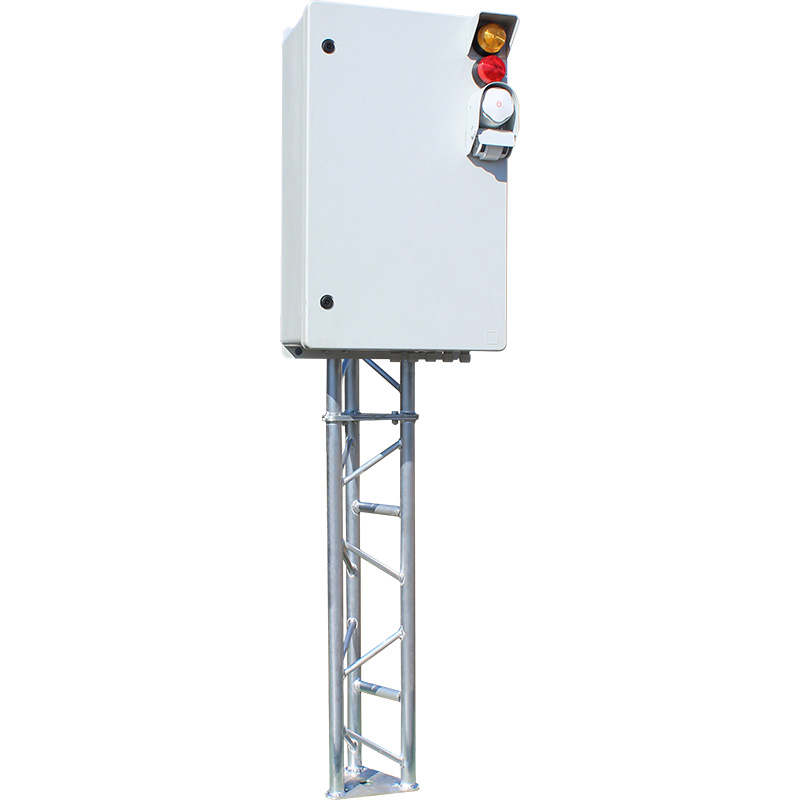

Radiation monitoring units URK-PM5000K series
Purpose
Portal radiation monitors of the URK‑PM5000K series are highly sensitive stationary systems designed to provide radiation monitoring of road and rail transport, passengers and baggage at stationary checkpoints.
PM5000K units can be installed both indoors and outdoors.
When radioactive and nuclear materials are detected in the controlled area or the background value of gamma radiation changes, a light and sound alarm is activated, and the corresponding information is displayed and saved on the computer connected to the installation.
The URK-RM5000KM installations are a measuring instrument.
Peculiarities
- High sensitivity due to the use of large volume detectors
- Easy installation (can be performed by personnel without special training)
- Sound and light alarm on the body and optional remote alarm unit
- Possibility of connecting a video surveillance system to photograph the object that caused the alarm
- Exchange of information between units and transfer of data to a PC via local Ethernet or WiFi network
- Possibility of combining installations into a single network with control from one PC
- 24/7 automatic operation with measurement history recording
- Designed taking into account the requirements of GOST R 51635-2000
- Can be used to control scrap metal in accordance with the requirements of SNiP RB dated March 11, 2016 and SanPiN RF 2.6.1.993-00
- Suitable for use in difficult climatic conditions
Application
- Border and customs checkpoints and control
- Airports, railway stations and seaports
- Mining, processing and storage enterprises
radioactive and nuclear materials - NPPs and nuclear industry enterprises
- Petrochemical and metallurgical industry
- Medical and research institutions
- Government buildings, banks, postal terminals
- Waste processing plants and landfills
- Mining industry
Objects of control
- Trains
- Trucks and cars
- Mail and luggage
- Pedestrians
URK-РМ5000К-01 (РМ5000КМ-01) corresponds to the VITγ category of transport monitors according to GOST R 51635-2000.
URK-RM5000K-02 (RM5000KM-02) correspond to the IVTγ category of transport monitors according to GOST R 51635-2000.
The installations detect a batch of contaminated materials, the MMED of gamma radiation near the surface of which (minus the contribution of the natural background)
exceeds 0.2 μSv/h.
The installations detect local sources, the DER of gamma radiation at a distance of 10 cm from which exceeds 1 μSv/h.
| URC execution option | Location of detection blocks | Ryam movement speed, km/h no more |
Control zone parameters W × H, м |
Minimum detectable amounts of radioactive and nuclear materials at a gamma background of 0.1 μSv/h and false alarm rate no more than 1/1000 |
|||||
| 133Ba, kBq (μCi) |
137Cs, kBq (μCi) |
60Co, kBq (μCi) |
238U, g | 235U, g | 239Pu, g | ||||
| (calculated values) | |||||||||
| РМ5000К-01 РМ5000КМ-01 |
▌ | 15 | 6 × 3 | 1350 (36.5) |
1470 (39.7) |
760 (20.5) |
11 300 | 2 475 | 20 |
| ▌ | 15 | 3×3 | 610 (16.5) |
670 (18.1) |
350 (9.5) |
3 875 | 665 | 7.2 | |
| ▌ | 10 | 3×3 | 500 (13.5) |
550 (14.8) |
285 (7.7) |
2 820 | 475 | 5.3 | |
| ▌ | 5 | 1.5 × 3 | 135 (3.6) |
150 (4.1) |
78 (2.1) |
345 | 60 | 1 | |
| ▌ | 5 | 1×3 | 80 (2.2) |
88 (2.4) |
46 (1,2) |
175 | 21 | 0.5 | |
| ▌ | 10 | 3 × 3.5* | 670* (18.1) |
740* (20) |
385* (10.4) |
4 470* | 785* | 8.2* | |
| РМ5000К-02
РМ5000КМ-02 |
▌▐ | 15 | 6 × 3 | 315 (8.5) |
390 (10.5) |
190 (5.1) |
1 280 | 225 | 2.7 |
| ▌▐ | 15 | 3×3 | 165 (4.5) |
200 (5.4) |
95 (2.3) |
455 | 85 | 1.2 | |
| ▌▐ | 10 | 3×3 | 135 (3.6) |
165 (4.5) |
80 (2.2) |
345 | 60 | 1 | |
| ▌▐ | 5 | 1.5 × 3 | 40 (1.1) |
50 (1.4) |
24 (0.6) |
62 | 6.1 | 0.2 | |
| ▌▐ | 10 | 3 × 3.5* | 215* (5.8) |
265* (7.2) |
130* (3.5) |
675* | 130* | 1.7* | |
* The source is shielded with 1 mm thick steel and moves in the minimum sensitivity zone.
DER measurement range:0.1 – 50 µSv/h
Energy range of recorded gamma radiation:
from 60 keV to 3.0 MeV
Power supply:AC mains 90-132 or 180-264 V, 50/60 Hz or from built-in rechargeable battery 12 V
for 4 hours (backup). Power consumption no more than 80 W.
Housing protection degree:IP55
Working conditions
- temperature range: -30°C to 50°C
(when using heating option -50°C to 50°C) - relative humidity: up to 98% at 40°C
- atmospheric pressure: from 84 to 106.7 kPa
