PRS KhimExpert-T – portable Raman spectrometer
Description
PRS "ChemExpert-T" - portable Raman spectrometer for transport and industrial safety
PRS "ChemExpert-T" is a portable Raman spectrometer for security purposes. It helps recognize hazardous chemical agents and biological toxins. The device is used at transport infrastructure facilities and sensitive areas.
The device is used for screening hand luggage, personal belongings and cargo. It is suitable for monitoring liquids in packaging: water, drinks, alcohol. The device works indoors, in warehouses and outside.
Purpose and scope of application
The model is in demand where quick control is needed. The check is carried out without opening the container and taking samples. This is convenient for security services and enterprises.
- transport infrastructure facilities (airports, train stations, metro);
- theaters, concert halls, stadiums and crowded places;
- educational and medical institutions;
- industrial and warehouse complexes;
- pharmaceutical and chemical industry;
- security units and security services;
- objects of the military-industrial and fuel-energy complex.
The device is suitable for monitoring flammable and flammable liquids. It is also used to check packaging containers and cargo.

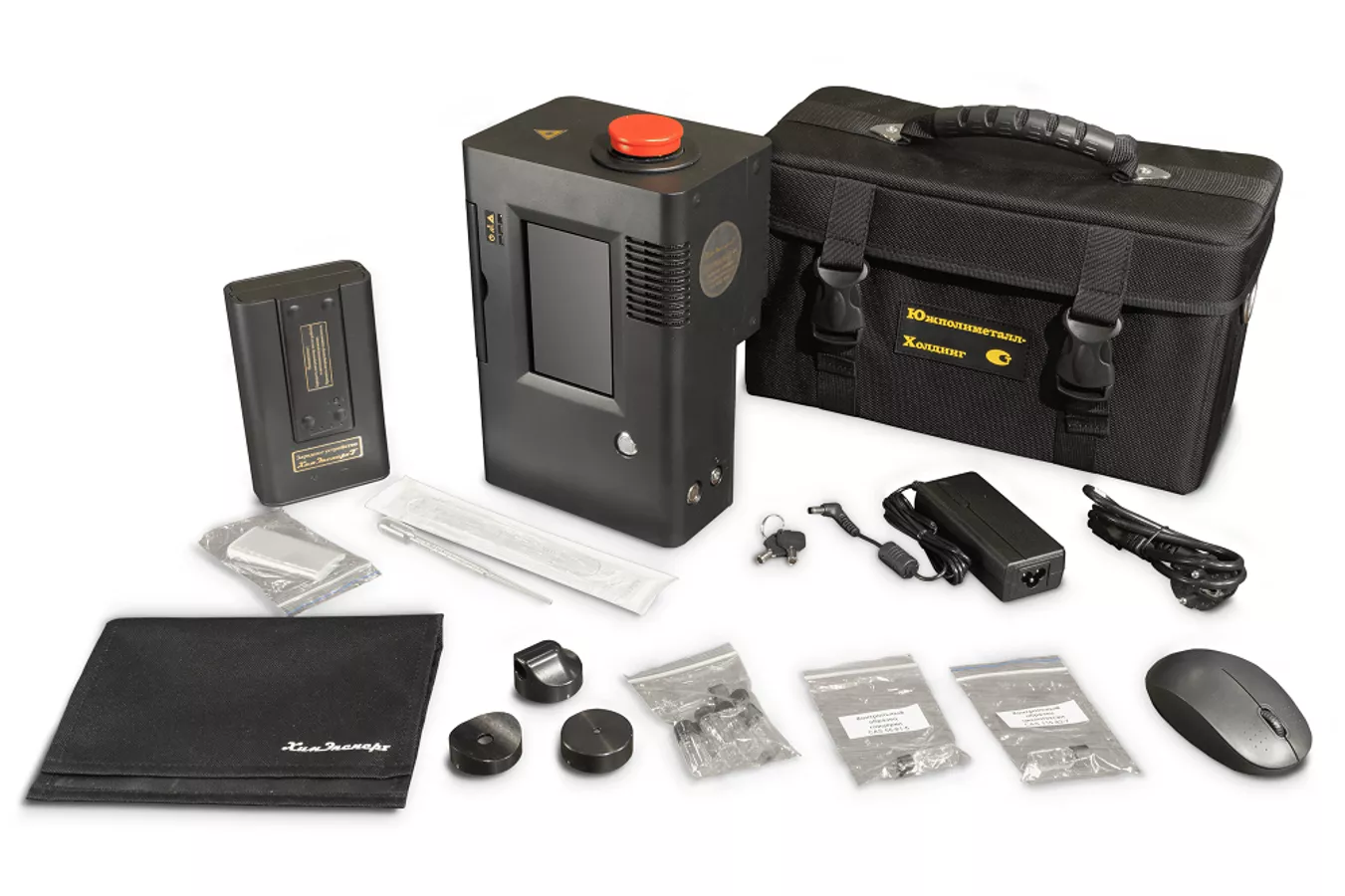

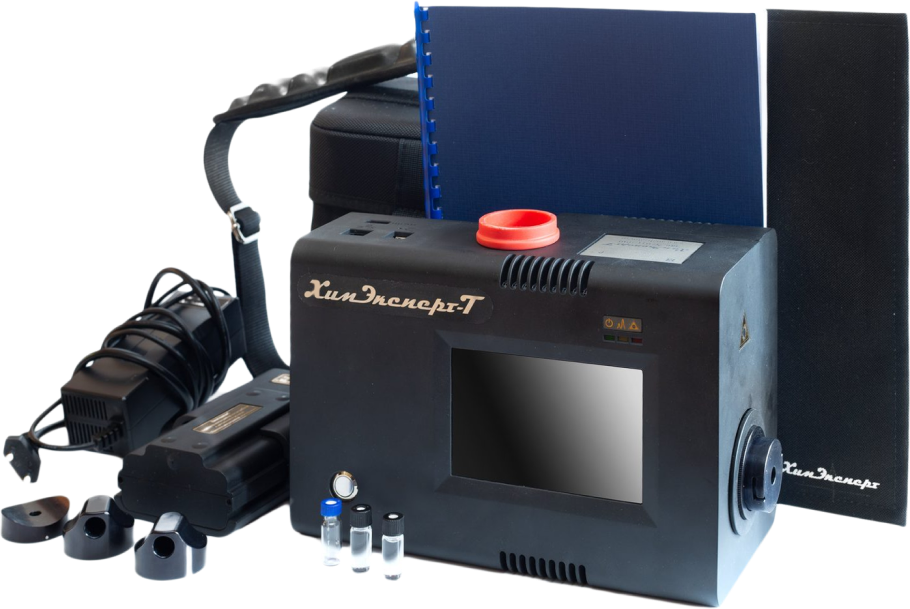

Photo "ChemExpert-T": appearance and delivery set
Operating principle and connection identification

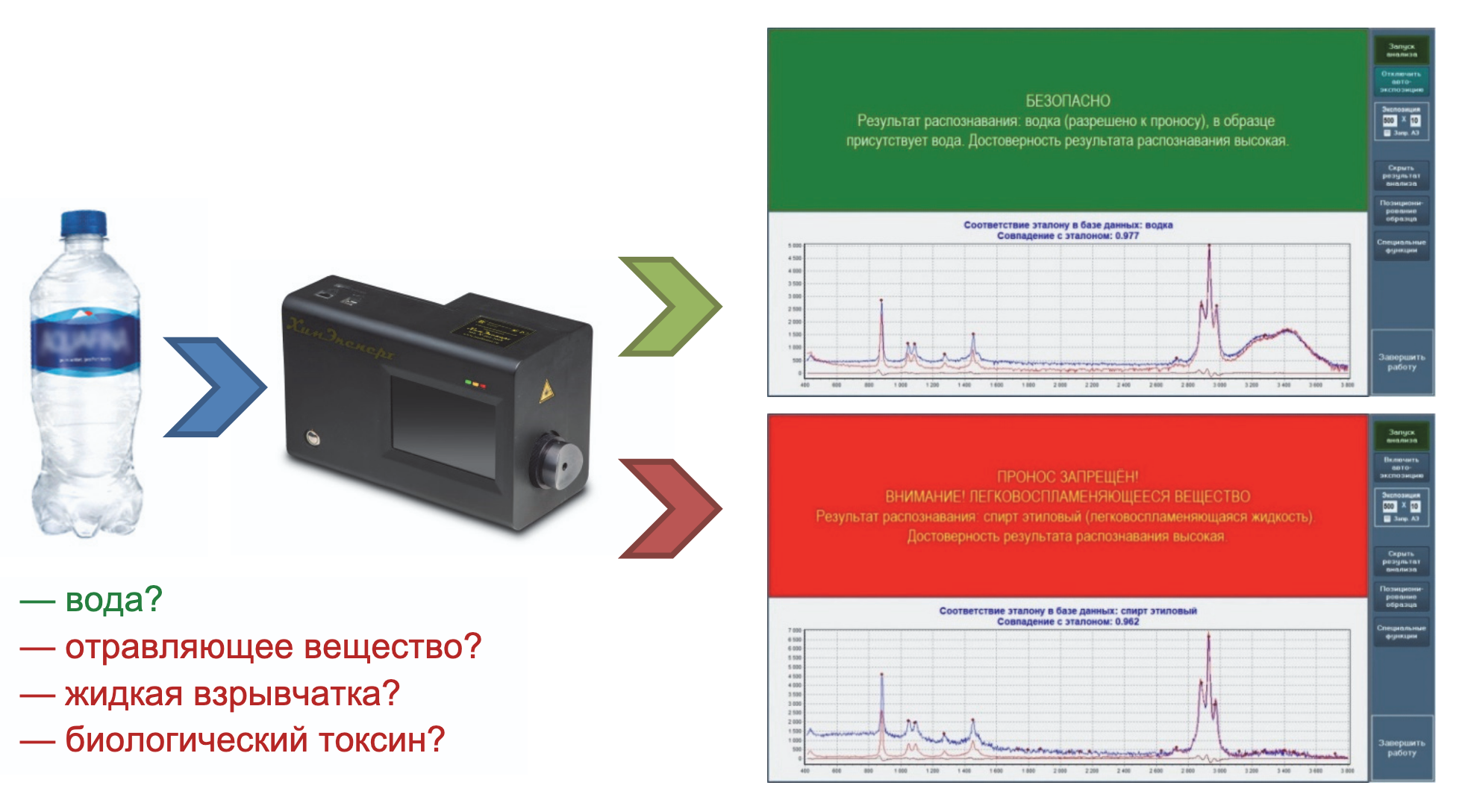

It is based on the Raman spectroscopy method. The device generates the spectral response of the object. Next, the data is compared with libraries.
The results are displayed. Data transmission via a communication channel is possible. The control is completed in a short time.
What substances does ChemExpert-T determine?
The spectrometer covers a wide range of items. Sets of libraries are selected to suit the customer's needs. Specify the list of available categories when ordering.
- toxic poisonous chemically active substances;
- hazardous biological agents and biological toxins;
- narcotic drugs and psychotropic substances;
- substances and their precursors;
- flammable and flammable liquids;
- products of the chemical and pharmaceutical industries.
Libraries can be updated and expanded. The selection is made individually for the object.
Key advantages of the device
- portable design and autonomous operation;
- impact-resistant plastic case, protection class IP67;
- control without opening the package;
- zero cost per measurement;
- interfaces USB, Bluetooth, Ethernet, Wi-Fi;
- simple operation and quick start;
- complies with standards, certificate 969.
The model is convenient for field operations and sensitive facilities. It is suitable for integration into security processes.
Equipment and delivery
The standard kit includes the device and batteries. Also included is a charger, case and documentation. The complete set and total weight of the kit with packaging containers is specified when ordering.
We provide documents: invoice, invoice, invoice, contract. Please check with the manager for the cost and delivery time.
How to buy HimExpert-T in Moscow
To order, fill out the form on the website, write to us by email or call us.
Upon receipt of the shipment, inspect the packaging for integrity. Make sure the package contents are as stated. When delivering to another address, please provide details in advance.
We will help you choose the optimal package to meet the regulations. We will prepare a commercial offer and documents.
Questions and answers about ChemExpert-T
For what tasks is the KhimExpert-T PRS suitable?
The device is used for inspection and control of suspicious substances in hand luggage, luggage, personal belongings and other material objects. Suitable for transport infrastructure facilities, sensitive areas and crowded places.
What objects can be analyzed?
Liquids, powders and solids, including those in packaging, are suitable for analysis. It is possible to check the contents without sampling and without contact with the substance, including analysis through a sealed container.

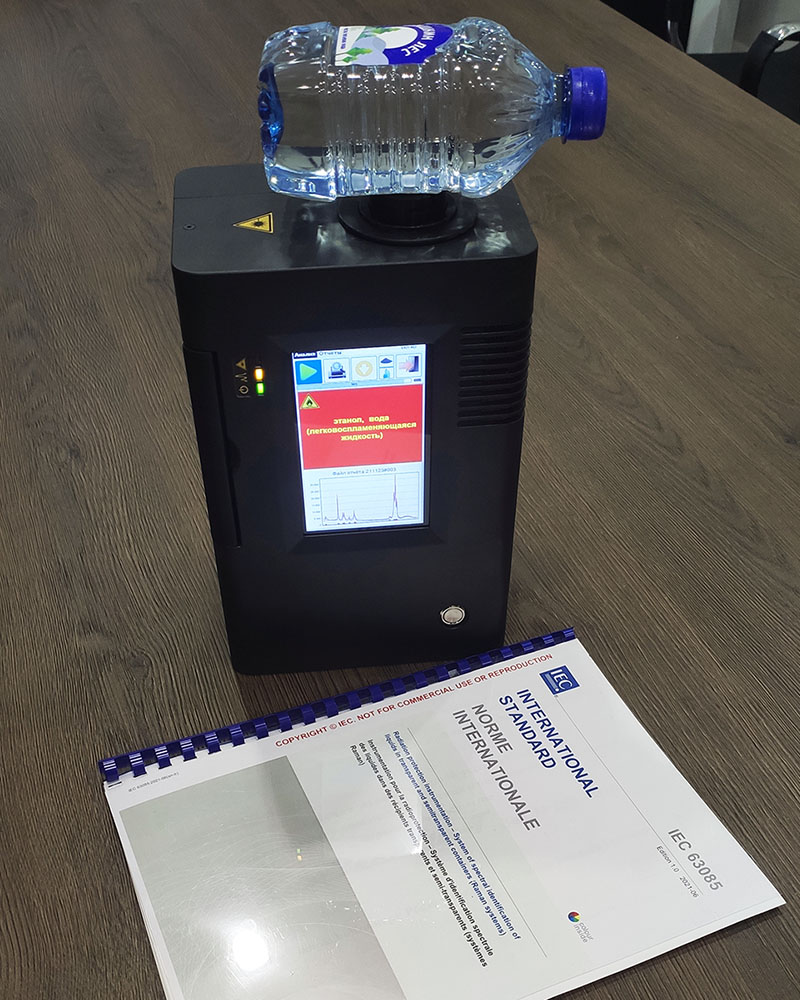

Is it possible to check liquids in bottles without opening them?
Yes. It is possible to identify the contents through transparent and colored glass, as well as through translucent plastic packaging, which is convenient for inspecting liquids in containers.
How long does a measurement take?
Analysis time usually ranges from 5 to 60 seconds depending on the object and mode. The results are displayed on the device display.
What categories of substances does the device recognize?
The device recognizes dangerous chemical agents, dangerous biological agents, explosives, combustible and flammable substances, as well as narcotic drugs, psychotropic substances and their precursors. Additionally, libraries are available for chemical and pharmaceutical products, as well as control of water, beverages and alcohol.
Does ChemExpert-T comply with transport safety requirements?
"ChemExpert-T" is a certified technical means of ensuring transport safety and meets the requirements for the functional properties of TSOTS, approved by Decree of the Government of the Russian Federation No. 969.
How are the results transmitted and are there communication interfaces?
The results are displayed on the display, and data transmission via wired or wireless communication channel is also possible if there is a connection. Ethernet, USB, Bluetooth and Wi-Fi interfaces are supported.
How to order "ChemExpert-T" and receive a CP?
Leave a request on the website or contact the manager. We will clarify the task and equipment, prepare a commercial proposal and documents. Delivery within Moscow and dispatch within the Russian Federation are available.
Tactical and technical characteristics of the KhimExpert-T (TTX) spectrometer:
| Operating principle | Raman spectroscopy (Raman spectroscopy) |
| Mobility | Portable portable |
| Detection of mechanical and electronic devices | No |
| Explosive Detection | Yes |
| Drug detection | Yes |
| Detection of chemically hazardous substances | Yes |
| Indication of liquid in the vessel | Yes |
| Certificate 969 | Yes |
| Objects for analysis | Liquids, powders, solids, including in transparent packaging |
| Taking measurements | Without interaction with the substance, incl. through a sealed container |
| Analysis time, sec | from 5 to 60 |
| Analysis Modes | Simple identification of substances from the database; identification by prohibited/allowed libraries (ChemExpert-RSI) |
| Laser wavelength, nm | 532 |
| Spectral resolution, cm-1 | 5–8 |
| Spectral range, cm-1 | 100–4000 |
| Laser source power, no more than, mW | 30 |
| Alert signal | Display display; transmission via wired or wireless communication channel |
| Interfaces | USB, Bluetooth, Ethernet, Wi-Fi |
| Battery life, hour | up to 8 |
| Dimensions (L×W×H), mm | 270×160×130 |
| Weight, kg | 3 |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
