Arched metal detector BLOKPOST RS-0300 M

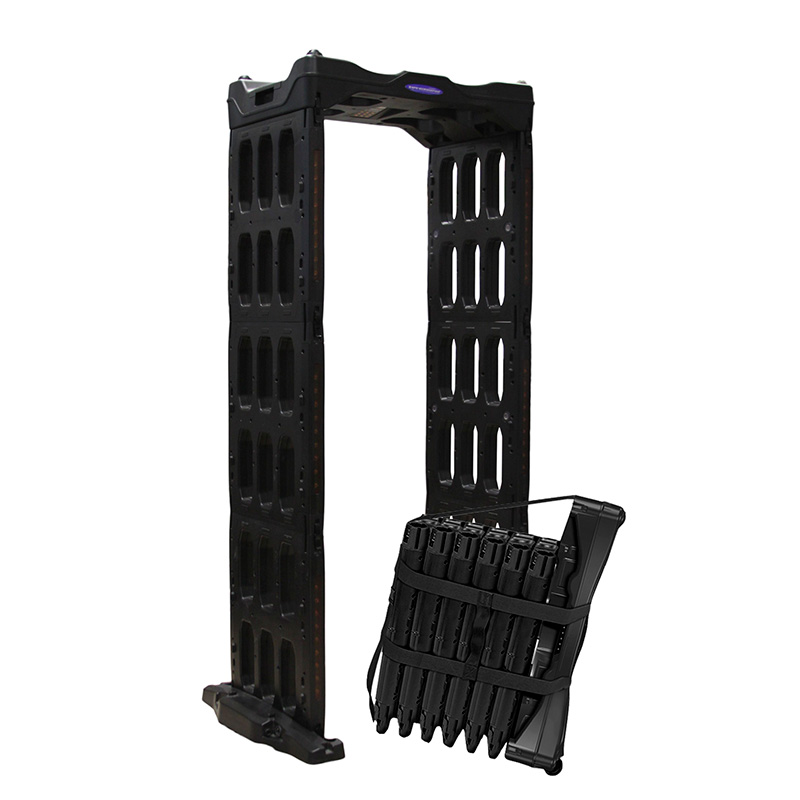

The BLOCKPOST RS-0300 M model is presented in a collapsible form. The three-zone metal detector is assembled and disassembled into 7 parts in 2 minutes. The BLOKPOST RS-0300 M model is made of heavy-duty, waterproof PVC material that protects electrical circuits, which allows it to be used both indoors and outdoors. Degree of dust and moisture protection – IP-55. Easy to use and configure. The presence of LED indicators located on the side antenna panels allows you to very quickly assess the location of prohibited metal objects on the human body.
An accessible control unit interface, a high degree of safety, universal applicability, high sensitivity, a wide detection range, insensitivity to interference, the ability to operate for 24 hours in an intelligent mode with simultaneous sound and light alarms, high quality, efficiency - all these parameters are at the most modern world level. Metal detectors BLOKPOST RS-0300 M are harmless to the human body. A low-intensity magnetic field is used, which is safe for people with pacemakers, hearing aids, and pregnant women.
Purpose
The collapsible arched metal detector BLOKPOST RS-0300 M is intended for use during cultural events, outdoor celebrations and at temporary facilities that require ensuring the safety of people.
Parallel operation
The BLOKPOST RS-0300 M metal detector has the ability to use up to 8 units during parallel operation at a distance of 50 cm from each other. This equipment has 3 detection zones, which reduces mutual interference between adjacent metal detectors and allows parallel operation. It is recommended to set different operating frequencies for metal detectors located next to each other. The distance between metal detectors operating in parallel depends on the sensitivity level and frequency combination. The minimum distance acceptable for operation is determined based on the conditions at the installation site.
Operating principle
The functioning of metal detectors is based on the use of radio waves. One of the walls (antennas) of the device sends a signal towards another wall, which receives this signal and then returns it back. As you know, radio waves do not pass through metal objects.
When encountering such an object located on the body of a person passing through an arched metal detector, one of the radio waves is reflected from it and returns back faster than the other waves. The device records the time the signal is reflected and when the time interval changes, the alarm device is triggered.
A multi-zone metal detector has the ability to accurately locate one or more metal objects on the human body. This reduces inspection time and increases accuracy and efficiency.
| Passage dimensions (mm) LxWxH | 2000x800x570 |
| External dimensions (mm) | 2200x1200x900 |
| Net weight (kg) | 55 |
| Gross weight (kg) | 68 |
| Number of independent detection zones | 3 |
| Independent sensitivity adjustment for each zone | Yes |
| Number of sensitivity adjustment levels for each zone | 300 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | accurate |
| Non-volatile memory for saving settings | Yes |
| Self-diagnosis test mode | Yes |
| Passage width, mm | 800 |
| Dust and waterproof housing coating | Yes |
| Pass counter | Yes |
| Alarm counter | Yes |
| Alarm light notification | Yes |
| Presence of LEDs in antenna panels | Yes |
| Alarm sound notification | Yes |
| Number of alarm tones | 10 |
| Number of passwords to change settings | 1 |
| Eight-digit password | Yes |
| Throughput, person/min | 60 |
| Number of IR sensor trigger modes | 3 |
| Autonomous operation | Yes |
| Number of metal detectors when used in parallel (number of operating frequencies) | 8 |
| Increased noise immunity (minimum distance between models, cm) | 50 |
| Operating temperature range | -20°C – +50°C |
| Power (W) | ≤ 15 W |
| Voltage (V) | 110-240V/50Hz |
| Average service life | 10 |
| Guarantee | 1 year |
