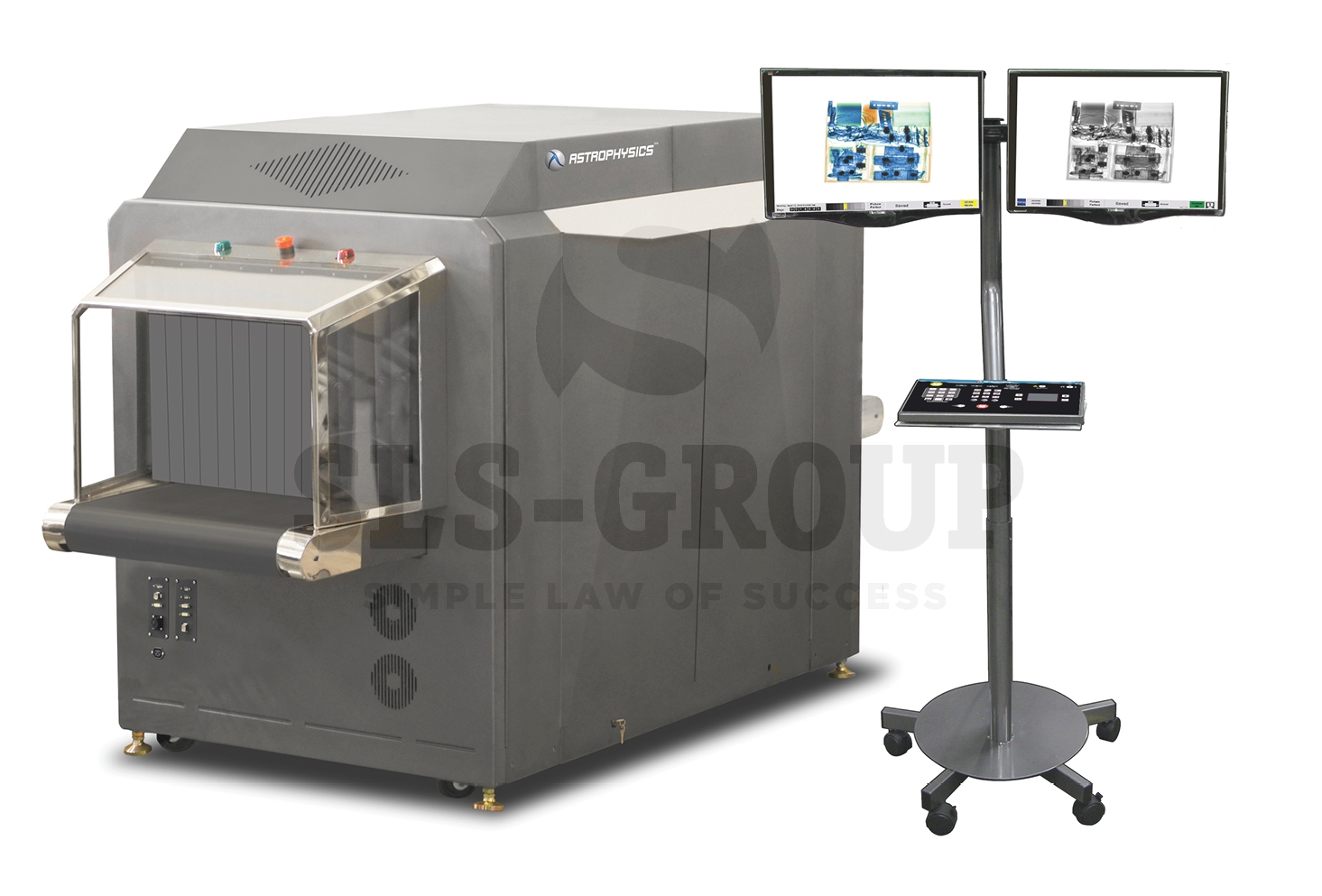

X-ray television installation (introscope) Astrophysics “VI7”
X-ray television installation Astrophysics “VI7”
INNOVATIVE MODEL WITH 3D IMAGE.
Tunnel size: width 62.1 cm x height 41.7 cm. Generator: 180 kV. “Multi-View” technology displays a sequence of 7 images on the monitor, creating a 3D image of the inspected luggage. Updated housing with stainless steel inserts, protective covers over the conveyor.
All Astrophysics installations are equipped with a continuous condition diagnostics system. This function allows you to monitor and identify faults at an early stage of their manifestation, which increases service life, reduces the cost of operation and possible repairs.
Another distinctive feature of Astrophysics installations is the formation of images of inspected objects in a 6-color format (depending on the atomic number of the substance), which greatly facilitates the operator’s work in identifying hazardous materials.
Features of the VI7 introscope:

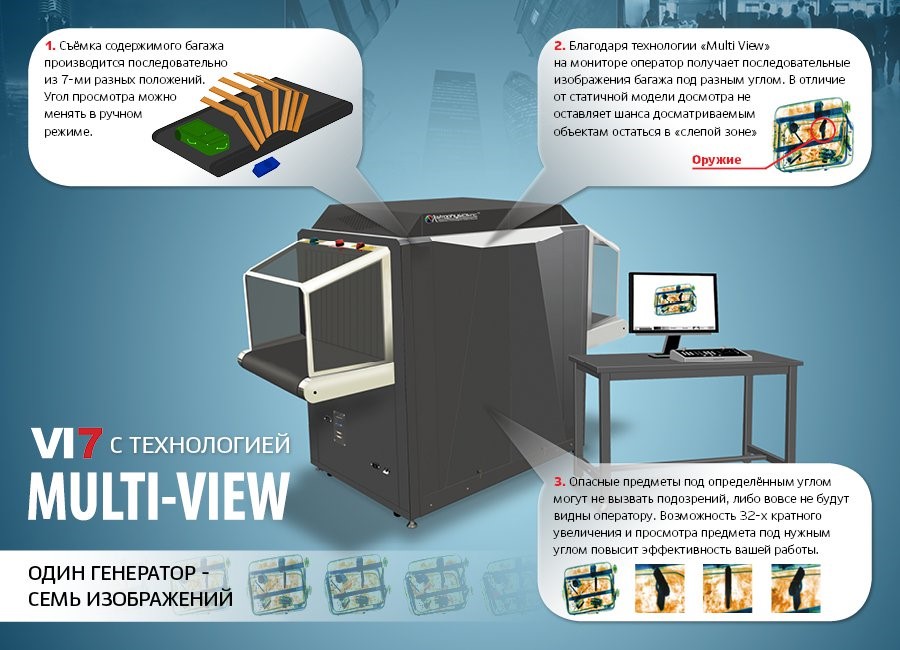

- Multi-View technology. Sequential display of 7 images of an object from different angles. The operator sees a 3D image of the object being inspected. Objects that are invisible in one projection become visible when the viewing angle changes.
- Displays images of inspected objects in 6 colors, depending on the atomic number. The 6-color display makes it easier for the operator to identify the materials of the inspected object and speeds up the inspection procedure itself.
- A continuous, real-time diagnostic system that allows users to monitor the condition of equipment and prevent premature failure. This increases the service life of the equipment.
- A large set of functions in the basic configuration.
- Russified keyboard and software.
Performance characteristics (TTX):
| Dimensions | |
| Tunnel size | 621 x 417 mm |
| Overall dimensions, no more | 2740 x 1200 x 1533 mm |
| Weight, no more | 1202 kg |
| Conveyor | |
| Maximum distributed load on
conveyor | 165 kg |
| Conveyor height | 700 mm |
| Conveyor belt speed | 0.23 m/s |
| X-ray source | |
| Anode voltage | 180 kV (operating 165 kV) |
| Source current | 1.2 mA |
| Radiation direction | diagonally up |
| Cooling system | oil bath with air (convection)
cooling |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 4096 |
| Detective ability for copper
wire | 0.08 mm (40 AWG) – 0.10 mm (38 AWG) |
| Penetration ability on steel | 41 – 39 mm |
| Spatial resolution, line pairs per
mm | 1.0 mm |
| Visible contrast levels, not less | 24 |
| Image processing | |
| Detector rulers: 7 L-shaped rulers -21°, -14°, -7°, 0°, 7° 14°, 21° from vertical | |
| Display: Color b/w; Manual selection from 7 images; Automatic 3D rotation | |
| Operator workstation parameters | |
| Monitor | two 24” LCD monitors
1920 x 1080, 24-bit |
| Image archive | 150,000 images |
| Power supply | |
| Voltage | 220V (±10%), 50 Hz, 10 A max |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity | up to 95%, no condensation |
| During storage: | |
| – ambient temperature | -20° – +60 °С |
| – relative humidity | up to 95%, no condensation |
