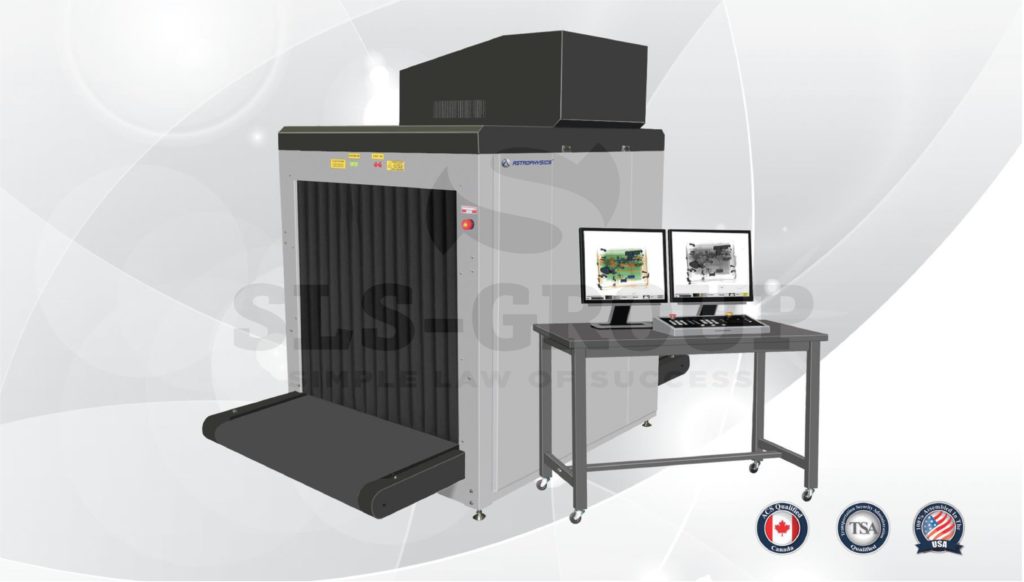

X-ray television installation (introscope) Astrophysics “XIS 100XD”
X-ray television installation Astrophysics «XIS100XD»
XIS-100XD is an updated 100XD X-ray inspection system with tunnel dimensions of 100.0 cm x 100.0 cm. The repositioning of the 180 kV X-ray generator and the low conveyor height (only 30 cm) make it easier to load heavy objects onto the conveyor. With a design that makes it easy to load items, the XIS-100XD is widely used in airports, ships, customs offices and hotels, and is ideal for inspecting heavy mail items.
The XIS-100XD is the epitome of technological innovation that enhances comfort and efficiency. XIS-100XD is the optimal technological solution when large tunnel sizes and minimal inspection time are required.
All Astrophysics installations are equipped with a continuous condition diagnostics system. This function allows you to monitor and identify faults at an early stage of their manifestation, which increases service life, reduces the cost of operation and possible repairs.
Another distinctive feature of Astrophysics installations is the formation of images of inspected objects in a 6-color format (depending on the atomic number of the substance), which greatly facilitates the operator’s work in identifying hazardous materials. A large number of options are included in the standard configuration, including Russian-language software and keyboard, 6-color image, real-time diagnostics.
Performance characteristics (TTX):
| Dimensions | |
| Tunnel size | 1000 x 1000 mm |
| Overall dimensions, no more | 2367 x 1275 x 1909 mm |
| Packaging dimensions | 1910 x 1473 x 2240 mm |
| Weight, no more | 850 kg |
| Package weight | 1080 kg |
| Conveyor | |
| Maximum distributed load on
conveyor | 200 kg |
| Conveyor height | 300 mm |
| Conveyor belt speed | 0.23 m/s |
| X-ray source | |
| Anode voltage | 180 kV (operating 165 kV) |
| Source current | 1.2 mA |
| Radiation direction | vertically down |
| Cooling system | oil bath with air (convection)
cooling |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 4096 |
| Detective ability for copper
wire | 0.07 mm (40 AWG) – 0.08 mm (38 AWG) |
| Penetration ability on steel | 37 – 35 mm |
| Spatial resolution, line pairs per mm | 1.0 mm |
| Visible contrast levels, not less | 24 |
| Operator workstation parameters | |
| Monitor | Two 24” LCD monitors
1600 x 1200, 24-bit |
| Image archive | 100.000 images |
| Power supply | |
| Voltage | 220V (±10%), 50 Hz, 10 A max |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity | up to 95%, no condensation |
| During storage: | |
| – ambient temperature | -20° – +60 °С |
| – relative humidity | up to 95%, no condensation |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
