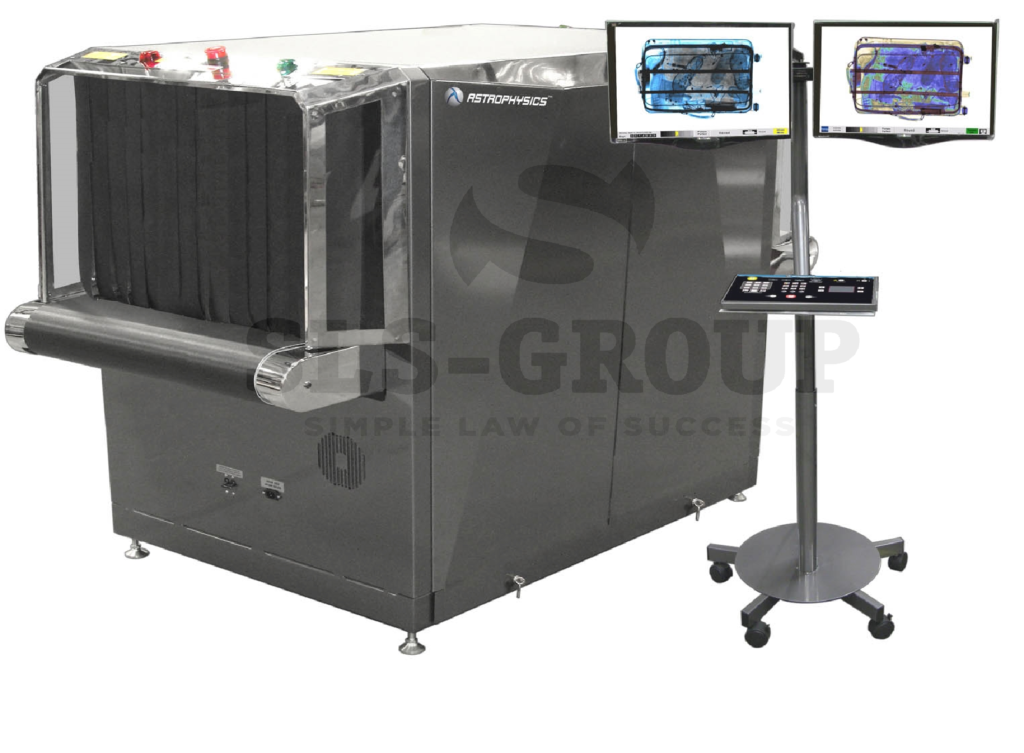

X-ray television installation (introscope) Astrophysics “XIS-7858VI”
X-ray television installation Astrophysics “XIS-7858VI”
A popular model of X-ray television installation for inspection of luggage and small cargo. Tunnel size: width 78 cm x height 58 cm. Used for inspection at airports, train stations, seaports, banks and offices, stadiums and concert halls, embassies and post offices, correctional institutions. The combination of the tunnel size and installation dimensions allows the XIS-7858VI to be used to solve a wide range of tasks for detecting prohibited items.
Features of the introscope XIS-7858VI:
- Displays images of inspected objects in 6 colors, depending on the atomic number. The 6-color display makes it easier for the operator to identify the materials of the inspected object and speeds up the inspection procedure itself.
- A continuous, real-time diagnostic system that allows users to monitor the condition of equipment and prevent premature failure. This increases the service life of the equipment.
- A large set of functions in the basic configuration.
- Russified keyboard and software.
Performance characteristics (TTX):
| Dimensions | |
| Tunnel size | 775 x 583 mm |
| Overall dimensions, no more | 1880 x 1030 x 1394 mm |
| Packaging dimensions | 2210 x 1162 x 1828 mm |
| Weight, no more | 690 kg |
| Package weight | 860 kg |
| Conveyor | |
| Maximum distributed load on
conveyor | 165 kg |
| Conveyor height | 730 mm |
| Conveyor belt speed | 0.23 m/s |
| X-ray source | |
| Anode voltage | 180 kV (operating 165 kV) |
| Source current | 1.2 mA |
| Radiation direction | diagonally up |
| Cooling system | oil bath with air (convection)
cooling |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 4096 |
| Detective ability for copper
wire | 0.07 mm (41 AWG) – 0.08 mm (40 AWG) |
| Penetration ability on steel | 43 – 41 mm |
| Spatial resolution, line pairs per mm | 1.0 mm |
| Visible contrast levels, not less | 24 |
| Operator workstation parameters | |
| Monitor | LCD monitor 22”
1680 x 1050, 24-bit |
| Image archive | 150,000 images |
| Power supply | |
| Voltage | 220V (±10%), 50 Hz, 10 A max |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity | up to 95%, no condensation |
| During storage: | |
| – ambient temperature | -20° – +60 °С |
| – relative humidity | up to 95%, no condensation |
