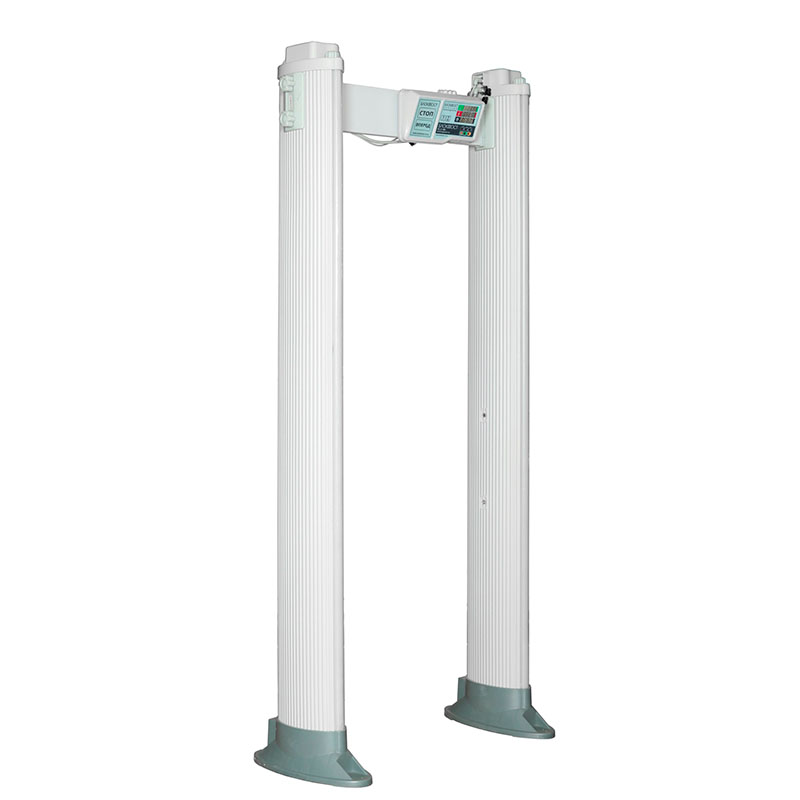

Arched metal detector BLOKPOST RS X 100
BLOCKPOST RS X 100 MODEL. This model has a HEAVY-DUTY CASE and a DUST AND WATER PROTECTION LEVEL IP 65, which allows the metal detector to be used in almost any weather conditions. The all-new powerful multi-functional microprocessor makes it easy to detect and discriminate metal. The metal detector BLOCKPOST RS X 100 is equipped with the latest function - an event recorder with an SD card. The presence of “dry contacts”, as well as two basic methods of connecting to the network (right, left) and connection from above (optional) have already become traditional advantages of BLOKPOST metal detector models. To count the number of people passing (at the entrance and exit) through the metal detector, a unique technology for transmitting an infrared signal is used through the use of innovative transceiver IR sensors. An accessible control unit interface, a high degree of safety, universal applicability, high sensitivity, a wide detection range, insensitivity to interference, protection from dust and moisture, anti-vandal protection (heavy-duty housing), the ability to operate for 24 hours in an intelligent mode with simultaneous sound and light alarms, high quality, efficiency and excellent technical characteristics - all these parameters are at the most modern world level. BLOKPOST RS X 100 metal detectors are harmless to the human body. A low-intensity magnetic field is used, which is safe for people with pacemakers, hearing aids, and pregnant women.
Purpose
The BLOKPOST RS X 100 metal detector is designed for use in government agencies, educational institutions, medical institutions, factories, business centers and other places that require ensuring the safety of people.
Transport packaging protects the equipment from damage that may occur during delivery of the goods to the client. Ensures the preservation of the appearance of equipment during loading and unloading operations, transportation, storage, as well as attachment to vehicles.
Equipment
The following is supplied with the BLOKPOST RS X 100 metal detector:
- power cable (5 m) – 1 pc.
- adapter for the top connection of the metal detector – 1 pc.
- fasteners for the control unit – 2 pcs.
- fasteners for antenna panels – 4 pcs.
- set of fasteners for installation to the floor – 4 pcs.
- remote control for setting up the metal detector – 1 pc.
- crossbar – 1 pc.
- instructions for use/technical passport – 1 pc.
Integration into an access control system
Thanks to the presence of an output for controlling actuators, BLOKPOST RS X 100 metal detectors can be integrated into an access control system. Metal detectors can be installed in conjunction with airlock cabins, airlocks, turnstiles, tripods, and automatic doors.
When a person passes through a metal detector with a prohibited item, a light and sound indication is triggered; the information is transmitted through a wired connection to a turnstile (airlock cabin, automatic door, etc.), which blocks further movement of the person. If there are no prohibited items, the turnstile will allow access.
Parallel operation
During parallel operation, it is recommended to place BLOKPOST RS X 100 metal detectors at a distance of 50 cm from each other. This equipment has several operating frequencies, which reduces mutual interference between adjacent metal detectors and provides the possibility of parallel operation. It is recommended to set different operating frequencies for metal detectors located next to each other.
The distance between metal detectors operating in parallel depends on the sensitivity level and frequency combination. The minimum distance acceptable for operation is determined based on the conditions at the installation site.
| External dimensions (mm) LxWxH | 2300x1060x500 |
| Passage dimensions (mm) LxWxH | 2000x720x280 |
| Passage width (mm) | 720 |
| Packaging dimensions (mm) LxWxH | 2400x540x620 |
| Net weight (kg) | 65 |
| Gross weight (kg) | 75 |
| Number of independent detection zones | 1 |
| Operating temperature range | -20 to +60 °C |
| Number of levels of overall sensitivity adjustment | 100 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | accurate |
| Non-volatile memory for saving settings | Yes |
| Self-diagnosis test mode | Yes |
| Number of standard programs | 72 |
| Dust and waterproof housing coating | Yes |
| Dust and waterproof design | IP 65 |
| Pass counter | Yes |
| Maximum pass counter value | 99,999 |
| Alarm counter | Yes |
| Maximum value of alarm counters | 99,999 |
| Alarm light notification | Yes |
| Alarm sound notification | Yes |
| Number of alarm tones | 99 |
| Alarm output for controlling third party equipment (dry contacts) | Yes |
| Number of passwords to change settings | 1 |
| Four digit password | Yes |
| Throughput, person/min | 60 |
| Number of IR sensor trigger modes | 4 |
| Remote control | Yes |
| Autonomous operation | yes, option |
| Ability to sync multiple devices | Yes |
| Number of metal detectors when used in parallel (number of operating frequencies) | 50 |
| Increased noise immunity (minimum distance between models, cm) | 50 cm |
| Anti-vibration protection | Yes |
| Power (W) | ≤12W |
| Voltage (V) | 110-240V/50Hz |
| Average service life | 10 years |
| Guarantee | 1 year |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
