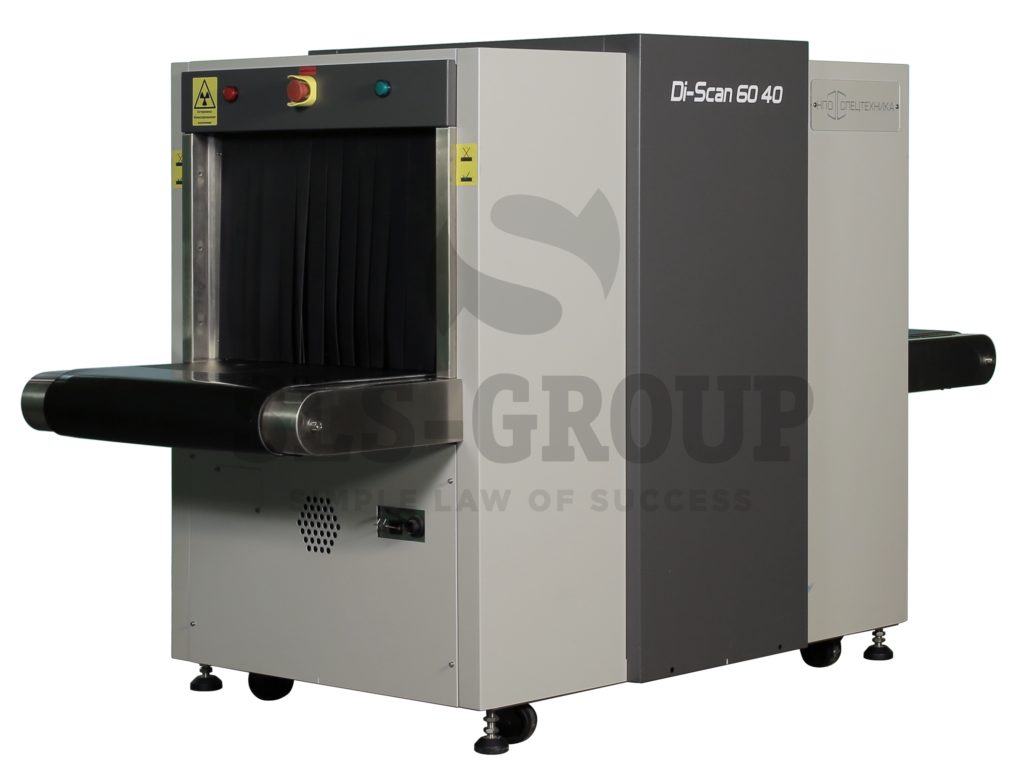

X-ray television installation "Di–Scan 6040"
The X-ray television installation “Di-Scan 6040” is a Russian development. This is one of the most compact RTUs in the Di-Scan line of introscopes. The system is designed to carry out inspection and control of hand luggage and baggage at airports, stadiums, as well as at checkpoints of specially protected facilities. Each installation can be adapted to detect specific products (different materials and sizes) at the request of the customer.
Performance characteristics (TTX): Di-Scan 6040
| Tunnel size, mm | 610(W) x 410(H) |
| Overall dimensions of the installation | 2050(L) x 850(W) x 1280(H) |
| Load capacity, kg | 160 |
| Operating temperature range, C | From 0 to +40 (in difficult climatic conditions it is possible to install additional cooling systems to avoid overheating) |
| Conveyor speed, m/s | 0.20 |
| Installation weight, kg | 600 |
| Ready to work time, sec | 10 |
| Work cycle | around the clock |
| Penetration on steel, mm | 32mm (34mm) |
| Maximum contrast on copper wire, mm | 0.1 |
| Functionality | – Coloring images according to organics – Negative/positive – Stepped gamma correction – Zoom up to 32x – “Loop” mode – Material recognition function by effective atomic number – Automatic diagnostics ADDITIONAL FEATURES: – Function to return previous images for more thorough analysis – Image archiving function (up to 50,000 images) – Ability to view image library – Connection to a local network via TCP/IP protocol – Date/time display – USB 2.0, 3.0 |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
Documentation
- Di-Scan 6040 (1.7 MB)
- Di-Scan 6040 (669.6 KB)
