GARRETT PD 6500i
Stationary arched metal detector “GARRETT PD 6500i”
The Garrett 6500i has high throughput and accurately detects the presence of prohibited items. The device is an arch, which consists of vertical wide panels.
Key Features:
- weight – 64 kg;
- passage width – 80 cm;
- operating temperature – from -20 to +70 degrees;
- light and sound indication;
- 10 signal options;
- multi-frequency technology;
- 23 programs;
- 200 sensitivity levels;
- 33 detection zones;
- built-in LCD display;
- touch control.
The PD 6500i metal detector is highly sensitive. The operator can select one of 23 built-in modes, changing the sensitivity and degree of metal detection. The operator will not have any difficulties with settings or mode selection, since the instructions and menus are completely Russified.
Operating principle

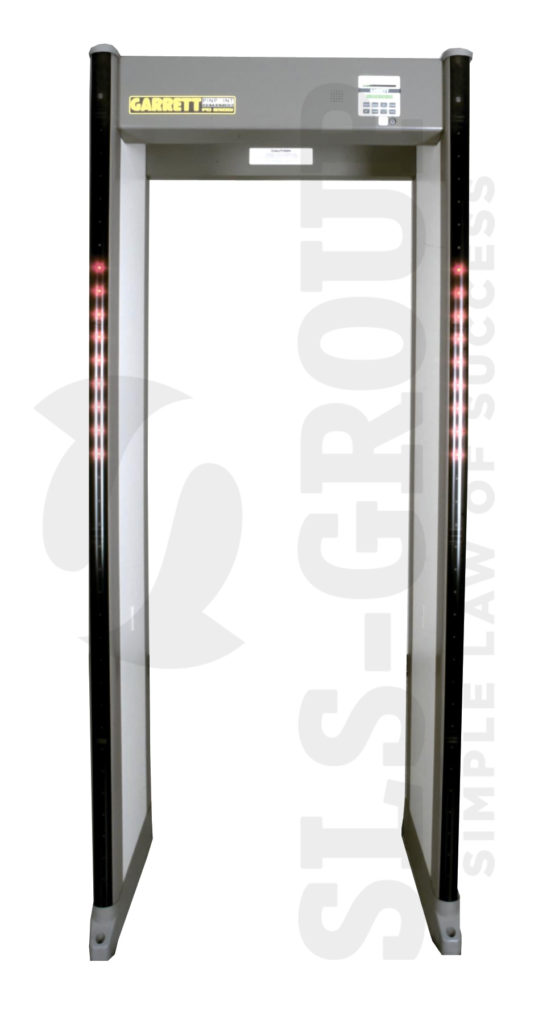

Arched metal detectors PD 6500i consist of two impact-resistant panels, which are connected by a horizontal bar. The width of the arch passage is 80 cm. The control unit is hidden inside the side panel. The aluminum panel reliably protects the control system from mechanical damage and moisture.

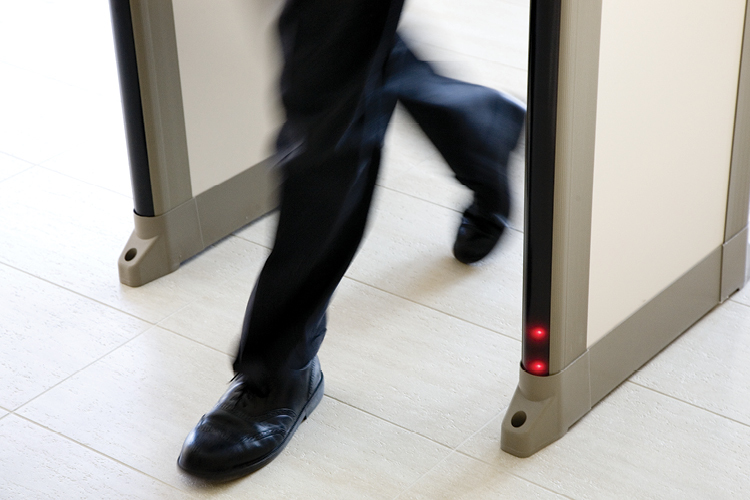

When carrying metal objects through the arch, a light and sound indication is triggered. The operator can select a sensitivity parameter as well as a program to detect metal of a certain mass.
The choice of mode determines the items to be identified. The operator can exclude metal by weight or purpose, for example, remove safe objects - glasses, keys, key fobs.
Functionality of Garrett 6500:
- selection of a program depending on operating conditions;
- setting the sensitivity level;
- autotesting;
- self-diagnosis;
- metal search;
- protection from interference transmitted by monitors and other equipment;
- eliminating the camouflage of metal objects with opposite magnetic properties;
- setting up several devices within the same range.
Application and repair of Garrett PO 6500i
The device is used to increase safety in crowded places. High throughput makes it possible to inspect people without queuing. When passing through an arched metal detector, a light and sound indication is triggered. The built-in light board displays the inscription: “Stop/Go,” which allows you to control the flow of people.
The device is also used at public events. To carry the device and use it in open areas when there is no access to electricity, the equipment is equipped with a battery and rollers. Thanks to this, the device can be installed even outdoors during public events. It will take no more than 5 minutes to move the device to another location.
When installing, the transfer rollers can be hidden so that the Garrett PD 6500 arch does not move and is securely fixed. There are also stabilization fastenings on the bottom of the panels that prevent the arch from tipping over.
When using several Garrett PD 6500i devices in the same room, the anti-interference function is activated. This eliminates false positives and improves the quality of control.
The price of the Garrett 6500i metal detector is available upon request. We will send your order to any city upon request.
Performance and Technical Characteristics (TTX): GARRETT PD 6500i
| Power supply | 100-240V, 50/60Hz, 45W |
| Operating principle | pulse detection |
| Pulse frequency | tunable, up to 2.3 kHz |
| Operating temperature range, | -20…+70 °С |
| Humidity | up to 95% without capacitor |
| Dust and moisture protection class | IP55(IP65 optional) |
| Weight | 64 kg |
| External dimensions (WxHxD) | 890 x 2230 x 590 mm |
| Tunnel internal dimensions (WxHxD) | 760 x 2040 x 590 mm |
| Package | 900 x 2300 x 170 mm |
| Package weight | 77.5 kg |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
Documentation
- GARRETT PD 6500i (346 KB)
- GARRETT PD 6500i (261.4 KB)
