Introscope 5030 SDT (X-ray television unit)
Description
X-ray television installation SDT-5030 - an effective solution for inspection of baggage and goods
X-ray television installation SDT-5030 is a modern single-projection system for operational control of hand luggage, bags, parcels and small cargo. It provides clear X-ray images, helps quickly identify dangerous objects and improves site safety.
Thanks to its compact size, ease of operation and reliable operation, the SDT-5030 is suitable for use in airports, train stations, offices, business centers, hotels, post offices and other high-traffic facilities.
Introscope 5030 SDT is a compact single-projection X-ray television installation for contactless inspection of hand luggage, packages, parcels and other items. The 5030 X-ray introscope provides clear, real-time display of content on the screen and is suitable for rapid inspection of objects at entrances, office buildings, business centers and government institutions. The SDT 5030 helps improve safety and is used as part of control systems.
Introscope 5030 supports X-ray image processing, multiple magnification and convenient viewing of details. This speeds up the operator's work and improves the accuracy of detecting hidden objects inside the package. The installation is suitable for regular use and stable performance with a constant flow of people.
Features of SDT 5030
- Compact size and light weight - fits into most doorways, convenient in cramped conditions and during outdoor events.
- Convenient software interface and ergonomic operator control buttons.

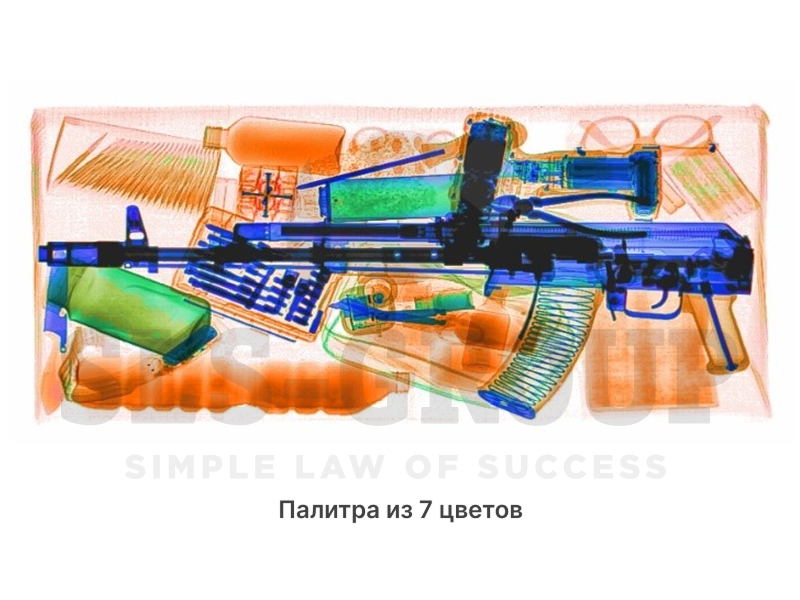

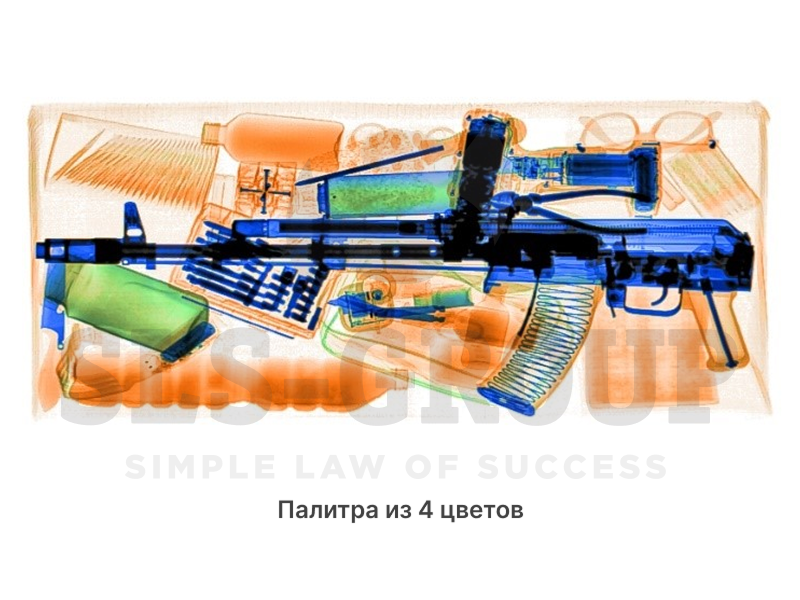

- Select display mode: 4 or 7 color palette.
- More than 30 image processing functions: filters, contrast enhancement, dimming, zooming.
- Accurate separation of materials: organic, mixed, inorganic.
- Saving images and inspection results for search by time and further use in reports.

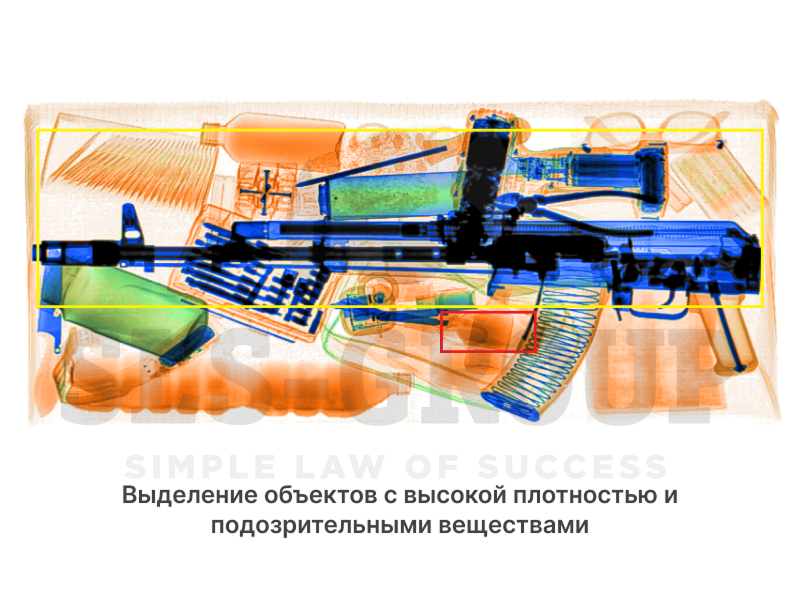

Function for highlighting suspicious objects
The 5030 SDT Introscope is equipped with an assistant that helps highlight suspicious areas and potentially dangerous objects in the X-ray image.
Results can be saved and quickly found by inspection time. You can view images in 4 or 7 color modes.
Where is introscope 5030 used?
The X-ray introscope 5030 is used at the entrance of enterprises, in offices, warehouses and exhibition areas. The equipment can work in conjunction with security solutions: access control systems, controllers, card readers, turnstiles, intercom, video surveillance and other devices.
Main technical characteristics of the X-ray television installation SDT 5030
| Installation size, mm (L x W x H) | 1361* x 831 ±5 x 1182** |
| Tunnel size, mm (W x H) | 510 x 315 ±10 |
| X-ray direction | Bottom-up |
| Penetration on steel, mm | 34-36 |
| Conveyor belt speed, m/s | ≥0.2 |
| Maximum distributed load on the conveyor, kg | no more than 150 |
| Color palette | Choice of: 4 or 7 colors |
| Separation of objects by atomic mass | Availability |
| Maximum power consumption, kW | no more than 0.7 |
| System weight, kg | no more than 345 |
| Number of projections | One |
| 3D function | No |
| Maximum contrast on copper wire, mm | 0.08-0.1 |
| Standard size | Compact |
| Conveyor height above floor level, mm | 708 |
| Power supply | 220V±10% 55±5 Hz, with grounding |
| Operating temperature | 0°С – +50°С |
* – The length is indicated subject to the zero position of the conveyor belt tensioner. The tensioner stroke is no more than 30mm.
** – The height is indicated from the transport wheels of the installation to the upper plane of the RTU. The travel of stationary legs is no more than 50mm.
SDT 5030 equipment:
- X-ray television installation – 1 pc.
- LCD monitor 24” – 1 pc.
- Operator control panel – 1 pc.
- Operational documentation, passport (form)
Additional options available to order:
- Input/output roller table 0.5 m
- Input/output roller table 1 m
- Surveillance video cameras built into the RTU
- Intelligent subsystem for automatic stop/start of the conveyor belt (extends the service life of the installation and saves energy)
- Artificial intelligence-based subsystem for monitoring operator attention (vigilance / fatigue / operator absence from the workplace)
- Touch monitor
- Keyboard/mouse kit
- Voltage stabilizer
- UPS
- Operator's desktop
