Introscope 6040 SDT
Description

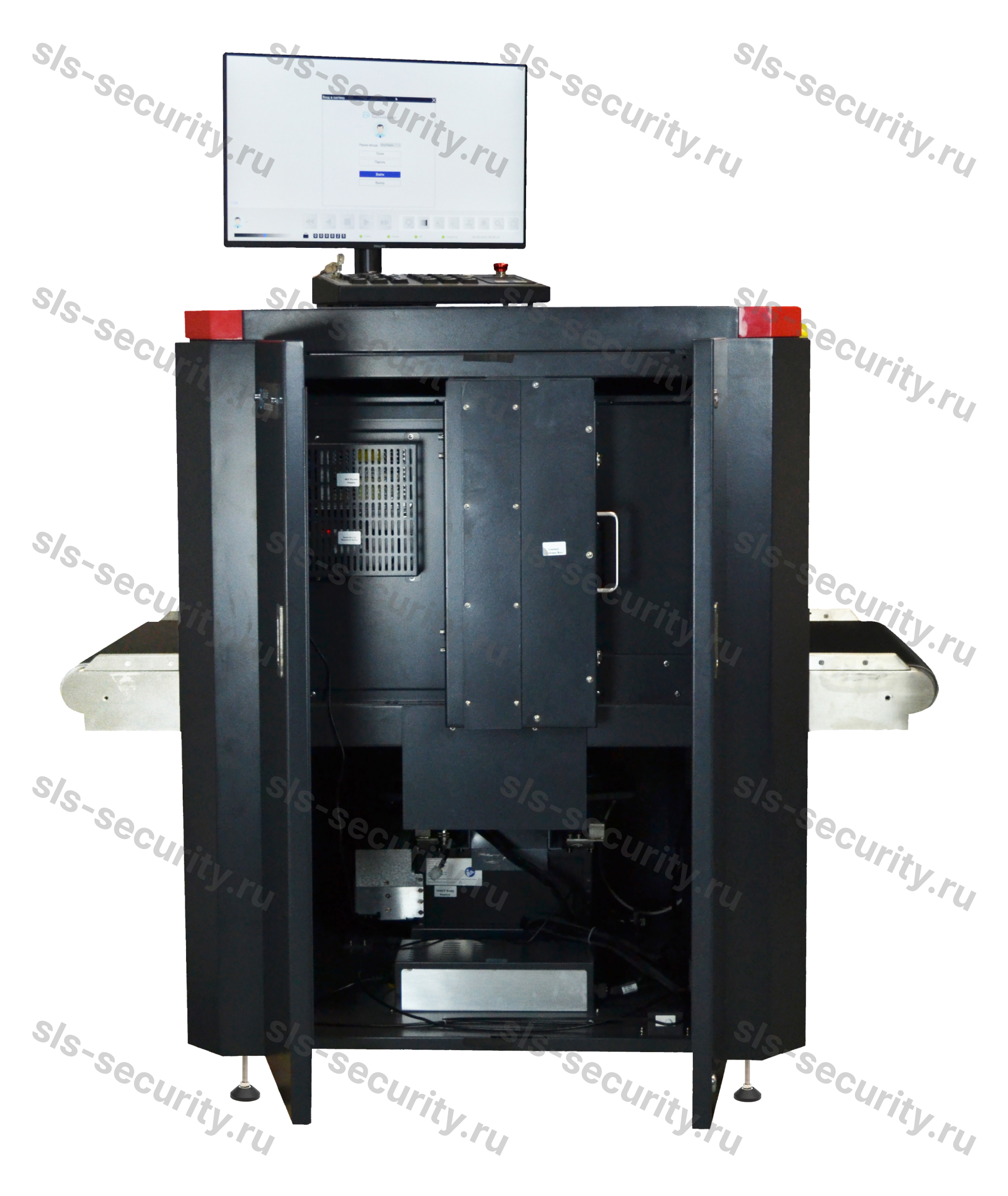

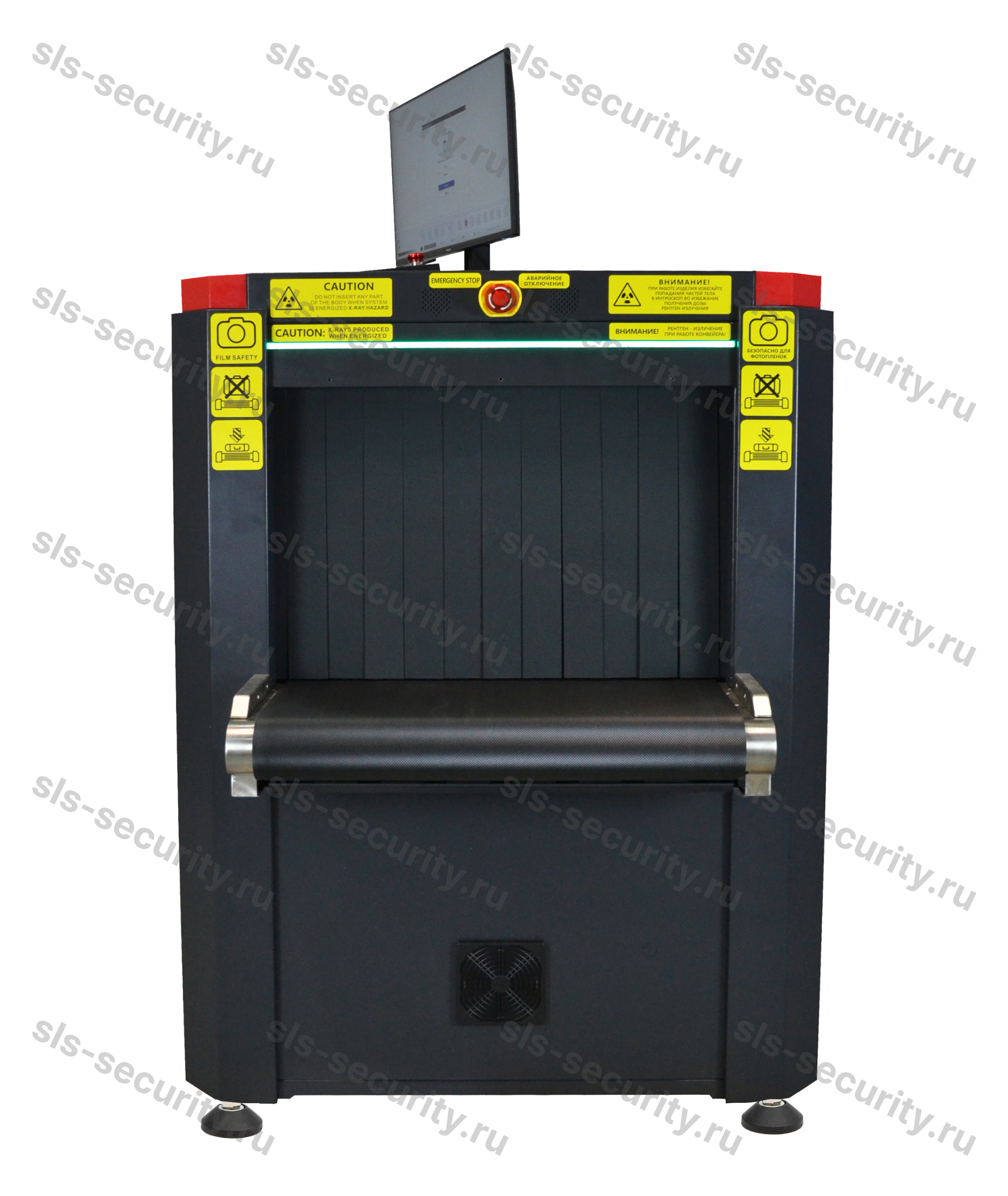

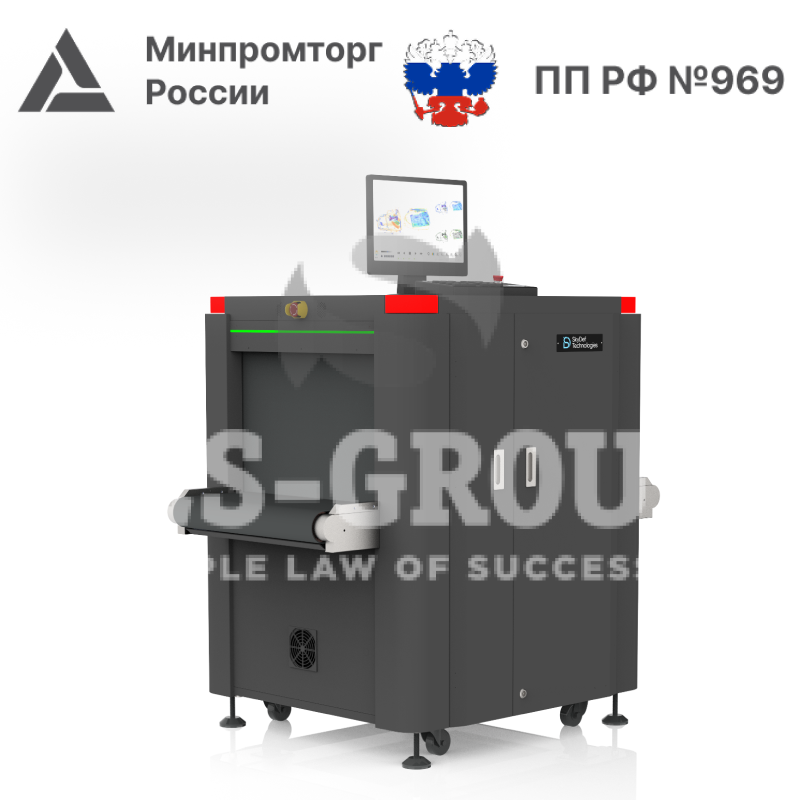

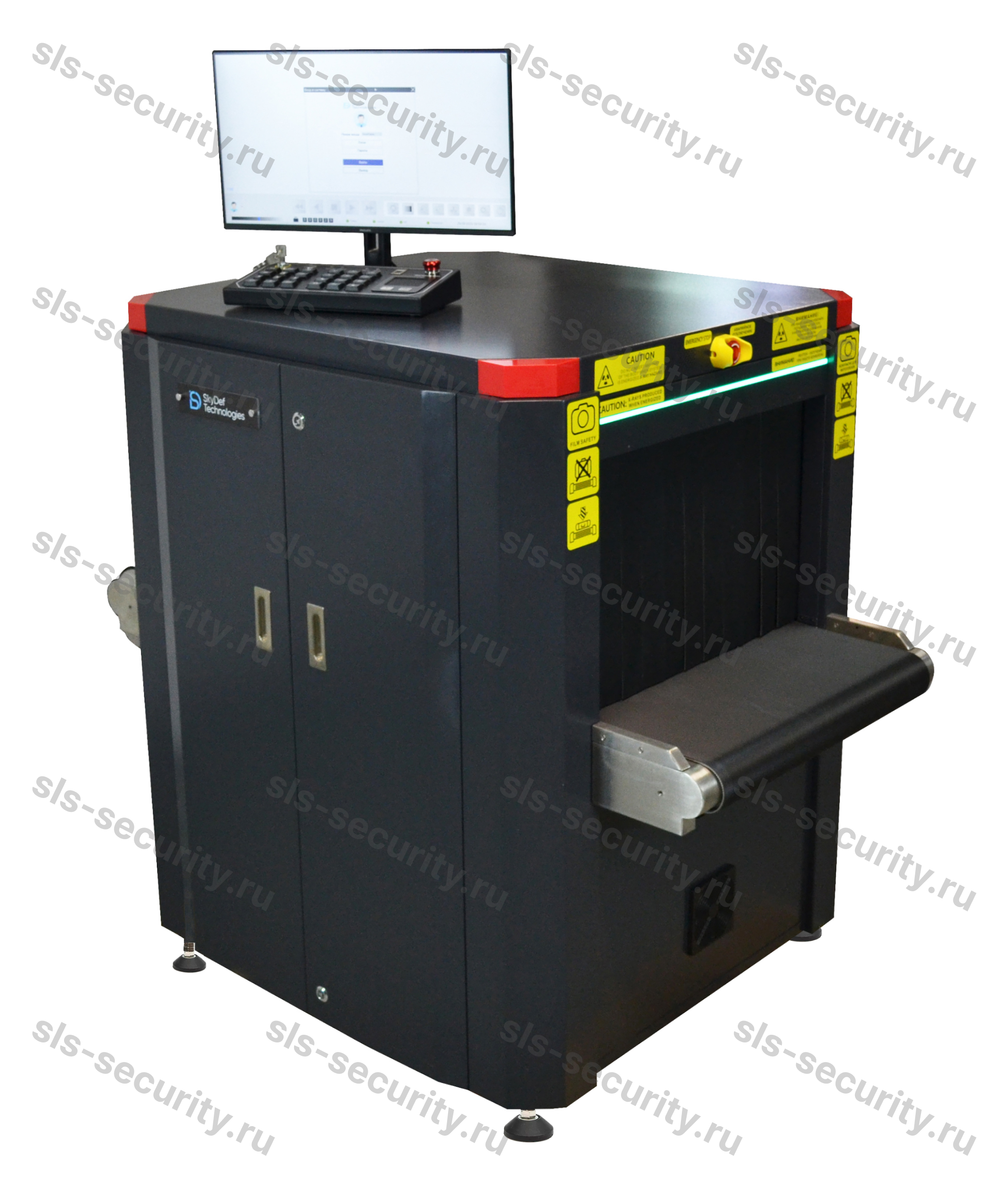

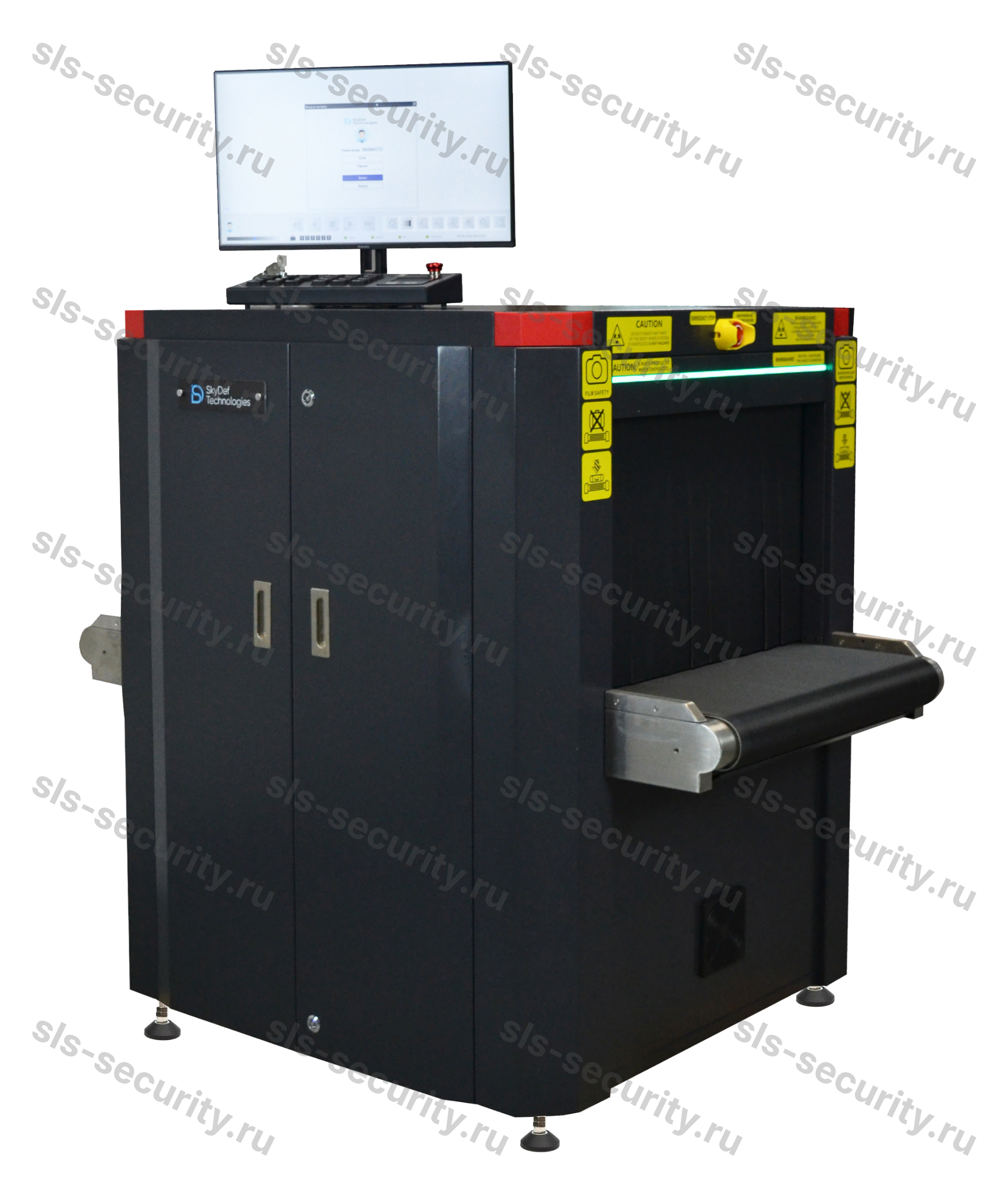

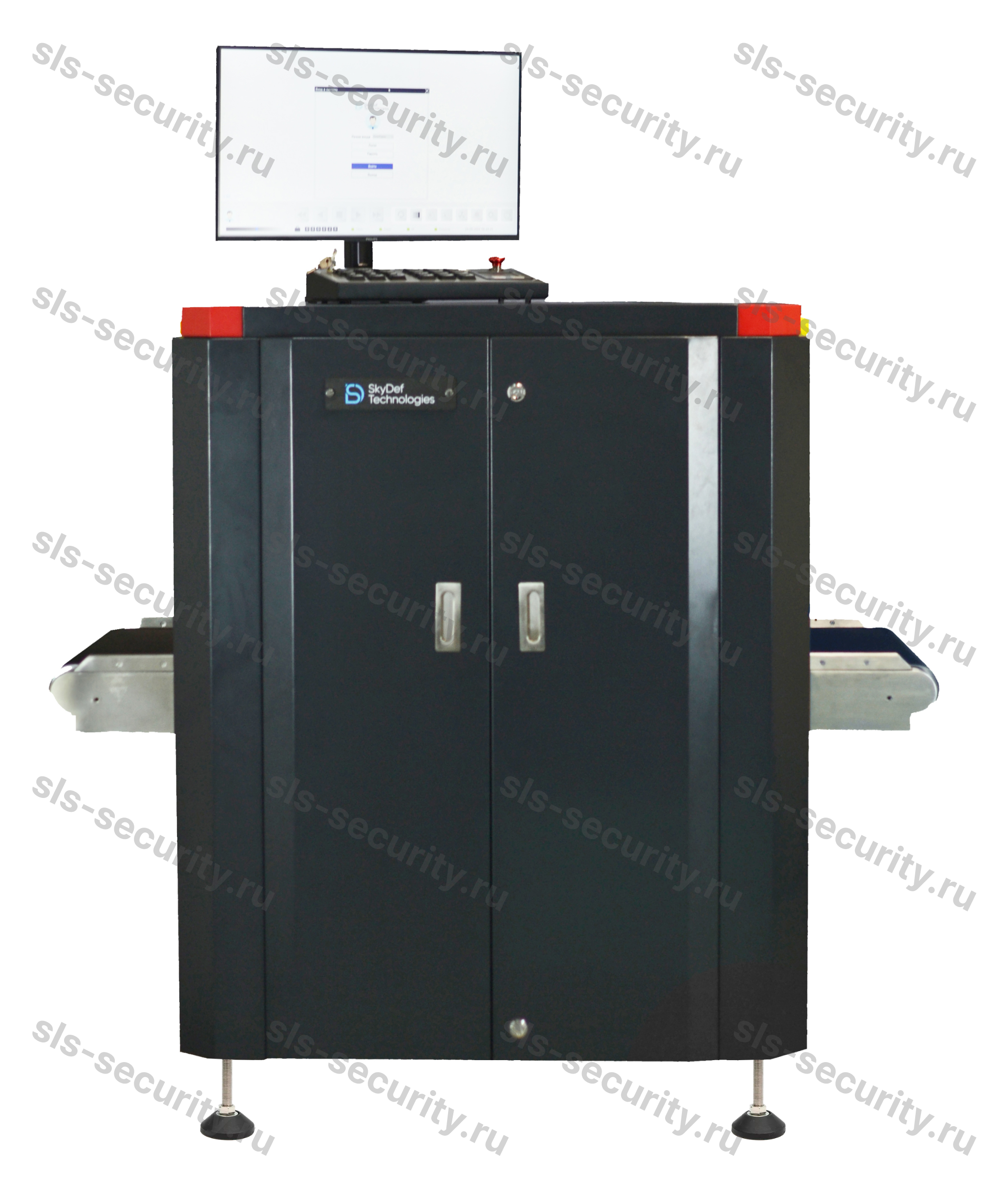

X-ray television installation SDT-6040 – a compact system for inspection of baggage and goods
X-ray television installation SDT-6040 is a single-projection introscope of a modern level, designed for contactless control of hand luggage, bags, backpacks, correspondence and medium-sized goods. The system provides high-quality X-ray images in real time and high efficiency of inspection at facilities with heavy passenger traffic.
The installation is widely used at transport infrastructure facilities, in office centers, administrative buildings, banks, post offices and other places where security is required.
Introscope 6040 SDT for luggage and goods inspection
Introscope 6040 SDT is a compact single-projection X-ray television system designed for contactless inspection of hand luggage, bags, backpacks, correspondence and medium-sized goods. The model is used in high-traffic areas and provides high-quality picture perfect images in real time.
The SDT 6040 introscope is used at airports, train stations, office centers, banks, post offices, checkpoints of enterprises and institutions. The equipment is suitable for searching for weapons, liquids, explosives and other prohibited items.
Image quality and intelligent processing
The 6040 SDT Introscope supports 4- and 7-color palettes, six-color separation of objects based on atomic number and density, and atomic mass measurements. The functions of multiple magnification, magnification in 9 areas of the image, moving the enlarged fragment on the screen and compensation of geometric distortions are implemented.
The penetrating ability in steel reaches 34-36 mm, which makes it possible to identify opaque areas and dense metal elements. The maximum contrast on copper wire of 0.08-0.1 mm increases detection sensitivity.
Windows-based software provides stable performance, real-time image control, contrast enhancement, image library browsing and photo annotation.
Data archive and connection
The SDT 6040 introscope supports an image archive of up to 50,000 images with the ability to manually save and store data on HDD or SSD. The system can be connected to a local network using the TCP/IP protocol for remote control and integration into security systems.
It is possible to work as part of electronic checkpoints, facial recognition terminals, turnstiles and barriers. Connection of IP cameras and external monitoring devices is supported.
Design and operational parameters
The 6040 SDT introscope tunnel size is 625 × 420 mm – optimal for inspecting small luggage and parcels. The conveyor belt speed is at least 0.2 m/s, the maximum distributed load is up to 165 kg. Conveyor height – 709 mm.
The equipment operates from a 220V network and consumes no more than 0.7 kW. Permissible operating temperature is from 0°C to +50°C. The powerful belt drive ensures continuous operation even under high loads.
Tactical and technical characteristics of the X-ray television installation SDT 6040 (TTX):
| Installation size, mm (L x W x H) | 1425* x 950 ±5 x 1288** |
| Tunnel size, mm (W x H) | 625 x 420 ±10 |
| X-ray direction | Bottom-up |
| Penetration on steel, mm | 34-36 |
| Conveyor belt speed, m/s | ≥ 0.2 |
| Maximum distributed load on the conveyor, kg | no more than 165 |
| Color palette | Choice of: 4 or 7 colors |
| Separation of objects by atomic mass | Availability |
| Maximum power consumption, kW | no more than 0.7 |
| System weight, kg | no more than 450 |
| Number of projections | One |
| 3D function | No |
| Maximum contrast on copper wire, mm | 0.08-0.1 |
| Standard size | Compact |
| Conveyor height above floor level, mm | 709 |
| Power supply | 220V±10% 55±5 Hz, with grounding |
| Operating temperature | 0°С – +50°С |
* – The length is indicated subject to the zero position of the conveyor belt tensioner. The tensioner stroke is no more than 30mm.
** – The height is indicated from the transport wheels of the installation to the upper plane of the RTU. The travel of stationary legs is no more than 50mm.
SDT 6040 equipment:
- X-ray television installation – 1 pc.
- LCD monitor 24” – 1 pc.
- Operator control panel – 1 pc.
- Operational documentation, passport (form)
Additional options available to order:
- Input/output roller table 0.5 m
- Input/output roller table 1 m
- Surveillance video cameras built into the RTU
- Intelligent subsystem for automatic stop/start of the conveyor belt (extends the service life of the installation and saves energy)
- Artificial intelligence-based subsystem for monitoring operator attention (vigilance / fatigue / operator absence from the workplace)
- Monitor with touch control
- Keyboard/mouse kit
- Voltage stabilizer
- UPS
- Operator's desktop
Why is it worth buying an introscope 6040 SDT
- Penetration ability in steel up to 36 mm
- Separation of organic / mixed / inorganic
- Image archive up to 50,000 images
- Real-time image control
- Intelligent identification of suspicious objects
- Connecting to a local TCP/IP network
- Operator training program
- Compact size and convenient installation
Introscope 6040 SDT is a practical solution for objects with an intense flow of visitors. Prompt delivery is available in Moscow. Delivery throughout Russia is possible, guarantees and service are provided.
To buy an introscope 6040 SDT at the supplier’s price, leave a request - specialists will contact you shortly and prepare a commercial offer.
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
