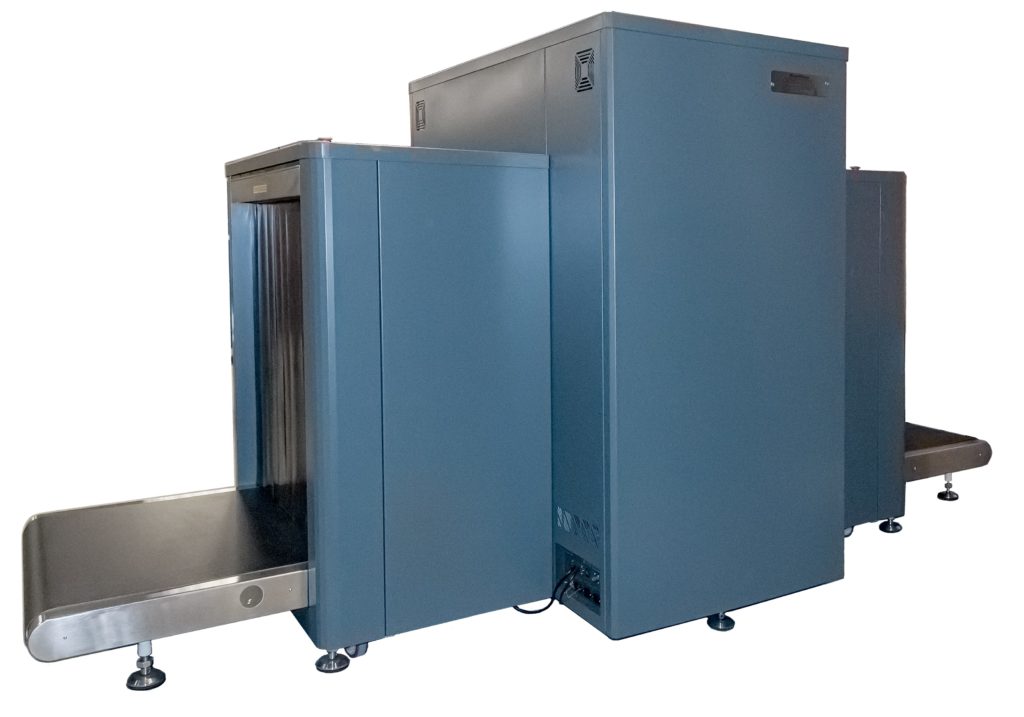

X-ray television installation (introscope) SmartScan XR 100100D
The new brand of X-ray television installations “SmartScan” is developed on the basis of popular technology and adapted to the transport security requirements of the Russian Federation. Combines the quality of leading manufacturers, proven by experience, and new solutions that ensure compliance with strict legal regulations.
A mobile installation for stationary use, designed for visual, non-contact control of various objects (parcels, luggage, goods and other items).
Dual-energy technology provides automatic color separation of materials with different atomic numbers and optical densities, allowing the operator to identify the presence of hazardous, undeclared or prohibited objects.
The SmartScan XR 100100D installation allows you to identify weapons, explosives, drugs, and other dangerous items that pose a security threat. Scanning in two projections allows you to obtain two images of an object at once, which gives the introscope operator more accurate information for detecting threats and does not require repeated scanning.
The X-ray television installation “SmartScan 100100DV” has been tested for use at transport infrastructure facilities in accordance with the Decree of the Government of the Russian Federation of September 26, 2016. N969 “On approval of the requirements for the functional properties of technical means of ensuring transport security and the Rules for mandatory certification of technical means of ensuring transport security.”
Performance characteristics (TTX):SmartScan XR 100100D
|
Specifications |
||
|
Dimensions of inspection tunnel (W×H), mm |
1010×1010 |
|
|
Overall dimensions (L×W×H), mm |
3700 × 1600 × 1825 |
|
|
Weight, kg |
1250 |
|
|
Maximum distributed load on the conveyor, kg |
200 |
|
|
Conveyor height, mm |
320 |
|
|
Conveyor belt speed, m/s |
0.22 |
|
|
Number of X-ray generators |
2 |
|
|
Radiation direction |
diagonally down and diagonally to the side |
|
|
Anode voltage, kV |
160 |
|
|
Detectivity on copper wire, mm |
0.1 (38 AWG) |
|
|
Penetration ability on steel |
32 mm guaranteed |
34 mm typically |
|
Visible contrast levels, not less |
24 |
|
|
Monitor and control |
LCD monitor 21.5” (1920x1080) with a specialized keyboard or multi-touch LCD monitor 21.5” |
|
|
Image archive |
50,000 images |
|
|
Power supply |
230V±10%, 50Hz |
|
|
Power consumption, no more, kVA |
1.4 |
|
|
Ambient air temperature during operation, °C |
from 0 to + 40 |
|
|
Ambient air temperature during storage, °C |
-10 to +50 |
|
