Stationary arched metal detector RADARPLUS Model N
Stationary arched metal detector RADARPLUS— high-tech Russian equipment for screening visitors at high-security facilities. Ideal for use at strategic sites, educational institutions, public events and other protected areas.
Model N benefits
Provides multi-level security. As a person passes, the device analyzes areas of the body and instantly highlights the dangerous area when a threat is detected. The sensors identify various types of metals and also detect radiation sources, drugs and explosives.
The width of the arched passage is adjustable: from 700 to 1000 mm, depending on the placement conditions. The touch display allows you to easily configure device settings and displays the current system status.
How to use
- Installation in a walk-through area;
- Sensitivity setting for each zone via touch screen;
- Connection to the network and, if necessary, to ACS;
- Using remote control for alarm or testing;
- Collection and control of passage statistics (reversible counter).
Why do you need this
Metal detectorRADARPLUS Model N— an ideal solution for organizations where reliable and prompt checking of passing people for the presence of dangerous objects is necessary. This device not only detects metal, but also analyzes threats, including radiation sources and chemicals. A high level of selectivity and intelligent filtering of false alarms make this metal detector an effective element of a modern security system.
| Specifications | ||
| Passage width | from 700 to 1000 mm (customer’s choice) | |
| Independent detection zones | up to 66 zones | |
| Temperature | -20 to +55°C | |
| Built-in radiation monitoring sensors | Gamma and neutron radiation | |
| Detection of explosives and narcotics | built-in sensor | |
| Possibility of remote temperature control | thermal imager | |
| Probability of detection | no less than 98% | |
| Indication | light and sound for alarm | |
| Touch screen | built-in | |
| Possibility of operation from a UPS | up to 6 hours | |
| Ethernet/Wi-Fi interface, integration with access control system | via dry contacts | |
Equipment:
- Arch metal detector RADARPLUS Model N;
- Touch control controller;
- Software in Russian;
- Set of mounting elements;
- Operating instructions;
- Remote control (optional);
- Power cable, Ethernet/Wi-Fi communication module (optional);
- Package
Documentation:

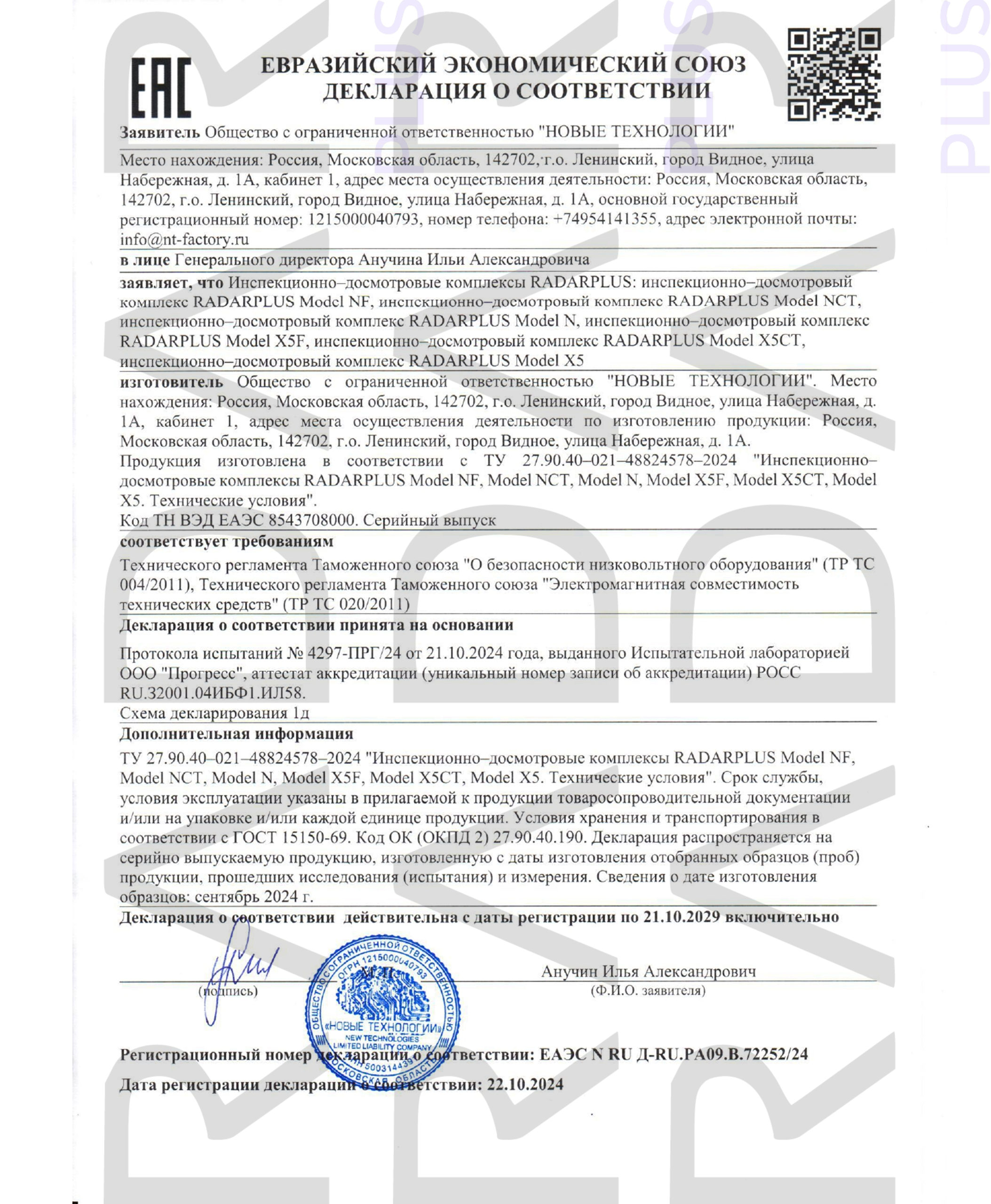

Model N DeclarationDownload
