Stationary arched metal detector RADARPLUS Model S
Stationary arched metal detector RADARPLUSRussian production. The device is used for inspection at facilities with large crowds of people: industrial and administrative buildings.
Model S advantages:
- 6 independent detection zones— effective control of body height;
- Bandwidth— at least 80 people/min;
- High precision:up to 98% probability of detection, low percentage of false positives;
- Flexible setup: from 100 to 999 sensitivity levels;
- Possibility of integrationwith an access control system (ACS);
- Compatibility with additional equipment:Wi-Fi, UPS, temperature sensors;
- Dust and moisture protection:IP20 (indoor use).
Details:
Arched metal detectorRADARPLUS Model Sis a modular inspection equipment capable of operating both autonomously and as part of an integrated security system.
How to use:
- Install a metal detector indoors.
- Connect 220 V power or use a UPS for autonomous operation
- Adjust zone sensitivity using the built-in interface
- If necessary, connect to PC via Ethernet or Wi-Fi
- Use in conjunction with a turnstile, temperature sensors, passage counter
- Triggers when a metal object is detectedlight and sound alarm
Why do you need this:
RADARPLUS Model Sis an affordable yet effective solution to provide a basic level of security in areas with high foot traffic. It allows you to quickly identify threats, minimizing the risk of missing prohibited items and without being distracted by false alarms from safe items such as keys, coins and belts.
- Speeds up the inspection procedure
- Reduces the burden on security personnel
- Provides transparent control and logging
- Suitable for scalable solutions and temporary control zones
| Specifications | ||
| Passage width | from 700 to 1000 mm | |
| Detection zones | 6 | |
| Color | standard - gray (painting available on request) | |
| Temperature | from -20 to +55°C | |
| Degree of protection | IP20 | |
| Housing material | impact-resistant plastic and metal | |
| Sensitivity threshold | adjustable from 100 to 999 for each zone | |
| Installation location | room | |
| Type of metals | magnetic and non-magnetic | |
| Indication | light and sound when a threat is detected | |
Equipment:
- Metal detector RADARPLUS Model S
- Control unit (push-button or touch)
- Set of mounting elements
- Instructions in Russian
On request:
- Touch screen control
- Remote control
- Thermal sensor for measuring the temperature of passing
- Reversing counter input/output
- Connection to PC (Ethernet / Wi-Fi)
- RADARPLUS software
- Dry contacts for integration into access control systems
- Uninterruptible power supply (up to 6 hours)
- Dust and moisture protection IP65
Documentation

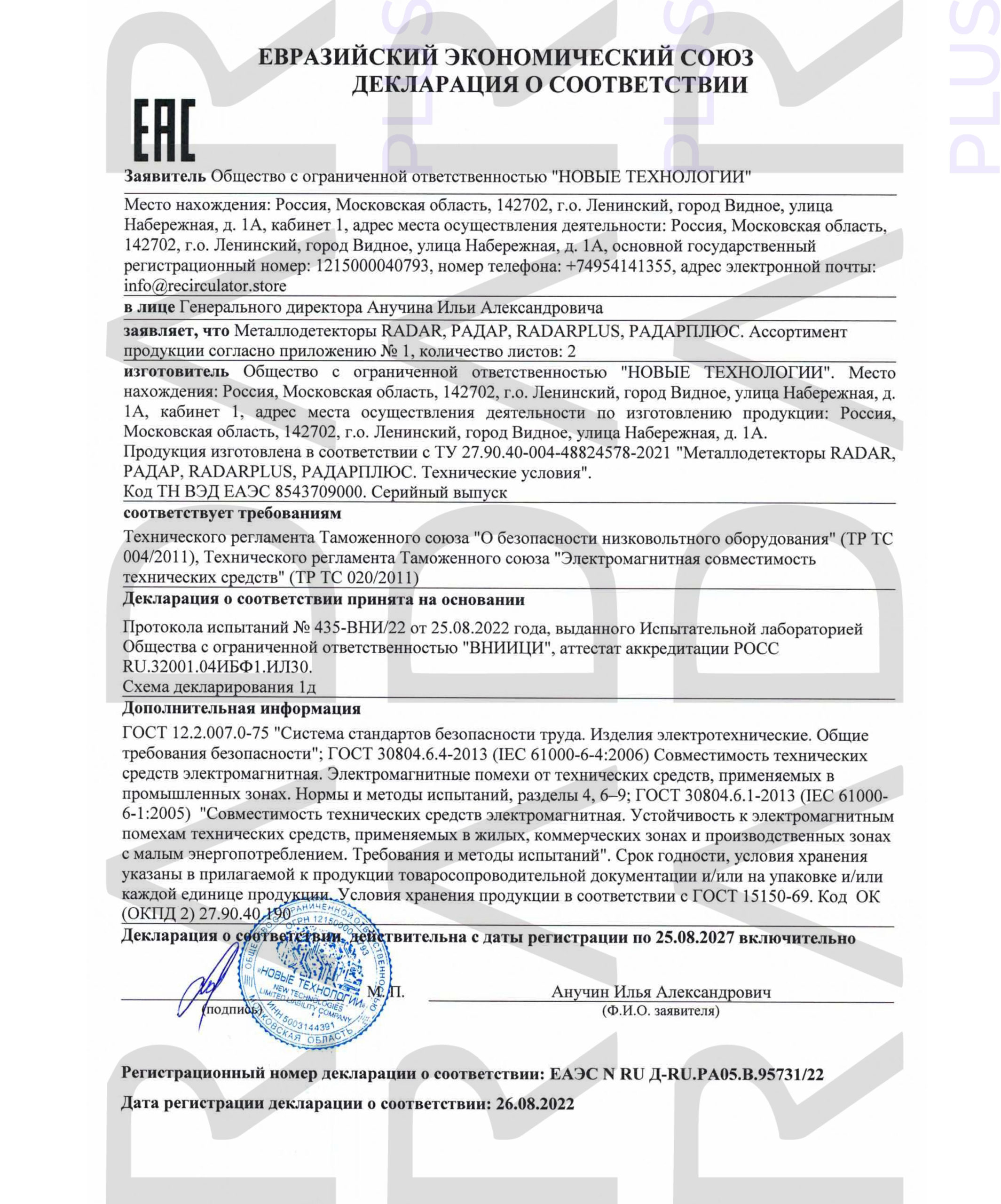

Model S DeclarationDownload
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
