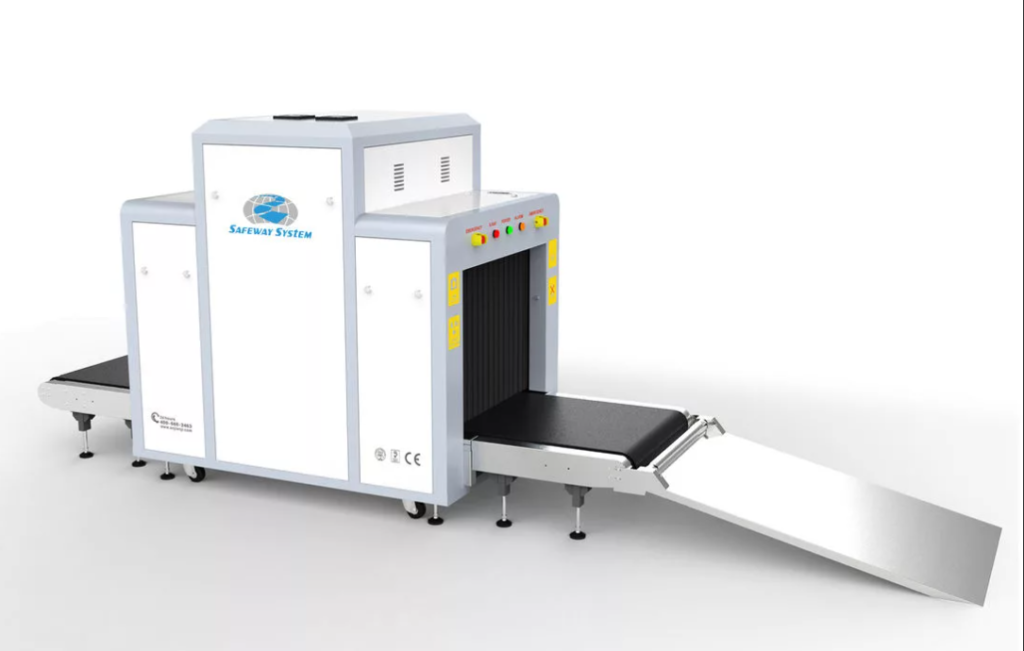

X-ray installation for inspection of luggage and goods SafeWay AT-8065
The X-ray Baggage Scanner is a small but comprehensive security solution specifically designed to quickly and efficiently scan small luggage, carry-on luggage, bags and parcels without having to open them and search the contents manually.
Due to the small size of the system, it can be installed almost anywhere where a high level of security is required.
The installation is designed for X-ray introscopy of small parcels, luggage and goods, obtaining visual information about their contents with recognition of substances and materials by effective atomic number in order to detect items and substances prohibited for import (export) or that do not correspond to the declared content.
Software that highlights different materials in different colors makes it much easier for security system operators to detect potentially dangerous objects.
Thus, the AT8065 X-ray scanning system provides non-contact and thorough inspection of the contents of bags and large luggage, based on detailed analysis of the acquired images.
The system also has a special set of programs designed to control the installation and obtain, visualize and process digital X-ray images.
MAIN FUNCTIONAL UNITS
- Frame;
- An inspection chamber consisting of a tunnel, a protective curtain and a conveyor;
- X-ray unit, including an X-ray generator and a beam limiting unit;
- X-ray receiver;
- Electrical equipment, which includes a distribution panel, a frequency converter and a control unit;
- Operator workstation, including a 20” monitor and/or optionally a 20” touch monitor;
- Set of spare parts;
- Set of operational documentation;
- Package;
- Input/output roller conveyors (optional).
HARDWARE FUNCTIONS
- Obtaining visual information with recognition of substances and materials by effective atomic number;
- Modern design, aesthetic appearance;
- Specialized ergonomic keyboard;
- Bidirectional scanning;
- Auto return of scanned object;
- Dual energy receiver;
- Installation control via touch monitor (optional);
- Adaptive cooling system;
- Operator workstation (table, chair) (optional);
- Input/output roller conveyors: 0.5 m; 1.0 m; 1.5 m (optional);
- Safety for photographic films according to ISO 1600 / 33 DIN;
- Fail-safe computer;
- External uninterruptible power supply (optional).
SOFTWARE FUNCTIONS
The software package provides operation managementBV 5030,and also provides the ability to obtain, visualize and process digital X-ray images.
Equipment control functions:
- Conveyor control, X-ray generator;
- Receiving data from the X-ray receiver;
- Automatic calibration and normalization of the detector;
- Shutting down the X-ray generator in case of emergency;
- Warming up the X-ray generator (manual/automatic);
- “Auto-stop” – automatic stop of the conveyor after scanning the object;
- “Auto return” – automatic return of an object after scanning.
Visualization and image processing functions:
- Obtaining images without additional processing;
- Isolation of optically dense objects;
- Adjusting the contrast of highly absorbing objects;
- Invert the image;
- Gamma correction of images;
- Optimization of overall contrast;
- Coloring in accordance with the calculated values of the atomic numbers of the substances that make up the objects being tested;
- Coloring substances with atomic numbers from a selected range;
- Pseudo-coloring of objects with the ability to select different palettes;
- Display of organic objects with atomic numbers equal to 7, 8 and 9;
- Displays substances according to the selected optical density range;
- Image scaling up to x96;
- Automatic saving of X-ray images in the archive;
- Automatic separation of explosives and narcotic substances, weapons, and objects with increased density.
Additional features:
- Saving X-ray images in original or JPEG format;
- View archive of images;
- Copying images to external media (flash drives);
- Preparation of service reports;
- Baggage counter;
- Monitoring the work of operators using the TIP module.
OPTIONS
- Input and output roller conveyors;
- Operator's workplace (table, chair);
- Set of test objects;
- Touch control;
- External uninterruptible power supply.
RADIATION SAFETY
The design of the installation, under all possible operating conditions, ensures that the equivalent power of the ambient dose of X-ray radiation is reduced at any accessible point at a distance of 0.1 m from the outer surface of the installation to a level of no more than 1 μSv/h.

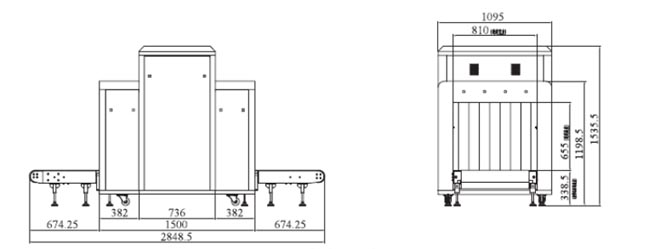

DrawingAT8065
| Parameter | Meaning | |
| DIMENSIONS | ||
| Overall dimensions (LxWxH), mm | 2848.5 x 1095 x 1535.5 | |
| Tunnel dimensions (WxH), mm | 810 x 655 | |
| System weight, kg | 650 | |
| CONVEYOR | ||
| Maximum distributed load on
Conveyor, kg |
200 | |
| Conveyor height from the floor, mm | 840 | |
| Conveyor speed, m/s | 0.2 | |
| Sound level, dB(A) | < 60 | |
| X-RAY SOURCE | ||
| Anode voltagekV | 160 | |
| Radiation Angle | 58° | |
| Radiation direction | Diagonally up | |
| Cooling system | oil bath, forced air cooling | |
| Film safety | up to ISO 1600 (33 DIN) | |
| X-RAY RECEIVER | ||
| Type | L-shaped array | |
| Dual energy technology | Eat | |
| X-ray detector type | solid state photodiode with scintillation coating |
|
| Number of elements in the array | 1024 | |
| Detective ability for copper
wire |
0.08 mm (40 AWG) | |
| Penetration ability on steel, mm | 36 guaranteed |
37 typically |
| Spatial resolution, line pairs per
mm |
1.0 in direction scanning |
1.0 along detector |
| Visible contrast levels, not less | 24 | |
| OPERATOR'S WORKSTATION PARAMETERS | ||
| CPU | Intel I3 3.3GHz | |
| StorageHD, GB | 500 | |
| RAM DDR3, GB | 2 | |
| Video | Built-in | |
| Monitor and control |
monitor 21.5 (1920x1080) keyboard and mouse |
|
| UPS – option | External | |
| OS | Windows 7,10 Industry, fault-tolerant configuration |
|
| Image archive | 50,000 images | |
| POWER SUPPLY | ||
| Network type | Single-phase with grounding | |
| Voltage | 230 VAC ± 10% / 120 VAC ± 5% | |
| Frequency, Hz | 50 / 60 | |
| Power consumption, no more, kVA | 0.9 | |
| CLIMATIC CONDITIONS | ||
| Workers | ||
| – ambient air temperature, °C | 0 to +40 | |
| – relative humidity (at + 20 °C) | up to 90%, no condensation | |
| During transportation | ||
| – ambient air temperature, °C | -20 to +60 | |
| During storage | ||
| – ambient temperature | -10 to +50 | |
| – relative humidity (at + 20 °C) | up to 98%, no condensation | |
