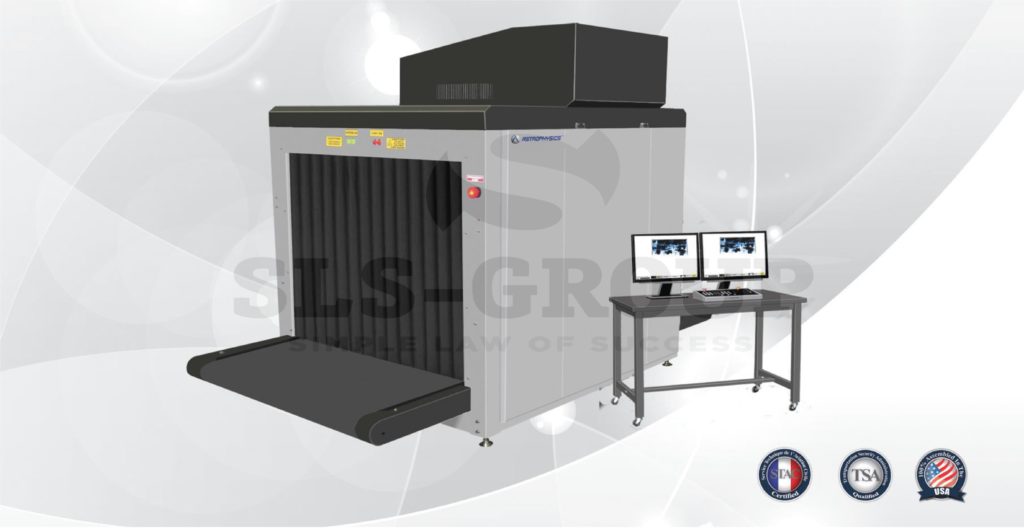

X-ray television installation (introscope) Astrophysics “XIS 1080D”
X-ray television installation Astrophysics “XIS 1080D”
XIS-1080D is a modern X-ray television installation with a tunnel of 101.0 cm x 80.0 cm. A low conveyor (30 cm from the floor) allows for quick loading and unloading of inspected objects. This is especially important when inspecting heavy cargo.
The technical solutions used in the XIS-1080D promote efficiency and ease of use for operators. In addition, the XIS-1080D is the smallest model in the XIS series for medium-sized cargo inspection and is ideal for applications where space is limited.
All Astrophysics installations are equipped with a continuous condition diagnostics system. This function allows you to monitor and identify faults at an early stage of their manifestation, which increases service life, reduces the cost of operation and possible repairs.
Another distinctive feature of Astrophysics installations is the formation of images of inspected objects in a 6-color format (depending on the atomic number of the substance), which greatly facilitates the operator’s work in identifying hazardous materials. A large number of options are included in the standard configuration, including Russian-language software and keyboard, 6-color image, real-time diagnostics.
Performance characteristics (TTX):
| Dimensions | |
| Tunnel size | 1010 x 800 mm |
| Overall dimensions, no more | 2366 x 1275 x 1717 mm |
| Packaging dimensions | 1910 x 1473 x 2110 mm |
| Weight, no more | 810 kg |
| Package weight | 1105 kg |
| Conveyor | |
| Maximum distributed load on
conveyor | 200 kg |
| Conveyor height | 300 mm |
| Conveyor belt speed | 0.23 m/s |
| X-ray source | |
| Anode voltage | 180 kV (operating 165 kV) |
| Source current | 1.2 mA |
| Radiation direction | vertically down |
| Cooling system | oil bath with air (convection)
cooling |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 4096 |
| Detective ability for copper
wire | 0.07 mm (40 AWG) – 0.08 mm (38 AWG) |
| Penetration ability on steel | 37 – 35 mm |
| Spatial resolution, line pairs per mm | 1.6 mm |
| Visible contrast levels, not less | 24 |
| Operator workstation parameters | |
| Monitor | Two 24” LCD monitors
1600 x 1200, 24-bit |
| Image archive | 100.000 images |
| Power supply | |
| Voltage | 220V (±10%), 50 Hz, 10 A max |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity | up to 95%, no condensation |
| During storage: | |
| – ambient temperature | -20° – +60 °С |
| – relative humidity | up to 95%, no condensation |
