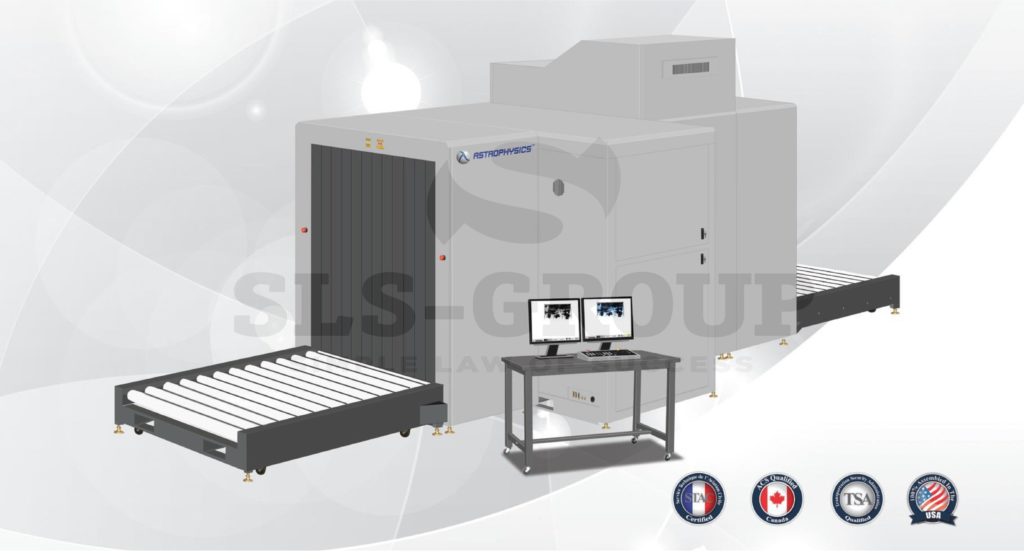

X-ray television installation (introscope) Astrophysics “XIS 1517DV (200)”
X-ray television installation Astrophysics “XIS 1517DV (200)”
XIS-1517DV (200kV) is a modern inspection X-ray television installation with tunnel dimensions of 150.0 cm x 170.2 cm. XIS-1517DV (200kV) combines dual-angle technology and a powerful X-ray generator, providing improved image quality and increased penetration power. XIS-1517DV (200kV) was specially designed for in-depth inspection of customs and military cargo.
The XIS-1517DV (200kV) has a low conveyor height of only 38.3 cm and can handle up to 2000 kg of cargo without sacrificing throughput speed, increasing the efficiency and safety of the inspection area of the transport hub. XIS-1517DV (200kV) combines advanced technologies in ensuring cargo safety.
All Astrophysics installations are equipped with a continuous condition diagnostics system. This function allows you to monitor and identify faults at an early stage of their manifestation, which increases service life, reduces the cost of operation and possible repairs.
Another distinctive feature of Astrophysics installations is the formation of images of inspected objects in a 6-color format (depending on the atomic number of the substance), which greatly facilitates the operator’s work in identifying hazardous materials. A large number of options are included in the standard configuration, including Russian-language software and keyboard, 6-color image, real-time diagnostics.
Performance characteristics (TTX):
| Dimensions | |
| Tunnel size | 1500 x 1702 mm |
| Overall dimensions, no more | 8531 x 2591 x 2863 mm |
| Packaging dimensions | 1 x 2946 x 1435 x 2515 mm
2 x 2184 x 1435 x 2515 mm 3 x 2032 x 1905 x 813 mm 4 x 2184 x 1435 x 889 mm |
| Weight, no more | 5300 kg |
| Package weight | 6900 kg |
| Conveyor | |
| Maximum distributed load on
conveyor | 2000 kg |
| Conveyor height | 383 mm |
| Conveyor belt speed | 0.10 m/s |
| X-ray source | |
| Anode voltage | two 200 kV |
| Source current | 1.0 mA each |
| Radiation direction | horizontally sideways, vertically downwards |
| Cooling system | oil bath with air (convection)
cooling |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 4096 |
| Detective ability for copper
wire | 0.07 mm (40 AWG) – 0.08 mm (38 AWG) |
| Penetration ability on steel | 52 – 50 mm |
| Spatial resolution, line pairs per mm | 1.3 mm |
| Visible contrast levels, not less | 24 |
| Operator workstation parameters | |
| Monitor | Two 24” LCD monitors
1600 x 1200, 24-bit |
| Image archive | 150,000 images |
| Power supply | |
| Voltage | 220V (±10%), 50 Hz, 15 A max |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity | up to 95%, no condensation |
| During storage: | |
| – ambient temperature | -20° – +60 °С |
| – relative humidity | up to 95%, no condensation |
