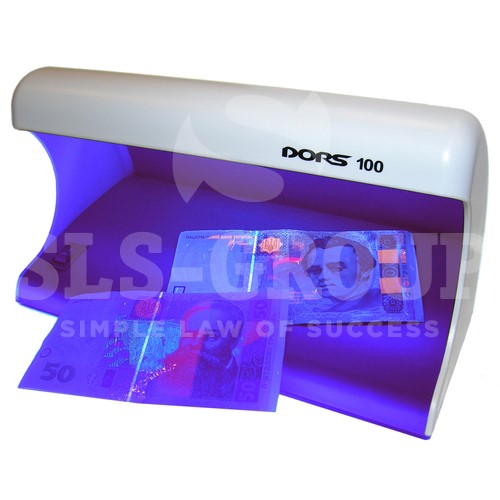

Ultraviolet currency detector "DORS 100"
The main purpose of the dors 100 infrared viewing currency detector is to control the authenticity of securities, banknotes, banknotes, documents, identity cards, excise and special stamps that have protective infrared marks.
To check for the presence of infrared marks, you need to place a bill or documents in the viewing area in front of the device, and the built-in video camera will transmit the image to the detector monitor. The brightness and contrast of the image can be adjusted independently.
For more detailed study, saving and editing, the image displayed on the built-in monitor can be transferred to an external monitor or computer.
The Dors 100 detector can be used to verify the authenticity of any security printed product.
The main differences of the dors 100 detector are as follows:
- the latest ergonomic (human-friendly) design;
- The ultraviolet light source with a total power of 12 W is very strong;
- the detector has a slot in the back of the case for easy monitoring of large documents;
- thanks to new fail-safe electronic ballasts, fluorescent lamps operate reliably and efficiently;
- Bright external light will not interfere with the Dors 100 detector and will not create reflections since it is dark inside.
The Dors 1100 device can be used both stationary (operation from a regular power supply) and autonomously (operation from a car battery).
Switching between video signal sources (built-in IR camera of the detector / remote television magnifier / external source) is done by successively pressing the corresponding button of the detector.
The dors 100 series UV detectors offer the following detection types:
- UV control;
- white reflected light test;
- testing in white transmitted light;
- geometric control.
UV control will determine:
- the presence of a general luminous background on the paper;
- traces, pattern fragments, security threads and fibers.
A white reflected light test will show:
- types of printing;
- printing methods;
- image fragments;
- hidden images;
- security holograms;
- printing defects;
- possible erasures or erasures.
Examination in white transmitted light will reveal the following security elements:
- watermark;
- protective threads;
- microperforation;
- a matching image when the front and back sides of a banknote are superimposed on each other.
A geometric check will reveal:
- banknote sizes;
- how precisely the individual marks are located on them;
- will show the area and area of missing parts when determining the solvency of banknotes.
The Dors 100 series of detectors is characterized by a high degree of counterfeit detection. The detector is successfully used to identify possible counterfeits in many banks and trading enterprises.
Government agencies and many other industries use this equipment.
Performance characteristics (TTX) of the DORS 100 currency detector:
| Nutrition | 220 V |
| UV lamp | 6 W |
| Power consumption | Up to 20 W |
| Overall dimensions (WxDxH) | 226x131x131 mm |
| Weight without packaging | 0.9 kg |
