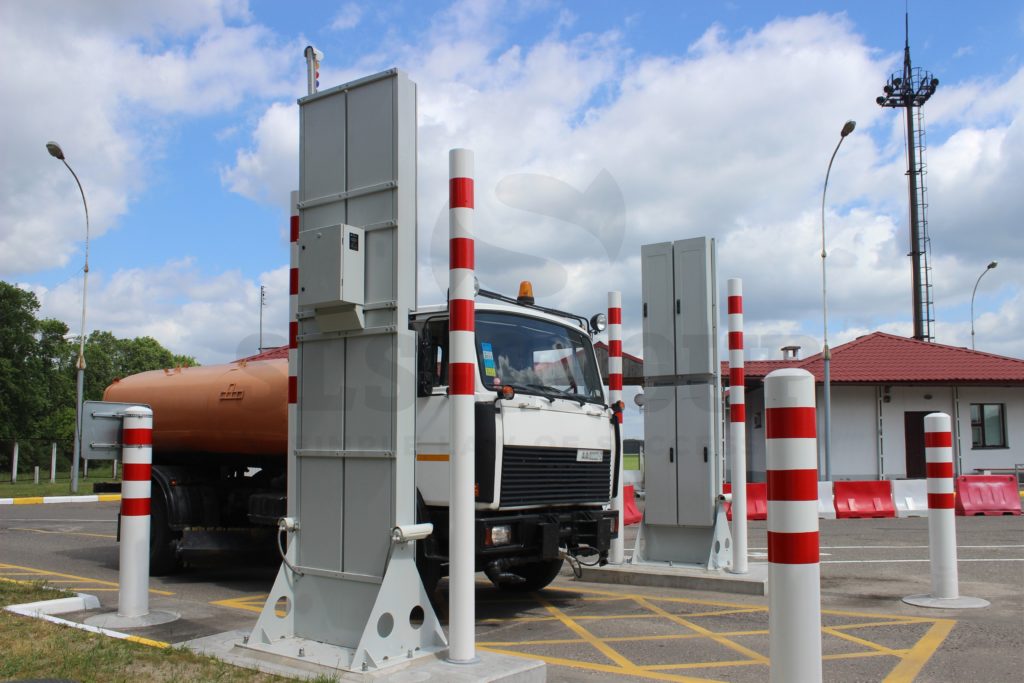

Radiation monitoring installation “URK-PM5000BM”
The PM5000B series of radiation portal monitors are highly sensitive stationary systems designed to monitor the movement of radioactive materials. Gamma, neutron and gamma-neutron radiation monitors are recommended for testing passenger cars, trucks, and trains.
Installations of the PM5000BM series are measuring instruments.
The devices can be installed at border and customs checkpoints; at facilities using or producing nuclear materials; at the entrance control point at enterprises to exclude the entry of radiation sources into technological processes that use or process secondary raw materials.
Operating principle
The devices are mounted on bases on the ground, suspended on special supports or walls and are designed for operation in adverse climatic conditions. Depending on the requirements, monitors can be single-sided or double-sided, and can also have different test zone heights and detect all types of radiation. Car monitors can be equipped with video surveillance systems, the ability to exchange data with a computer and paging communication with specialists responsible for performing radiation monitoring procedures.
Advantages
- Improved sensitivity due to larger volume detectors;
- Application of the latest technologies and data processing algorithms;
- Modular construction principle;
- Sound and light alarm;
- 24/7 operation with recording of change history;
- Possibility of connecting a video surveillance system;
- The ability to combine monitors into a single network with control from one computer and subsequent integration into a higher-level network with control from a command center of expertise.
Software
Software functions for working with portal monitors:
- remote monitoring of the status of portal monitors;
- identification of the object that caused the trigger;
- automatic report generation;
- ability to transfer data to a remote command center.
| Available modifications | |
| URK-RM5000VM-01 | two-way gamma monitor consisting of four detection units |
| URK-RM5000VM-05 | two-way gamma monitor consisting of two detection units |
| URK-RM5000VM-09 | two-way gamma neutron monitor, consists of two gamma radiation detectors and two neutron radiation detectors based on10B/ZnS(Ag) |
| URK-RM5000VM-13 | double-sided neutron monitor, consisting of two neutron radiation detectors based on10B/ZnS(Ag) |
| URK-RM5000VM-14 | double-sided neutron monitor consisting of four neutron radiation detectors based on10B/ZnS(Ag) |
Specifications
| Parameter | Meaning | ||||
| РМ5000ВМ-01 | РМ5000ВМ-05 | РМ5000ВМ-09 | РМ5000В-13 | РМ5000В-14 | |
| Type of detected radiation | gamma | gamma, neutron | neutron | ||
| Control zone parameters (width and height in meters) | 6.0 x 4.5;
6.0 x 4.5 |
3.0 x 2;
6.0 x 2 |
3.0×2;
6.0×2 |
3.0×2;
6.0×2 |
3.0×4.5;
6.0×4.5; 6.0×4.5 |
| Source speed, km/h, no more | 8; 20 | 5; 8 | 5; 8 | 5; 8 | 5; 8; 20 |
| Number of false positives | 1/10000 | ||||
| Range of recorded energies | from 0.02 to 3.0 MeV | ||||
| Number of detection units | 4 | 2 | 2 gamma,
2 neutron |
2 neutron | 4 neutron |
| Limits of permissible basic relative error when measuring the average count rate from each database | no more than ± 30%
(gamma) |
no more than ± 30%
(gamma). no more than ± 35% (neutron) |
no more than ± 35%
(neutron) |
||
| Exchange of information with PC | Ethernet port with a cable up to 100 m long, a distance of up to 1000 m is possible using special data transmission equipment | ||||
| Housing protection degree | IP65 | ||||
| Alarm type | sound and light | ||||
| Minimum detectable quantities of radioactive materials | |||||
| Am-241, MBq, (µCi) | 1.5 (41)
2.3 (62) |
0.62 (17)
2.15 (58) |
0.62 (17)
2.15 (58) |
– | – |
| Cs-137, MBq, (µCi) | 0.16 (4.3)
0.24 (6.5) |
0.065 (1.8)
0.23 (6.2) |
0.065 (1.8)
0.23 (6.2) |
– | – |
| Co-60, MBq, (µCi) | 0.10 (2.7)
0.15 (4.1) |
0.040 (1.1)
0.145 (3.9) |
0.040 (1.1)
0.145 (3.9) |
– | – |
| Co-57, MBq (µCi) | 0.20 (5.4)
0.30 (8.1) |
0.085 (2.3)
0.29 (7.8) |
0.085 (2.3)
0.29 (7.8) |
– | – |
| Ba-133, MBq, (µCi) | 0.10 (2.7)
0.15 (4.1) |
0.040 (1.1)
0.145 (3.9) |
0.040 (1.1)
0.145 (3.9) |
– | – |
| U-238, g | 1300
1900 |
460
1800 |
460
1800 |
– | – |
| U-235, g | 80
120 |
32
110 |
32
110 |
– | – |
| Pu-239, g | 2.3
3.4 |
0.9
3.2 |
0.9
3.2 |
– | – |
| Pu-239, g
(4 cm Pb) |
– | – | 110
340 |
110
340 |
75
240 400 |
| Cf-252, neutron/s | – | – | 6500
20000 |
6500
20000 |
4500
14000 24000 |
| Weight | 610 kg | 320 kg | 630 kg | 340 kg | 650 kg |
| Relative humidity | 98% at + 40 °C | ||||
| Operating temperature range | -30 to +50 °C | ||||
| Supply voltage | industrial AC network 115-230 V., 47-63 Hz,
or built-in 12 V DC battery (backup power for at least 8 hours) |
