Transport monitors

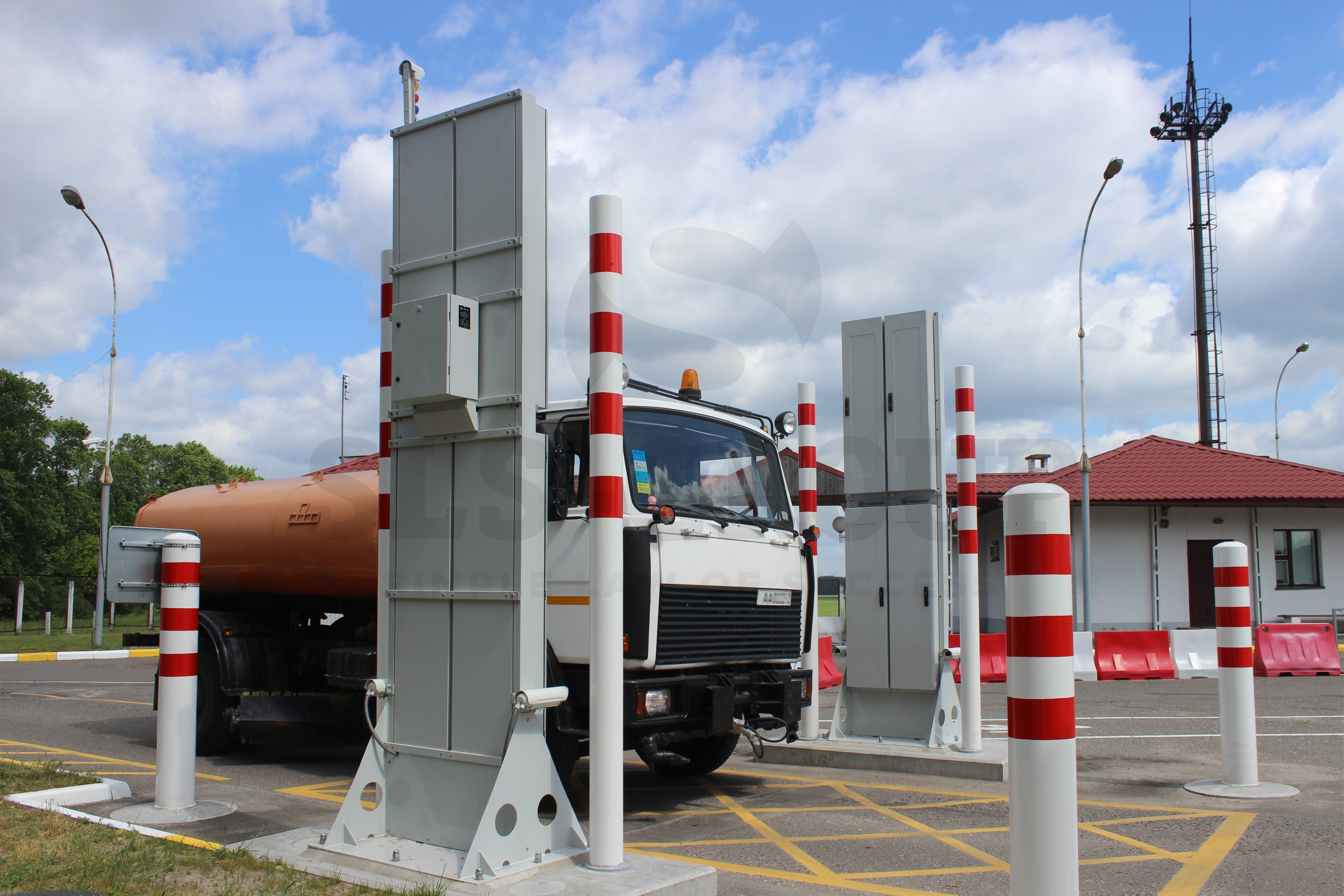

Radiation monitoring installation “URK-PM5000BM”

Radiation monitoring unit URKPM5000BM 0 RUB

The PM5000B series of radiation portal monitors are highly sensitive stationary systems designed to monitor the movement of radioactive materials. Gamma, neutron and gamma-neutron radiation monitors are recommended for testing passenger cars, trucks, and trains. Installations of the PM5000BM series are measuring instruments. The devices can be installed at border and customs checkpoints; at facilities using orMore details

Radiation monitoring unit URK-RM5000VM

Radiation monitoring unit URKRM5000VM 0 RUB

The PM5000B series of radiation portal monitors are highly sensitive stationary systems that are designed to provide control over the movement of radioactive materials. Gamma, neutron and gamma-neutron radiation monitors are recommended for monitoring passenger and freight vehicles, as well as trains. Installations of the PM5000BM series are measuring instruments. Monitors can be installed at border and customs checkpoints; at the facilities,More details

Radiation monitoring installation "URK-PM5000B"

Radiation monitoring unit URKPM5000B 0 RUB

The PM5000B series of radiation portal monitors are highly sensitive fixed systems capable of monitoring the movement of radioactive materials. The devices are recommended for testing passenger cars and trucks, as well as trains. Gamma, neutron and gamma-neutron radiation monitors are installed at border and customs checkpoints; at facilities using or producing nuclear materials; at the entrance control point at enterprises to prevent the entry of radiation sourcesMore details

Transport portal

The transport monitor is used to detect transported nuclear and radioactive substances. The devices use gamma or neutron radiation, accurately detecting prohibited substances inside containers, trunks, parcels, and boxes.The devices are used in places where it is necessary to check the radiation level of transported goods:

• seaports;
• airports;
• household waste disposal sites;
• customs points;
• industrial buildings;
• factories;
• medical centers.

Operating principle

The transport radiation portal monitor automatically detects radioactive substances carried by people or transported by vehicles. Gamma or neutron radiation is used for testing. The device produces beams when a person or vehicle is in the coverage area.

The device compares radiation levels with background radiation. When the indicators change, a sensor is triggered, which triggers an alarm. The sensitivity of the device depends on the distance of the object under study from the sensor, as well as the speed of movement.

To inspect passenger vehicles, it is enough to install one radiation transport monitor; the width of the travel area should not be more than 3 meters. For freight transport, two devices are installed. The distance between them should be 4.5 meters. For railway transport, the distance between the posts and the width of the passage is up to 6 meters.

To increase the sensitivity of radiation monitoring of vehicles, it is necessary to install stations in areas where cars are forced to slow down. The speed of transport should not exceed 8 km/h. There are devices designed for higher speeds, but at high speeds false alarms are possible.

You can order devices for monitoring vehicle radiation from the SLS-GROUP company. Modern models are presented in the catalog and are available for order. You can get advice by phone.
