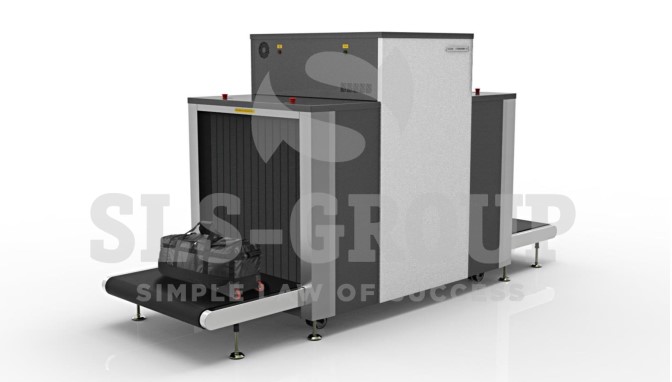

X-ray television installation (introscope) ADANI BV 100100TB (ADN 100)
A-EYE artificial intelligence system for automatic threat recognition
The ADANI BV 100100TB X-ray television installation, also known as ADN 100, is equipped with a unique A-EYE artificial intelligence system, which significantly increases the level of security and accuracy during inspection. This innovative technology is designed to automatically recognize potential threats such as guns, knives, and ammunition.

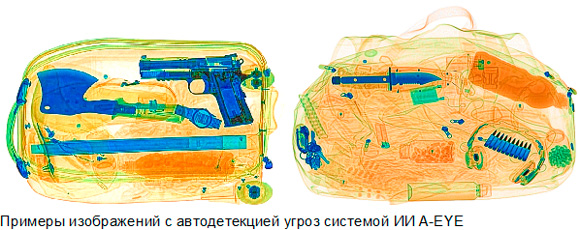

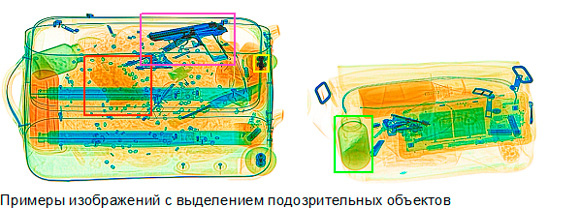

The A-EYE system uses advanced machine learning and image analysis algorithms, which allows it to automatically identify and highlight objects that pose a threat in the image. This significantly reduces verification time and reduces the likelihood of human error, making the process more efficient. The technology is integrated into the system interface and provides quick feedback to the operator, facilitating decision making.
Support for 7, 3 color and continuous image coloring palettes
ADANI BV 100100TB (ADN 100) offers visualization capabilities thanks to the support of different color palettes. The installation supports 7- and 3-color palettes, as well as a continuous palette of image coloring, which allows you to maximally adapt the visualization to specific inspection conditions.
Such options are useful when analyzing complex objects when detailed differences in materials by their density and composition are required. These tools provide operators with a more accurate picture to distinguish between organic and inorganic materials, which is especially important for identifying prohibited items and substances.
Fault-tolerant workstation configuration
The X-ray television installation ADANI BV 100100TB (ADN 100) is built on the basis of a fault-tolerant workstation configuration, which ensures uninterrupted operation of the system even in the event of component failure or operator error. This architecture is based on duplication of critical components and automatic switching to backup resources in the event of failure. This feature significantly increases the service life of the installation and minimizes maintenance costs.
Examples
|
|
Performance characteristics (TTX):ADANI BV 100100TB
| Dimensions | |
| Dimensions of inspection tunnel - Width - Height |
1010±3 mm 1010±5 mm |
| Overall dimensions, no more - Width - Height - Length |
1280 mm 1850 mm 3550 mm |
| Weight, no more | 950 kg |
| Conveyor | |
| Maximum distributed load on conveyor |
200 kg |
| Conveyor height | 320 mm |
| Conveyor belt speed | 0.22±0.03 m/s |
| Sound level | < 65 dB(A) |
| X-ray source | |
| Anode voltage – Standard mode – High penetration mode |
140 kV 160 kV |
| Radiation Angle | 74° |
| Radiation direction | diagonally up |
| Cooling system | oil bath |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 65 536 |
| X-ray detector type | solid state photodiode with scintillation coating |
| Detective ability for copper wire |
0.1 mm (38 AWG) |
| Penetration ability on steel, standard mode | 28 mm guaranteed, 30 mm typical |
| Penetration ability on steel, mode increased penetrating ability |
34 mm guaranteed, 36 mm typical |
| Spatial resolution, line pairs per mm | 1.0 |
| Visible contrast levels, not less | 24 |
| Operator workstation parameters | |
| Monitor and control | LCD monitor 19.5” (1920x1080) with a specialized keyboard or LCD monitor 21.5” (1920x1080) with a specialized keyboard or LCD 21.5” (1920x1080) multi-touch touch monitor with remote control |
| Image archive | 50,000 images |
| Power supply | |
| Voltage | 230 VAC ± 10% / 120 VAC ± 5% |
| Frequency | 50 / 60 Hz |
| Power consumption | no more than 1.0 kVA |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity (at + 20 °C) | up to 90%, no condensation |
| During transportation: | |
| – ambient temperature | -20° – +50 °С |
| During storage: | |
| – ambient temperature | -10° – +50 °С |
| – relative humidity (at + 35 °C) | up to 98%, no condensation |
Description of image coloring palettes ADANI BV 100100TB (ADN 100):
| Material type | Effective atomic number | 3 colors | 7 colors | Continuous palette | Example | Possible threats |
| Light organic | 1-6 | Bronze | Red |  |
Polyethylene, light hydrocarbons | Natural gas, Gasoline |
| Organic | 6-8 | Bronze | Bronze | Wood, oil | Explosives | |
| Low-density organics | 8-10 | Bronze | Olive | Paper, alcohol | Drugs | |
| Mixed materials | 10-12 | Green | Lime | Glass | Jewelry, precious stones stones | |
| Light metals | 12-18 | Green | Green | Aluminum, silicon | Gunpowder, detonators | |
| Heavy metals | 18-30 | Blue | Blue | Steel | Weapons, ammunition, knives | |
| Dense metals | 30+ | Blue | Violet | Gold, silver | Smuggling | |
| Impermeable materials | – | Black | Black | Black | Lead | Disguise of dangerous objects |
