X-ray television installation (introscope) ADANI BV 160180 (ADN 180)
The BV 160180 installation is needed for visual inspection of various objects (oversized luggage, cargo and other items) without opening them.
Dual-energy technology provides automatic color coding of materials with different atomic numbers and optical densities, which allows the operator to determine the presence of dangerous, undeclared or prohibited for import (export) objects.
The BV 160180 installation allows you to identify weapons, explosives, drugs, and other dangerous objects that pose a security threat.
Description ADN 180
X-ray television installation ADANI BV 160180 (ADN 180) is an innovative equipment designed to create a high level of security during the inspection of baggage and cargo. This installation is an essential part of the security complex; it provides reliable control and prevention of the smuggling of weapons, explosives, and drugs.
The heart of the unit is the X-ray system, which generates high-definition images, allowing operators to carry out analysis efficiently. Each image is created using an innovative data processing system, so the operator can accurately determine the shape and composition of each item, even if it is combined with others in the same item.
ADANI BV 160180 is designed taking into account global safety and quality standards. The developers took care of ergonomics and convenience: the installation provides the operator with an intuitive interface that simplifies training and increases work speed. The system easily integrates with other security tools and can be adapted to specific needs.
This X-ray television installation can be used in the most difficult conditions, while remaining effective due to its advanced technical characteristics and resistance to dynamically changing conditions.
Operating principle of ADN 180
The ADANI BV 160180 X-ray television installation operates on the basis of complex physical and digital processes and provides high accuracy and reliability when inspecting cargo and luggage. The system uses X-rays to generate images of objects inside suitcases, containers or other containers.
Stages of system operation:
- generation of X-rays: the radiation source generates X-rays that are directed through the object; the rays, interacting with different materials, are absorbed and scattered depending on the density and composition of the objects;
- ray detection: after passing through an object, residual X-rays are captured by highly sensitive detectors, they convert physical information (the number and intensity of transmitted rays) into electrical signals;
- conversion to image: electrical signals enter the computing unit, where they are processed by advanced algorithms, the result of the processing will be the creation of a detailed X-ray image that displays the internal contents of the object in the form of a two-dimensional image;
- analysis: the resulting image is sent to the operator’s monitor, which analyzes it for the presence of dangerous or suspicious objects; to facilitate this task, the system can automatically highlight objects that require close attention using intelligent software;
- interactive features: the operator can use the Smart Zoom functions, color palettes for detailed viewing and interpretation of data, improving the accuracy of determinations.
This system detects hidden threats and analyzes them with a high degree of confidence, which minimizes the risk of dangerous items moving through checkpoints.
Purpose of ADN 180
The ADANI BV 160180 X-ray television installation is designed for comprehensive control of baggage and cargo in different locations. Its task is to serve as the first line in the system of protecting facilities and infrastructure from unauthorized movement of dangerous items, such as weapons, explosives, and contraband materials.
Main areas of application:
- aviation security: the installation is used at airports to inspect passengers' luggage and cargo; it allows high-precision identification of potentially dangerous objects, reducing the risk of illegal entry on board;
- transport terminals: the effectiveness of using the system in sea and railway terminals, where it is necessary to quickly and efficiently inspect large cargo, containers, and parcels, is invaluable;
- security of supply chains: in distribution centers, logistics hubs, ADANI BV 160180 ensures careful control over transported goods, preventing the risk of transporting illegal products or hazardous substances;
- government agencies, large corporate facilities: among the users of the installation are critical infrastructure institutions, corporate facilities that require strict control over items brought into the building;
- events with large crowds of people: the installation is also used at events where there are many participants, quick, reliable inspection of personal belongings at the entrance is required.
ADANI BV 160180 occupies an important place in the formation of comprehensive security. Its purpose is to detect dangerous objects, providing confidence to everyone involved in the control system, so that any hidden and carefully packaged threats do not go unnoticed. This installation increases overall safety by integrating into the system of preventive measures at facilities of any complexity and purpose.
Characteristics
The ADANI BV 160180 X-ray television installation has a number of properties that make it indispensable in new security systems:
- high resolution: high-resolution fluoroscopy technology allows you to identify small parts inside luggage or cargo, which is important for identifying hidden threats;
- advanced image processing software: intelligent image processing and analysis software helps operators quickly evaluate complex objects and take adequate measures if a threat is detected;
- speed: the installation can process a significant amount of luggage and cargo in a short time, which reduces delays and provides high throughput in places with a large flow of people and cargo.
- Ergonomic design: ensures comfortable work for operators throughout the day, reducing the likelihood of errors caused by fatigue;
- flexibility in use: the ability to adapt the installation for different types of cargo and luggage allows it to be used effectively in different conditions and used in different scenarios;
- environmental safety: the installation is designed to meet strict environmental safety standards, reducing environmental impact while protecting operators from radiation exposure;
- compatibility, integration: ease of integration with existing control systems allows it to be quickly implemented into any infrastructure without significant costs or difficulties.
These characteristics make the ADANI BV 160180 a modern and reliable installation that meets modern security standards, and allows you to effectively solve problems of varying complexity in the field of inspection and control.
|
|
Functions of ADN 180:
- increased load capacity: the unit can handle heavy, bulky cargo, which makes it ideal for points with a large flow of goods and luggage;
- automatic identification of suspicious objects: the system is equipped with innovative software that helps to automatically identify suspicious objects, drugs, explosives, this significantly speeds up inspection and reduces the likelihood of human error;
- Smart Zoom function: allows the operator to enlarge the image while maintaining clarity, which is especially important when examining an object in detail;
- support for 7, 3-color, continuous image coloring palettes: different palettes help operators better distinguish between materials and substances, increasing the efficiency of assessing the contents of luggage or cargo;
- telemetry: the system provides data on the operation of the installation in real time, which allows you to quickly monitor its condition and performance;
- fault-tolerant configuration of the workstation: protective mechanisms guarantee stable operation of the system even in the event of unforeseen failures, ensuring continuous control and security.
To order an X-ray television installation ADANI BV 160180, please contact SLS Group LLC. We offer to order equipment with delivery to any city in Russia. Don’t miss the opportunity to increase the level of security at the site - leave a request by phone or on the website.

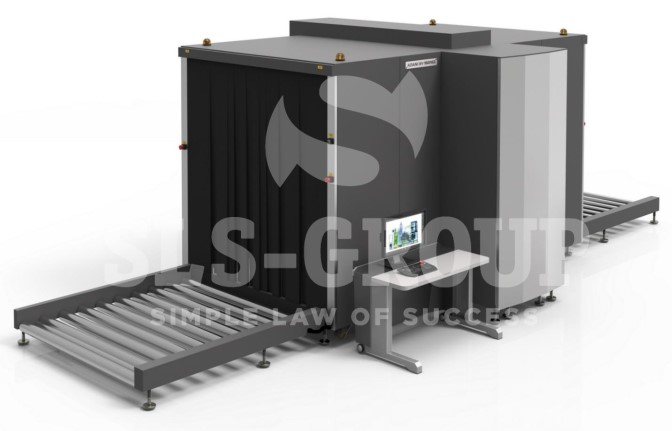

Example images of ADANI BV 160180 (ADN 180)
|
|
Performance characteristics (TTX):
| Dimensions | |
| Dimensions of inspection tunnel - Width - Height |
1750±3 mm 1850±5 mm |
| Overall dimensions, no more - Width - Height - Length |
2750 mm 2400 mm 6800 mm |
| Conveyor working width | 1600 mm |
| Weight, no more | 3000 kg |
| Conveyor | |
| Maximum distributed load on conveyor |
3000 kg |
| Cart height | 320 mm |
| Conveyor belt speed | 0.22±0.03 m/s |
| Sound level | < 75 dB(A) |
| X-ray source | |
| Anode voltage | 200 kV |
| Radiation Angle | 74° |
| Radiation direction | diagonally up |
| Cooling system | oil bath |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 65 536 |
| X-ray detector type | solid state photodiode with scintillation coating |
| Detective ability for copper wire |
0.13 mm (36 AWG) |
| Penetration ability on steel | 34 mm guaranteed, 36 mm typical |
| Visible contrast levels, not less | 24 |
| Operator workstation parameters | |
| Monitor and control | LCD monitor 19.5” (1920x1080) with a specialized keyboard or LCD monitor 21.5” (1920x1080) with a specialized keyboard or LCD 21.5” (1920x1080) multi-touch touch monitor with remote control |
| Image archive | 20,000 images |
| Power supply | |
| Voltage | 230 VAC ± 10% / 120 VAC ± 5% |
| Frequency | 50 / 60 Hz |
| Power consumption | no more than 3.0 kVA |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity (at + 20 °C) | up to 90%, no condensation |
| During transportation: | |
| – ambient temperature | -20° – +50 °С |
| During storage: | |
| – ambient temperature | -10° – +50 °С |
| – relative humidity (at + 35 °C) | up to 98%, no condensation |
Description of image coloring palettes ADANI BV 160180 (ADN 180):
| Material type | Effective atomic number | 3 colors | 7 colors | Continuous palette | Example | Possible threats |
| Light organic | 1-6 | Bronze | Red |  |
Polyethylene, light hydrocarbons | Natural gas, Gasoline |
| Organic | 6-8 | Bronze | Bronze | Wood, oil | Explosives | |
| Low-density organics | 8-10 | Bronze | Olive | Paper, alcohol | Drugs | |
| Mixed materials | 10-12 | Green | Lime | Glass | Jewelry, precious stones stones | |
| Light metals | 12-18 | Green | Green | Aluminum, silicon | Gunpowder, detonators | |
| Heavy metals | 18-30 | Blue | Blue | Steel | Weapons, ammunition, knives | |
| Dense metals | 30+ | Blue | Violet | Gold, silver | Smuggling | |
| Impermeable materials | – | Black | Black | Black | Lead | Disguise of dangerous objects |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
