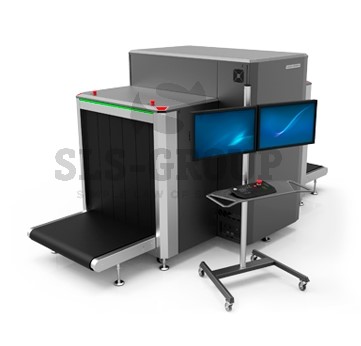

X-ray television installation introscope ADANI BV100100DV ADN 100D
Security at important infrastructure facilities, in protected areas, and places with large crowds of people is one of the important values. Airports, train stations, customs checkpoints, large enterprises, security institutions - wherever there is movement of people and cargo in large quantities, fast, high-quality inspection is necessary.
X-ray television introscope ADANI BV100100DV ADN 100D is an advanced baggage and cargo inspection device. It is designed to maintain a high level of security at important infrastructure facilities, as well as in government buildings and crowded places. The main goal is the instant, effective detection of illegal or dangerous items.
The two-projection X-ray television installation ADANI BV 100100DV is needed for inspection of large bags, packages, medium and large boxes, and other small or medium-sized luggage.
Application
Large international airports were the first to begin implementing such solutions en masse.
The development of production has made it possible to expand their scope of application.Areas of operation of the ADANI BV100100DV introscope:
- Railway stations.
- Airports, airfields.
- Border points, customs.
- Judicial buildings.
- Government buildings.
- Post offices.
- Offices, shopping centers.
Purpose and characteristics
The purpose of the ADANI BV 100100 DV introscope is to identify and identify illegal, dangerous items in the inspected cargo. For this purpose, an installation is used that generates X-ray radiation, then the data is processed and displayed on the controller display screen.
ADANI BV100100DV introscopes are used in different sectors:
- railway stations: for checking luggage and hand luggage of passengers;
- airports, airfields: inspection of checked baggage, hand luggage;
- Border control points, customs posts: checking cargo and goods for the presence of prohibited substances.
- buildings of a legal, government nature: detailed inspection of incoming materials, packages;
- postal and courier services: control of forwarded parcels and packages.
Key Features:
- generating plant anode voltage – 140 kV;
- photosensitivity of the receiving film – 1600 ISO;
- the maximum degree of penetration through a continuous layer of steel is 3 cm;
- resolution – 1.5 mm along the scanning line.
Weight and dimensions and other characteristics:
- length – 3.7 m
- height – 1.825 m;
- width – 1.6 m;
- weight – 1.25 t;
- conveyor load – up to 0.25 t;
- average conveyor speed is 0.33 m/s.
These characteristics allow you to place and use the equipment in convenient places, including at usual checkpoints.
Features of Adani ADN 100D
A special feature of ADANI inspection systems is the ability to customize the display of inspection results in various color configurations. It is possible to display two image options - in three or seven colors. Each color indicates an area of interest for the guard or operator, as well as the type of items detected. Another feature is the speed of start-up, the total start-up time takes less than a minute.
|
|
Peculiarities
- smartzoom: this feature allows operators to take a closer look at objects, enlarging the image without reducing quality, this is especially useful for more detailed analysis of suspicious objects;
- automatic identification of suspicious objects: the system automatically identifies objects with potential threats and highlights them for the operator, which speeds up inspection and reduces the risk of human error;
- A-EYE artificial intelligence system: A-EYE is an advanced AI system that helps in the interpretation of X-ray images, improving detection accuracy, reducing the number of false positives;
- support for 7, 3-color, continuous image coloring palettes: allows operators to select the appropriate image display mode, improving the recognition of objects and substances;
- fault-tolerant configuration of the workstation: the system is built taking into account maximum reliability, which reduces the likelihood of failures and increases the overall reliability of the equipment;

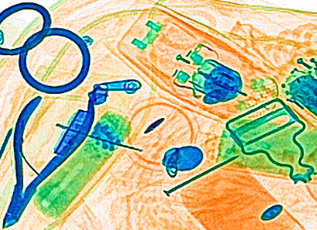

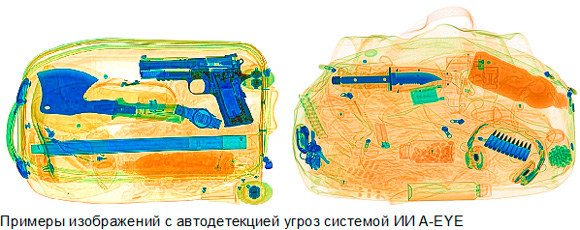

Example images of ADANI BV100100DV ADN 100D
|
|
Device functions
- Smart Zoom
- Automatic identification of suspicious objects
- A-EYE Artificial Intelligence System
- Support for 7, 3 color and continuous image coloring palettes
- Fault-tolerant workstation configuration
Advanced Specification Tables
| Characteristic | Meaning |
| X-ray radiation | Anode voltage: 140 kV |
| Permission | 1.5 mm along the scan line |
| Dimensions (L x W x H) | 3.7 m x 1.6 m x 1.825 m |
| Weight | 1.25 t |
| Maximum conveyor load | 0.25 t |
| Average conveyor speed | 0.33 m/s |
| Climatic conditions | Temperature range: -20°C to +50°C |
These characteristics make the ADANI BV100100DV ADN 100D an ideal device for deployment in any location where a high degree of security is required.
Description of image coloring palettes ADANI BV100100DV ADN 100D:
| Material type | Effective atomic number | 3 colors | 7 colors | Continuous palette | Example | Possible threats |
| Light organic | 1-6 | Bronze | Red |  |
Polyethylene, light hydrocarbons | Natural gas, Gasoline |
| Organic | 6-8 | Bronze | Bronze | Wood, oil | Explosives | |
| Low-density organics | 8-10 | Bronze | Olive | Paper, alcohol | Drugs | |
| Mixed materials | 10-12 | Green | Lime | Glass | Jewelry, precious stones stones | |
| Light metals | 12-18 | Green | Green | Aluminum, silicon | Gunpowder, detonators | |
| Heavy metals | 18-30 | Blue | Blue | Steel | Weapons, ammunition, knives | |
| Dense metals | 30+ | Blue | Violet | Gold, silver | Smuggling | |
| Impermeable materials | – | Black | Black | Black | Lead | Disguise of dangerous objects |
Radiation safety
When working with the X-ray television installation of the ADANI BV100100DV ADN 100D introscope, much attention is paid to radiation safety issues. This affects the health of operators and the safety of the environment. The installation is designed to meet all regulations and standards to minimize exposure to x-ray radiation.
Radiation safety measures
- equipment shielding: the installation body is made of materials with high shielding properties, which prevents X-ray radiation from leaving the device, this prevents any unwanted exposure of the operator and others;
- radiation dose control: the installation provides automatic monitoring of the level of x-ray radiation, which ensures that it remains within safe values; if the permissible radiation level is exceeded, the system automatically turns off the source, preventing potential risks;
- safety for operators: all operators are trained to operate the equipment, receive instructions on how to comply with the necessary safety measures, and are provided with protective equipment if required by law;
- regular maintenance and inspections: for long-term safety, the installation undergoes regular maintenance and inspections, this allows timely identification and elimination of possible malfunctions related to radiation protection;
- certification, compliance with standards: ADANI BV100100DV complies with international and national radiation safety standards, confirmed by relevant certificates, this ensures that the installation meets the most stringent requirements in the field of radiation protection.
These measures allow the use of the ADANI BV100100DV introscope at sites with high safety requirements, providing reliable protection of both personnel and the environment from exposure to x-ray radiation.
ADANI BV100100DV X-ray television installations perform key functions in preventing threats and incidents at various sites. They help reduce risks to life and health, and reduce economic losses associated with unauthorized access or movement of hazardous substances.
The use of such installations increases public confidence and customer satisfaction with safety. The reliability and accuracy of ADANI systems reduce false calls and improve workflows by speeding up and automating screenings and inspections.
