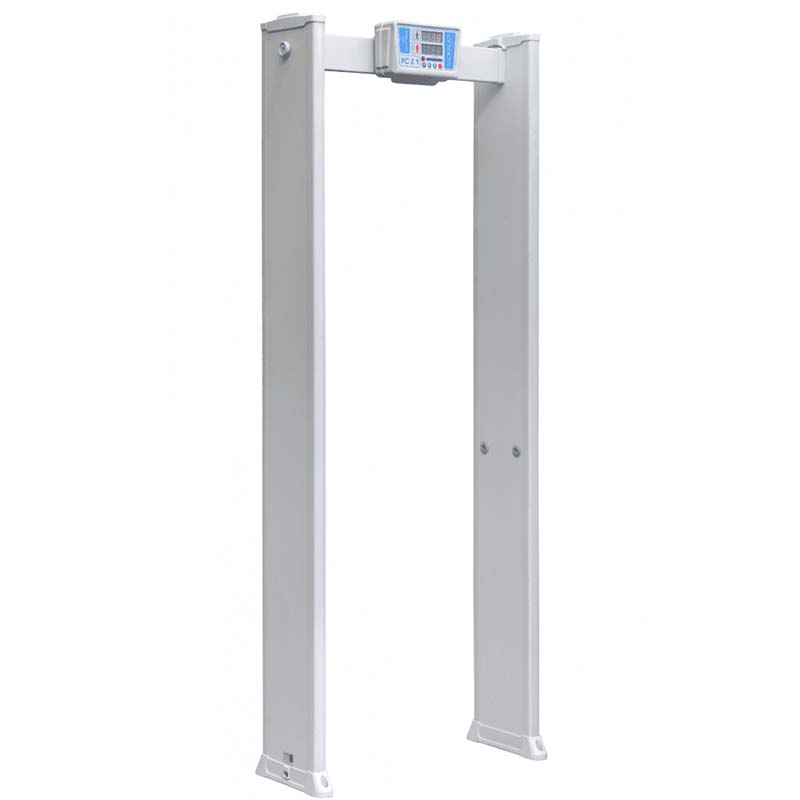

Arched metal detector BLOCKPOST PC Z 3
The arched metal detector BLOKPOST RS Z 3 is designed for work in government institutions, kindergartens, educational institutions, shopping centers, cinemas, train stations, airports, stadiums, concert halls, shops and other places that require security.
Dimensions of the metal detector
External dimensions 2160x840x350 mm
Passage dimensions 2000x750x280 mm
Net weight 22 kg
Gross weight 25 kg
Transport packaging protects the equipment from damage that may occur during delivery of the goods to the client. Ensures the preservation of the appearance of equipment during loading and unloading operations, transportation, storage, as well as attachment to vehicles.
Equipment
The following is supplied with the BLOKPOST RS Z 3 metal detector:
- power cable (5 m) – 1 pc.
- fasteners for the control unit – 2 pcs.
- fasteners for antenna panels – 2 pcs.
- set of fasteners for installation to the floor – 4 pcs.
- power cable – 1 pc.
- crossbar – 1 pc.
- instructions for use/technical passport – 1 pc.
Integration into an access control system
Thanks to the presence of an output for controlling actuators (dry contacts), metal detectors of the BLOKPOST RS Z 3 series can be integrated into an access control system in conjunction with airlock cabins, vestibules, turnstiles, tripods, and automatic doors.
When a person passes through a metal detector with a prohibited item, a light and sound indication is triggered; the information is transmitted through a wired connection to a turnstile (airlock cabin, automatic door, etc.), which blocks further movement of the person. If there are no prohibited items, the turnstile will allow access.
Operating principle
The operation of RS Z 3 metal detectors is based on the use of an electromagnetic field. One of the walls (antennas) of the device sends a signal towards another wall, which receives this signal and then returns it back. As you know, electromagnetic waves do not pass through metal objects. The device records the time the signal is reflected; when the time interval changes, the alarm device is triggered. A multi-zone metal detector has the ability to accurately locate one or more metal objects on the human body.
| Number of levels of overall sensitivity adjustment | 0-99 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | Accurate |
| Non-volatile memory for saving settings | Yes |
| Self-diagnosis test mode | Yes |
| Passage width, mm | 750 |
| Pass counter | Yes |
| Maximum pass counter value | 99999 |
| Alarm counter | Yes |
| Maximum value of alarm counters | 99999 |
| Alarm light notification | Yes |
| Presence of LEDs in antenna panels | Yes |
| Alarm sound notification | Yes |
| Number of alarm tones | 10 |
| Number of passwords to change settings | 1 |
| Four digit password | Yes |
| Throughput, person/min | 60 |
| Number of IR sensor trigger modes | 2 |
| Number of metal detectors when used in parallel (number of operating frequencies) | 50 |
| Increased noise immunity (Minimum distance between models, cm) | From 50 |
| Operating temperature range | -20°C – +55°C |
| Power consumption | ≤ 12 W |
| Electrical voltage | 110-240V/50Hz |
| Passage dimensions, mm | 2010x750x280 |
| External dimensions, mm | 2160x840x350 |
| Net weight, kg | 22 |
| Gross weight, kg | 25 |
| Average service life | 10 years |
| Outdoor use | Possible by equipping the detector with a protective cover and additional sealing |
| Modes | Auto |
