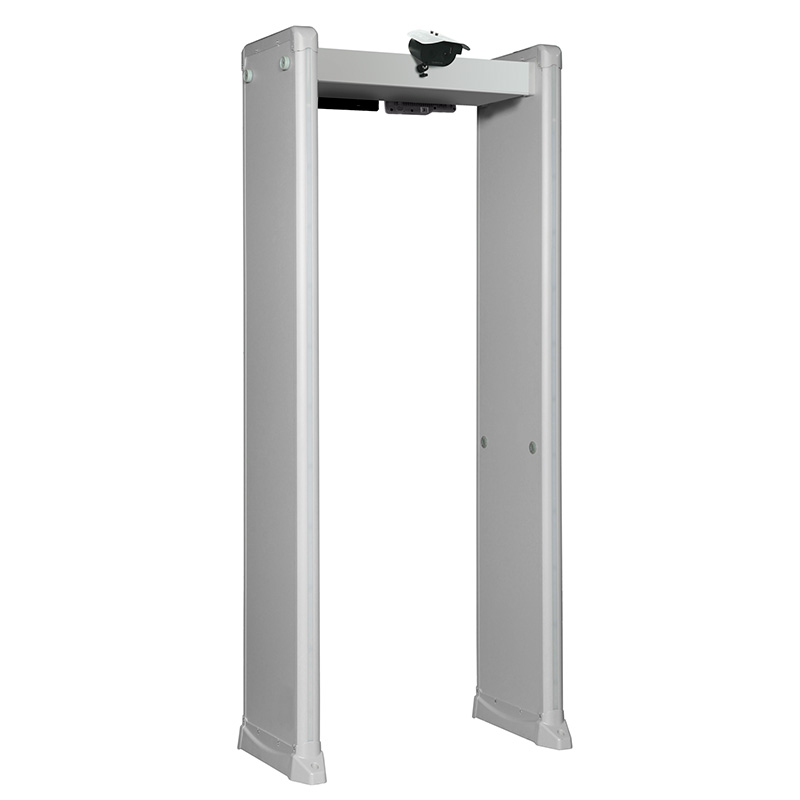

Arch metal detector PC Z 600 M with thermal imaging system Delta 100
The BLOCKPOST PC Z 600 M model with the Delta 100 thermal imaging system is very easy to use and configure. An all-new powerful microprocessor makes it easy to detect and discriminate metal. The presence of “dry contacts”, as well as three ways to connect to the network (right, left, top) have already become traditional advantages of BLOKPOST metal detector models. To count the number of people passing (at the entrance and exit) through the metal detector, a unique technology for transmitting an infrared signal is used through the use of innovative transceiver IR sensors. The presence of LED indicators located on the side antenna panels allows you to very quickly assess the location of prohibited metal objects on the human body. An accessible control unit interface, a high degree of safety, universal applicability, high sensitivity, a wide detection range, insensitivity to interference, the ability to operate for 24 hours in an intelligent mode with simultaneous sound and light alarms, high quality, efficiency and excellent technical characteristics - all these parameters are at the most modern world level. BLOCKPOST PC Z 600 M metal detectors with Delta 100 thermal imaging system are harmless to the human body. A low-intensity magnetic field is used, which is safe for people with pacemakers, hearing aids, and pregnant women.
The Delta 100 binocular thermal imaging video camera detects potentially unhealthy visitors in real time from a distance of 1 to 10 meters, in good lighting, recognizes and records their faces (including those wearing masks and glasses), and sends an alarm to security. Data from the thermal imager is directly transferred to the monitor, without the use of a server, recorder or access control system. The monitor screen displays video and IR images, as well as numerical temperature values. In this case, only those alarm events that relate to those moving through the control zone of the object are displayed.
How does this work
The face recognition function works even when the person is wearing a mask. Recording alarming events allows you not only to detect a person with a temperature, but also to record photos and videos of his passage in the field of view of the thermal imager. The open software platform allows you to integrate the BLOKPOST PC Z 600 M metal detector with the Delta 100 thermal imaging system with all existing access control systems. As a result of the integration of the BS series turnstile and the BLOKPOST PC Z 600 M metal detector with the Delta 100 thermal imaging system, it becomes possible to automatically control the turnstile.
Transport packaging protects the equipment from damage that may occur during delivery of the goods to the client. Ensures the preservation of the appearance of equipment during loading and unloading operations, transportation, storage, as well as attachment to vehicles.
Equipment
The following is supplied with the BLOKPOST RS Z 600 M metal detector:
- power cable (5 m) – 1 pc.
- adapter for the top connection of the metal detector – 1 pc.
- fasteners for the control unit and monitor – 4 pcs.
- fasteners for antenna panels – 4 pcs.
- set of fasteners for installation to the floor – 4 pcs.
- remote control for setting up the metal detector – 1 pc.
- crossbar – 2 pcs.
- thermal imaging camera BLOCKPOST Delta 100 – 1 pc.
- monitor – 1 pc.
- instructions for use/technical passport – 1 pc.
Advantages of the thermal imaging camera BLOKPOST Delta 100
When comparing the main indicators of measuring body temperature during a pandemic, the thermal imaging camera BLOKPOST Delta 100 is in the lead; it will be profitable already in the 4th month of operation. The absence of the human factor and low cost with high performance make the thermal imaging camera BLOKPOST Delta 100 a reasonable choice for any enterprise, be it a school, a medical/government institution or a large production facility with high traffic.
Functional purpose
A binocular thermal imaging camera is built into the body of the metal detector, it contains two video cameras in the infrared and visible ranges, as well as a thermal sensor module for non-medical purposes. The device measures the temperature of living objects (including in low light), recognizes and records the faces of visitors with elevated body temperature.
Connecting to a computer
The Z series BLOCKPOST models now have a unique function for monitoring, configuring and managing several hundred metal detectors using a single server. This function is necessary for transmitting and analyzing data on the number of passes, sensitivity settings, and number of alarms. Information can be received in real time from one to several hundred metal detectors.
The IRA-ENGINEERING company has developed its own software, with the help of which it is possible to control the security of such large objects as stadiums, ice palaces, concert halls, airports, train stations, etc. using multiple operators.
Also, Z series metal detectors are equipped with an SD-card-based recorder, which can be easily removed if you need to reproduce the chronology of events for any period of time the metal detector has been operating.
Integration into an access control system
Thanks to the presence of an output for controlling actuators (dry contacts), BLOKPOST PC Z 600 M metal detectors with a Delta 100 thermal imaging system can be integrated into an access control system. Metal detectors can be installed in conjunction with airlock cabins, airlocks, turnstiles, tripods, and automatic doors.
When a person passes through a metal detector with a prohibited item, a light and sound indication is triggered; the information is transmitted through a wired connection to a turnstile (airlock cabin, automatic door, etc.), which blocks further movement of the person. If there are no prohibited items, the turnstile will allow access.
Operating principle
The functioning of metal detectors is based on the use of an electromagnetic field. One of the walls (antennas) of the device sends a signal towards another wall, which receives this signal and then returns it back. As you know, magnetic waves do not pass through metal objects.
When encountering such an object located on the body of a person passing through an arched metal detector, one of the radio waves is reflected from it and returns back faster than the other waves.
The device records the time the signal is reflected and when the time interval changes, the alarm device is triggered. A multi-zone metal detector has the ability to accurately locate one or more metal objects on the human body. Thanks to this, inspection time is reduced and its accuracy and efficiency increases.
Recommended layout
A multi-zone metal detector has the ability to accurately locate one or more metal objects on the human body. Thanks to this, inspection time is reduced and its accuracy and efficiency is increased.
Areas of application
The BLOCKPOST PC Z 600 M metal detector with the Delta 100 thermal imaging system is intended for use in government and medical institutions, educational institutions, shopping centers and cinemas, train stations and airports, stadiums, concert halls, shops and other places that require ensuring the safety of people.
| External dimensions (mm) LxWxH | 2230x850x460 |
| Passage dimensions (mm) LxWxH | 2030x750x430 |
| Passage width (mm) | 750 |
| Packaging dimensions (mm) LxWxH | 2270x700x230 |
| Net weight (kg) | 44 |
| Gross weight (kg) | 52 |
| Number of independent detection zones | 6 |
| Temperature measurement error | ±0.3°C |
| Temperature measurement range | 10 m |
| Temperature measurement time | 0.5 sec |
| Detection temperature range | 27 – 40 °C |
| Light and sound indication | Yes |
| Number of levels of overall sensitivity adjustment | 100 |
| Independent sensitivity adjustment for each zone | Yes |
| Number of sensitivity adjustment levels for each zone | 400 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | accurate |
| Non-volatile memory for saving settings | Yes |
| Self-diagnosis test mode | Yes |
| Number of standard programs | 72 |
| Dust and waterproof housing coating | Yes |
| Pass counter | Yes |
| Maximum pass counter value | 99,999 |
| Alarm counter | Yes |
| Maximum value of alarm counters | 99,999 |
| Alarm light notification | Yes |
| Presence of LEDs in antenna panels | Yes |
| Alarm sound notification | Yes |
| Number of alarm tones | 99 |
| Alarm output for controlling third party equipment (dry contacts) | Yes |
| Number of passwords to change settings | 1 |
| Four digit password | Yes |
| Throughput, person/min | 60 |
| Number of IR sensor trigger modes | 4 |
| Remote control | Yes |
| Autonomous operation | yes, option |
| Number of metal detectors when used in parallel (number of operating frequencies) | 50 |
| Increased noise immunity (minimum distance between models, cm) | 50 cm |
| Operating temperature range | -20С – +45С |
| Power (W) | ≤ 12 W |
| Voltage (V) | 110-240V/50Hz |
| Average service life | 10 years |
| Guarantee | 1 year |
