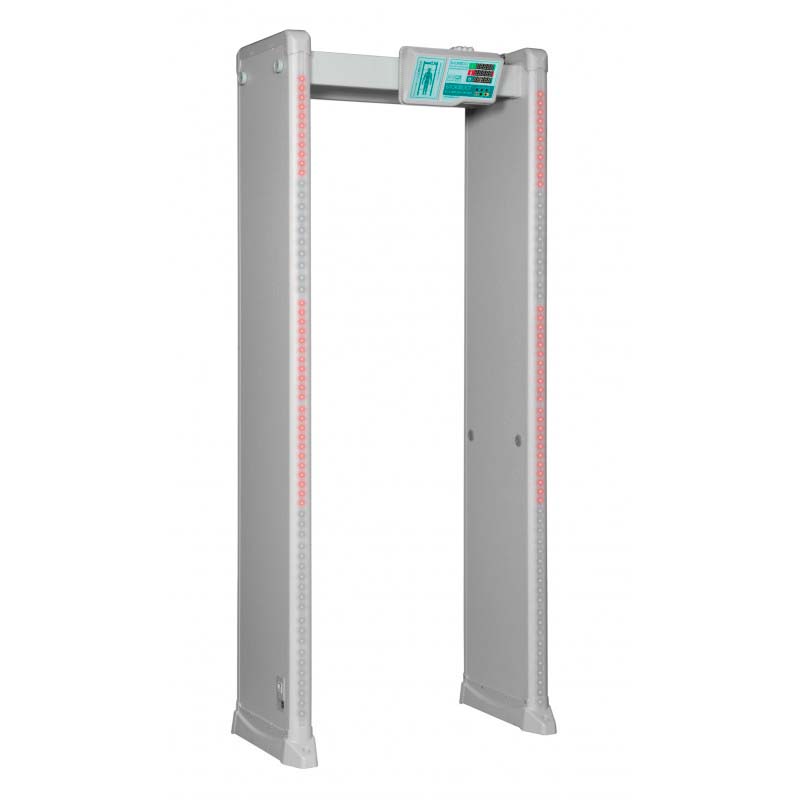

Arched metal detector BLOCKPOST PC Z 600
Metal detectors Checkpoint PCZ 600 are installed at airports, railway stations, government offices, school and preschool buildings, at the entrance to shopping centers, where large crowds of people are possible. The device provides protection against the introduction of metal objects into the territory that may be dangerous to other people.
Characteristics
The metal detector is very easy to use and set up. An all-new powerful microprocessor makes it easy to detect and discriminate metal. The software takes Z series metal detectors to a new level in security. The presence of “dry contacts”, as well as three ways to connect to the network (right, left, top) have already become traditional advantages of the Blokpost metal detector models. To count the number of people passing (entering and exiting) through the metal detector, a unique infrared signal transmission technology is used.
An accessible control unit interface, a high degree of safety, universal applicability, high sensitivity, a wide detection range, insensitivity to interference, the ability to operate for 24 hours in an intelligent mode with simultaneous sound and light alarms, high quality, efficiency and excellent technical characteristics - all these parameters are at the most modern world level. Metal detectors “Blockpost” RS Z 600 are harmless to the human body. A low-intensity magnetic field is used, which is safe for people with pacemakers, hearing aids, and pregnant women.
Equipment
The arched metal detector Checkpoint PCZ 600 is equipped with everything necessary for operation. There is no provision for purchasing additional equipment or consumables for use. The device is equipped with:
- arch crossbars;
- floor fastenings;
- mounts for the control unit;
- antenna panel mounts;
- control panel for setting up and turning on;
- adapter;
- power unit;
- instructions.
Operating principle
The device uses an electromagnetic field. The device operates on several frequencies at once, which reduces the likelihood of false alarms due to interference during radio signal transmission. Antennas and transmitters are located on the side bars of the arch. One wall sends radio signals to another wall, and then they go back. Metal blocks radio signals, so the time it takes for a signal to travel from one arch crossbar to another increases. When the signal transmission time changes, sound and light indications are triggered.
Web integration via dry contacts
Thanks to "dry contacts" the device can be integrated into an access control system. The detector can be combined with airlocks, airlocks, turnstiles, tripods, and doors. The device not only effectively and most accurately detects metal objects that a person carries in their hands or belongings, but also counts the number of people entering and leaving the building.
When prohibited metal objects are brought through the arch, sound and light indicators are activated, which signal the operator about the problem and the need to conduct an additional check.
When integrating the Checkpost PCZ 600 metal detector with automatic doors, a turnstile, a barrier, and an airlock cabin, in addition to the sound and light indicator, automatic blocking is triggered. This increases protection and stops the person from moving further. Automatic blocking is only triggered when carrying prohibited metal objects. If there are no prohibited metal objects, access remains open.
Parallel use of several devices
The PCZ 600 arched metal detector Checkpost can be used in the same building with other detectors of this type, but it is necessary to follow the recommendations regarding the distance between the devices from each other. The minimum distance is 50 cm. If detectors are placed closer to each other, interference may occur during radio signal transmission, which will lead to false alarms.
The Checkpost PCZ 600 model has a low price compared to foreign analogues, but it has several operating frequencies, so interference and false alarms are isolated cases, but the manufacturer recommends installing different frequency ranges when installing several devices in one zone.
Where to buy
The metal detector “Blockpost” 600 can be ordered from SLS-GROUP LLC. We ship orders to all regions of Russia. To protect the equipment during transportation, durable cardboard packaging with protective blocks is used. The original packaging protects the device from accidental damage during delivery to the regions. You can order an arched metal detector Checkpoint PCZ 600, find out the price and availability by phone or on the website through the sales department.
Tactical and Technical Characteristics (TTX): Arched metal detector BLOCKPOST PC Z 600
| Parameter | Meaning |
| Number of independent detection zones | 6 |
| Number of levels of overall sensitivity adjustment | 100 |
| Independent sensitivity adjustment for each zone | Availability |
| Number of sensitivity adjustment levels for each zone | 400 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | accurate |
| Non-volatile memory for saving settings | Availability |
| Self-diagnosis test mode | Availability |
| Number of standard programs | 72 |
| Pass counter | Availability |
| Maximum pass counter value | 99,999 |
| Alarm counter | Availability |
| Maximum value of alarm counters | 99,999 |
| Alarm light notification | Availability |
| Alarm sound notification | Availability |
| Number of alarm tones | 99 |
| Alarm output for controlling third party equipment (dry contacts) | Availability |
| Number of passwords to change settings | 1 |
| Bandwidth | 60 people/min |
| Number of IR sensor trigger modes | 4 |
| Remote control | Availability |
| Autonomous operation | Option |
| Number of metal detectors when used in parallel (number operating frequencies) |
50 |
| Operating temperature range | from -20ºС to +55ºС |
| Electrical voltage | 110-240V/50Hz |
| Power consumption | ≤ 12 W |
| Passage dimensions (LxWxD) | 2030 x 750 x 430 mm |
| Dimensions (LxWxD) | 2230 x 850 x 460 mm |
| Weight | 44 kg |
Delivery methods: delivery to the address, delivery by transport companies. We deliver throughout Russia. Delivery prices are calculated by sales managers. Delivery times are calculated depending on the equipment supplied and the conditions specified in the contract. Payment methods: We accept non-cash payments including VAT.
