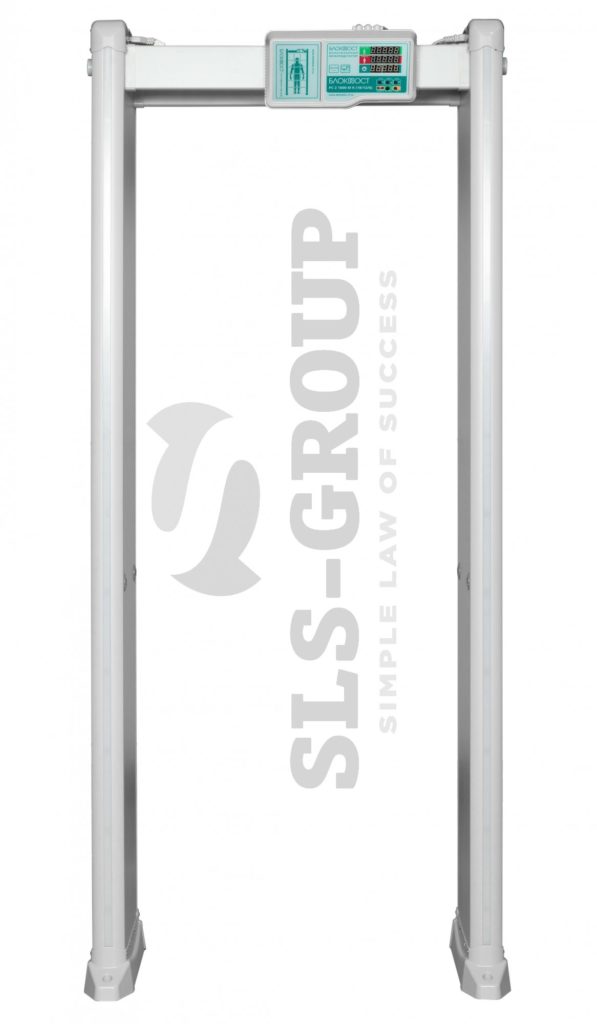

Arched metal detector BLOCKPOST PC Z 1800 M K (18|12|6)
The multi-zone detector "Blockpost 1800" is designed to detect metal objects that can be carried by a person in clothes and carry-on luggage. Metal detectors are harmless to the human body, as they use a low-intensity magnetic field, which is safe for people with pacemakers, hearing aids, and pregnant women.
Characteristics
The “Blockpost PC Z 1800” model provides the ability to connect to a computer, which greatly simplifies the operator’s work. You can control several detectors at once from one computer. Another innovation of the manufacturer is the installation of a powerful microprocessor, which requires half the time for data processing and analysis.
Improved software makes the device even more functional and safer. Another new feature is the built-in recorder. All data is recorded on the SD card.
To connect to the network, you can use one of three contacts located at the top, left or right of the arch. The detector not only accurately detects metal objects that a person carries, but also counts the number of people who pass through the arch metal detector. For counting, the technology of transmitting an IR signal through sensors is used. LEDs built into the arch allow the operator to understand exactly where a person has hidden a metal object.
Operating principle
The device uses a low-intensity magnetic field. On the side parts of the arch there are antennas that transmit signals to each other. If a person passing through the arch carries metal, the electromagnetic field is blocked, the radio wave is reflected from the metal object and goes back, after which the sensor and light indicator are activated in the place where the signal did not pass.
The Checkpoint PC Z 1800 MK has several zones of the electromagnetic field, as well as built-in antennas, so the device works much more accurately than previous models of the Z line. The presence of several zones also reduces the time spent on inspection.
Several detectors can be installed at one site at once by tuning different frequencies of radio waves. This reduces the likelihood of interference and false alarms. It is recommended to install devices at a distance of at least 50 cm from each other.
Management from a single server
For the arched metal detector Checkpoint PC Z 1800, the manufacturer has improved the software, which makes it possible to monitor several metal detectors at one site from one computer. This allows for complete control over large objects - stadiums, playgrounds, airports, concert halls, large entertainment centers. Information is transmitted in real time. All data from the metal detector is transferred to the computer - the number of alarms, the number of passes through the arch, the sensitivity threshold.
The built-in recorder makes it possible to save recordings from the metal detector. At any moment, the operator can find the desired day and period of time to restore the chronology of events.
Web integration
"Dry contacts" make it possible to integrate a metal detector into an access control system. The detector can be combined with airlocks, airlocks, turnstiles, tripods, and doors. The arched metal detector Checkpoint PC Z 1800 MK not only effectively and most accurately detects metal objects that a person carries in their hands or belongings, but also counts the number of people entering and leaving the building.
When integrated with automatic doors, turnstiles, barriers, airlock cabins, in addition to the sound and light indicator, automatic blocking is triggered. This increases protection and stops the person from moving further. Automatic blocking is only triggered when carrying prohibited metal objects. If there are no prohibited metal objects, access remains open.
Advantages:
- accessible control unit interface;
- high sensitivity;
- wide detection range;
- insensitivity to interference;
- the ability to connect several detectors to the server;
- light and sound indication.
The area of application of the “Blockpost PC Z 1800 M K” metal detectors is quite extensive: the device is used in areas with large crowds of people, in government institutions, at the entrance to shopping centers, office buildings, train stations or airports.
The metal detector comes with:
- power adapter with cable;
- fastenings;
- remote control;
- crossbars;
- instructions.
You can order the “Blockpost PC Z 1800 MK” metal detector from SLS-GROUP LLC on the website or by phone.
Tactical-Technical
Characteristics (performance characteristics): Arched metal detector BLOCKPOST PC Z 1800 M K (18|12|6)
| Parameter | Meaning |
| Number of independent detection zones | 6 – 12 – 18 |
| Number of levels of overall sensitivity adjustment | 100 |
| Independent sensitivity adjustment for each zone | Availability |
| Number of sensitivity adjustment levels for each zone | 400 |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | accurate |
| Non-volatile memory for saving settings | Availability |
| Self-diagnosis test mode | Availability |
| Number of standard programs | 72 |
| Pass counter | Availability |
| Maximum pass counter value | 99,999 |
| Alarm counter | Availability |
| Maximum value of alarm counters | 99,999 |
| Alarm light notification | Availability |
| Alarm sound notification | Availability |
| Number of alarm tones | 10 |
| Alarm output for controlling third party equipment (dry contacts) | Availability |
| Number of passwords to change settings | 1 |
| Bandwidth | 60 people/min |
| Number of IR sensor trigger modes | 4 |
| Remote control | Availability |
| Autonomous operation | Option |
| Number of metal detectors when used in parallel (number operating frequencies) |
50 |
| Increased noise immunity (Minimum distance between models) | 50 cm |
| Operating temperature range | from -20ºС to +55ºС |
| Electrical voltage | 110-240V/50Hz |
| Power consumption | ≤ 12 W |
| Passage dimensions (LxWxD) | 2030 x 750 x 430 mm |
| Dimensions (LxWxD) | 2230 x 850 x 460 mm |
| Weight | 44 kg |
