Portal monitor YANTAR-A
Stationary system for detecting fissile and radioactive materials during vehicle control.
Purpose
Automatic detection of gamma and neutron radiation sources moving through the control zone in vehicles. Radiation portal monitors are equipped with gamma and neutron registration channels and are installed at vehicle checkpoints of various purposes, configurations and capacities.
High sensitivity, reliability, proven by many years of operation in different climatic zones of the globe, ease of use and maintenance have made radiation monitors of the Yantar-A series the most popular among consumers.
Design

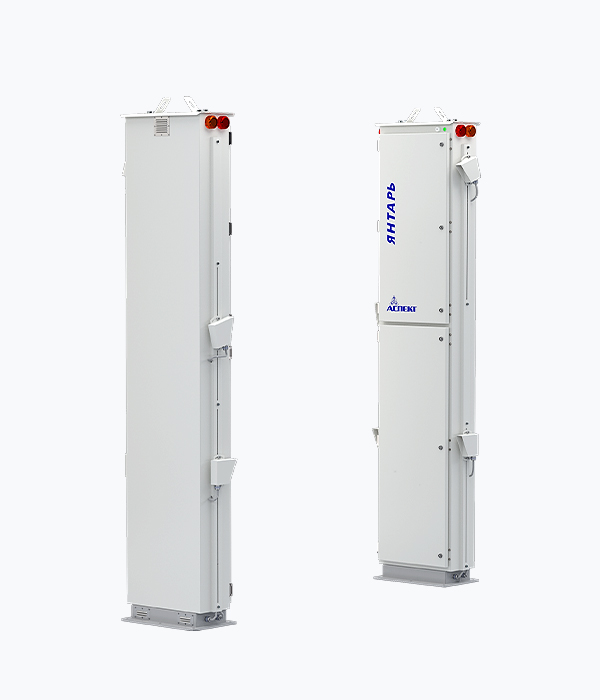

Radiation portal monitors of the Yantar-A series are made in the form of metal racks installed opposite each other along the edges of the roadway. Electronics units, gamma and neutron detectors are located inside the racks. Radiation monitors are equipped with sound and light alarms, as well as indications for diagnosing performance.
The use of lead screens for gamma detectors makes it possible to increase the efficiency of detecting gamma radiation sources.
Presence sensors ensure reliable detection of a vehicle in the control zone even in difficult weather conditions.
The design of racks, detectors and electronics units ensures their protection from environmental influences, including high humidity and salt fog.
Radiation monitors provide data transfer to a control panel or to a computer with specialized software installed.
The Yantar-A series of radiation monitors also includes models with increased sensitivity of gamma and neutron radiation detectors and an enlarged lead screen.
The selection of a specific model of the Yantar-A radiation monitor, as well as the approval of non-standard solutions, including single-rack versions, is carried out taking into account the characteristics of installation sites and the requirements for minimum detectable quantities of radioactive and nuclear materials.
The values in the “Characteristics” section are given for a two-post radiation monitor with gamma and neutron channels “Yantar-1A”.
Peculiarities
- Operating mode – continuous, automatic
- Sound and light signaling of an alarm event
- Customizable response thresholds for each registration channel
- Possibilities for expansion and connection of external devices
- Generation of a “dry contact” during an alarm event
- Automatic registration of events in a non-volatile archive
- Storing and outputting archive data to external devices (if connected)
- Built-in automatic self-diagnosis system
- Access to system parameters via RS-485 interface (Ethernet optional)
- Generation of video information about the controlled object (when connecting video surveillance kits)
- Service life 12 years
| Registration channels | gamma and neutron |
| Gamma detectors | plastic scintillators |
| Neutron detectors | meters based on Ne-3 |
| Detection thresholds (detection with a probability of at least 0.5 with a confidence probability of 0.95) for a control zone width of 6 m and an object speed of up to 15 km/h | 340 kBq (Ba-133) 300 kBq (Cs-137) 150 kBq (Co-60) 14000 neutron/s (Cf-252) |
| False positive rate | no more than 0.001 |
| Degrees of protection | IP54 |
| terms of Use | -50 to +50 °C, 95% |
| Dimensions | (3057×795×370) mm (1 rack) |
| Weight | no more than 350 kg (1 rack) |
| Power supply | (85-265) V, (47-63) Hz, max. 70 VA |
| Battery life from built-in battery | at least 10 hours |
| Installation location | outdoors |
| Type of radiation monitors | transport |
| Object of control | vehicles |
