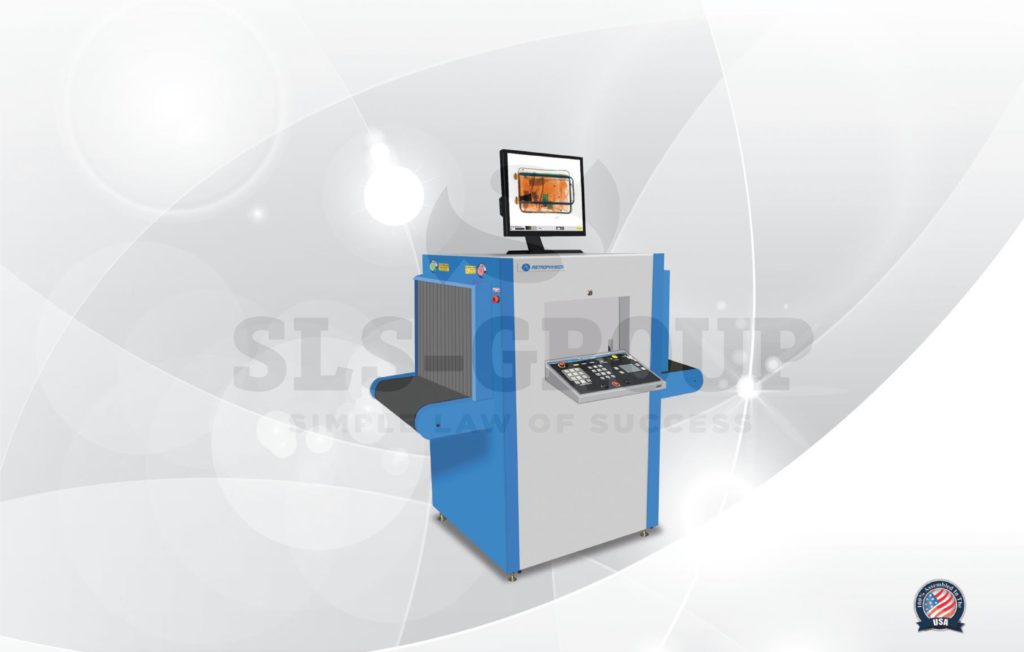

X-ray television installation (introscope) Astrophysics “XIS 6040”
The X-ray television installation is designed for inspection of small objects in order to detect hidden metal objects. The Astrophysicsxis 6040 introscope is used in post offices, shopping centers, airports for checking hand luggage, at train stations, and in prisons.
Design and functional features
The Astrophysics XIS 6040 can be moved anywhere and can also be used in small spaces with limited space. It is equipped with a built-in monitor on which the image is displayed in real time in color. A high-resolution device speeds up the operator’s work and eliminates errors when identifying objects. The tunnel size is 60x40 cm.
Peculiarities:
- ensuring continuous inspection in real time;
- compact dimensions;
- rapid installation of temporary inspection points;
- six-color image;
- a wide range of options as standard
- Russian keyboard;
- adapted software.
Performance characteristics (TTX):
| Dimensions | |
| Tunnel size | 600 x 400 mm |
| Overall dimensions, no more | 1412 x 846 x 1245 mm |
| Packaging dimensions | 1588 x 965 x 1650 mm |
| Weight, no more | 370 kg |
| Package weight | 490 kg |
| Conveyor | |
| Maximum distributed load on
conveyor | 165 kg |
| Conveyor height | 716 mm |
| Conveyor belt speed | 0.23 m/s |
| X-ray source | |
| Anode voltage | 160 kV (operating 150 kV) |
| Source current | 0.6 mA |
| Radiation direction | diagonally up |
| Cooling system | oil bath with air (convection)
cooling |
| Film safety | up to ISO 1600 (33 DIN) |
| X-ray receiver | |
| Type | L-shaped array |
| Dual energy technology | availability |
| Gray levels | 4096 |
| Detective ability for copper
wire | 0.08 mm (40 AWG) – 0.10 mm (38 AWG) |
| Penetration ability on steel | 39 – 37 mm |
| Spatial resolution, line pairs per
mm | 1.0 mm |
| Visible contrast levels, not less | 24 |
| Operator workstation parameters | |
| Monitor | LCD monitor 19”
1280 x 1024, 24-bit |
| Image archive | 150,000 images |
| Power supply | |
| Voltage | 220V (±10%), 50 Hz, 10 A max |
| Climatic conditions | |
| Workers: | |
| – ambient temperature | 0° – +40 °С |
| – relative humidity | up to 95%, no condensation |
| During storage: | |
| – ambient temperature | -20° – +60 °С |
| – relative humidity | up to 95%, no condensation |
