Types of introscopes
Page navigation:
Classification of inspection X-ray equipment
Types of X-ray Baggage Screening Units
Personnel screening equipment
Inspection and inspection complexes
In security areasairports, train stations, public places, shopping centers install special devices that generate X-ray radiation. The purpose of such devices is to prevent prohibited or dangerous items from being brought into the territory that could cause harm or damage to others. Such devices include X-ray television installations, which are worth talking about in more detail, examining the types of introscopes, purpose and characteristics.
Table of contents:
- purpose of introscopes;
- classification of the customs union;
- installations for inspection of baggage and baggage;
- equipment for screening people;
- inspection and inspection complexes (IDC).
Purpose of introscopes
X-ray television installationsused to detect and identify metal objects, explosives, and weapons. There are devicesportable, stationary, mobile. They can be carried or used in only one location.
Before the advent of introscopes, the inspection procedure took a long time. The inspection was carried out by employeessecurity servicestactile method or usingmetal detector frame. The procedure caused a lot of trouble both for employees due to the length of time and for passengers, who were uncomfortable with strangers touching them or rummaging through their things.
The introscope reduces inspection time by two to three times, while simultaneously increasing the accuracy of the inspection. The device generates X-rays that can distinguish metals, weapons, explosives even in the thickness of clothing or in hidden hiding places. X-ray television equipment is the only method of accurate and objective inspection of baggage and passengers, increasing the safety of citizens.
The operating principle of the device is based on the use of X-rays. The devices use through or reflected beams. Reflected ones are used less frequently because they scan the object from only one side. Through beams penetrate an object and scan it from all sides.
Each object and purpose has its own devices, so it is worth understanding what types of introscopes there are, where and how they are used.
Classification of inspection X-ray equipment
This is not the only, but most often used categorizationX-ray television installations. This classification was accepted, approved and declared by a decision of the Customs Union Commission. The provisions were included in the relevant document and approved by the Government of the country.
According to the classification of the Customs Union, introscopes are divided into two large groups:
- devices for inspection of baggage, goods, baggage, cargo;
- inspection type devices for checking people.
Next comes a more detailed categorization within each large group. Baggage inspection devices consist of one or more X-ray tubes and operate at voltages up to 300 kV.This subgroup includes:
- stationary introscopes with a moving conveyor belt;
- stationary introscopes without a conveyor;
- mobile devices for testing anywhere, without a source of ionizing radiation.
Inspection-type devices for checking people consist of one or more accelerators, power up to 10 MeV.These include:
Types of X-ray Baggage Screening Units
Stationary and mobile introscopes for checking luggage, cargo, hand luggage, and postal shipments are found everywhere. Externally, the devices are a closed chamber with or without a conveyor belt.
The chamber size and conveyor height depend on the manufacturer. Standard parameters from 500x300 mm to 1800x1800 mm. Train stations, airports, stations are equippedmedium-sized tunnels. Designed for warehouses or transport companies where large cargo arriveslarge tunnels.
Small and mobile devices are used forhand luggage checksor postal shipments.
The inspection takes little time and does not require human participation. It is enough to place luggage or cargo on the conveyor and meet it on the other side. If prohibited items are detected, the device will give an appropriate signal. The progress and results of the inspection are monitored by an operator located in a separate room. The projection of the contents of the cargo is transmitted to him on the monitor screen.
Personnel screening equipment
A separate category is equipment for screening people. Such introscopes can be found at the entrance of a train station, airport, large shopping complexes, government buildings, and many educational institutions.
The task of X-ray television installations for searching people is to detect dangerous, prohibited objects on the body or under clothing.Metal detectorsare also included in this category and are actively used together with introscopes or separately.
The X-rays that the devices use are completely safe for humans. The operator also monitors the progress of the inspection remotely, analyzing items through the monitor. Despite the safety of modern introscopes for screening people, children, pregnant women and people who have serious health limitations, such as an artificial heart, are exempt from screening.
Inspection and inspection complexes

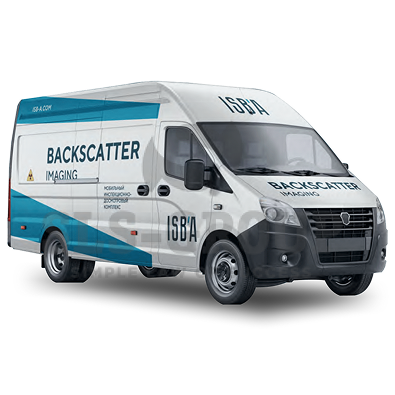

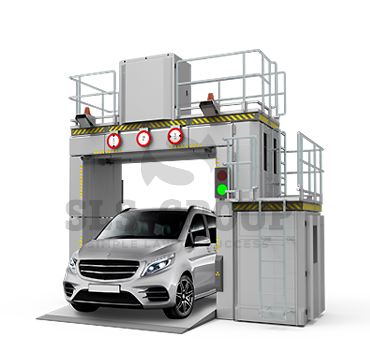

To check large cargo, containers, and transport, IDK is used. This is a separate group of devices, which represents entire inspection complexes. They differ from standard introscopes in size and penetrating ability.
The IDK can be found at customs. These are highly sensitive devices that allow you to inspect cargo without opening containers or vehicles. Identification is based on the type of materials, and the operator also monitors the progress of the inspection through the monitor.
You can order introscopes from SLS-Group LLC with delivery, installation and subsequent maintenance. The website presents different types of X-ray television installations; company managers can help with the choice.
